Walk onto any frozen food production floor and you'll see the same pattern repeated. Fresh produce arrives at peak condition — firm, colorful, full of juice. It goes into the freezer. And what comes out the other side is, too often, a shadow of what went in. Texture degrades. Color fades. Flavor compounds break down. The product still freezes, yes. But "frozen" and "properly frozen" are two very different outcomes.
Fluidized bed IQF technology closes that gap. The mechanism is elegant in its simplicity: instead of laying product on a static belt or stacking it in trays, the system drives pressurized cold air upward through a perforated conveyor. At a precisely calibrated velocity, that air current overcomes gravity. Each piece — every pea, every berry, every diced cube — lifts off the belt surface and hangs suspended in the freezing airstream. In this state, the product behaves almost like a liquid: pieces drift, tumble, and rotate independently, never resting on one surface for more than a moment.
The cold air hitting those suspended pieces runs between -35°C and -40°C. Because every surface is exposed simultaneously rather than sequentially, core temperature plummets to -18°C in roughly 10 to 30 minutes depending on piece density. For perspective, a cold room might need half a day to reach the same core temperature. A blast freezer cuts that to a few hours. Fluidized bed IQF compresses it to minutes — and that compression is where everything changes.
Here is why speed is not just a throughput metric. Between 0°C and -5°C, the water inside food cells enters its most destructive phase. Ice crystals begin to nucleate and grow. Given enough time, those crystals expand well beyond the cell's interior, puncturing membranes and rupturing walls. When the product eventually thaws, those broken cells have no structural integrity left. Moisture floods out. Nutrients leach into the pooling liquid. Texture collapses into mush. What was once a crisp green bean or a juicy strawberry becomes, essentially, flavored water with fibrous debris.
Fluidized bed IQF denies those crystals the time they need to grow destructive. The temperature drop happens so fast that water freezes in place as countless microscopic crystals — each one small enough to remain inside the cell without damaging its membrane. The cellular architecture stays intact. Thaw the product later and it releases minimal liquid, retains its original firmness, and keeps the color and flavor profile that processors and consumers expect. Side by side, the contrast is unmistakable: a slow-frozen strawberry bleeds red juice into the bag; an IQF-frozen strawberry holds its shape, its seeds, and its structural integrity.
None of this is possible if pieces are stacked, piled, or resting on a belt. The fluidized state is what makes simultaneous multi-surface freezing a reality. Every piece gets the same treatment. No piece is shielded. No piece is buried. That is the foundational advantage — and it ripples through every other benefit that follows.
Reach into a bag of conventionally frozen vegetables and you know what you'll find before your hand even goes in. A solid mass. Pieces fused together by ice bridges that formed during the freezing process. Breaking them apart requires force — a hammer, a knife, or the patience to wait for partial thawing. And once you've hacked off what you need, the remainder sits there thawing, degrading, waiting to be refrozen into an even worse state.
Clumping is not a minor inconvenience. It is a quality failure with real commercial consequences. When pieces freeze together, the surfaces in contact never receive proper airflow. They freeze later, freeze unevenly, and often retain moisture that becomes the glue holding the block together. Restaurants can't portion accurately. Food manufacturers can't dose consistently. Retail customers open the bag and find a brick instead of individual pieces — and that first impression shapes their entire perception of your brand.
A fluidized bed IQF freezer solves clumping before it can start. The upward air current physically separates pieces from one another throughout the critical freezing window. While suspended, each piece tumbles independently. Its outer crust freezes while it is still isolated from neighboring pieces. By the time it exits the freezing zone and comes to rest on the discharge belt, its surface is already solidly frozen. There is no sticky, semi-frozen exterior to form ice bridges. Pieces pour freely. They measure accurately. They look like what the customer paid for.
The downstream benefits are immediate. Portion control becomes trivial — a chef can scoop exactly 150 grams of IQF corn kernels without guessing, chopping, or waiting. A ready-meal factory can dispense precise quantities into each tray with automated equipment, reducing overfill waste and ensuring consistent plate presentation. Every piece is identical in its frozen state, which means every package is consistent in weight and appearance.
There is also a physical protection benefit that gets overlooked. In a conventional freezer, product at the bottom of a tray or pile supports the full weight of everything above it. Soft fruits crush. Delicate seafood deforms. Fragile vegetable pieces break. In a fluidized bed, nothing bears weight. The air current supports every piece equally. Breakage rates drop. Deformation disappears. The percentage of product that qualifies as Grade-A — the grade that commands premium pricing — rises measurably.
Packaging lines run more efficiently too. Individual IQF pieces flow through filling equipment with consistent density and predictable behavior. Clumped product jams machines, causes uneven fills, and forces operators to stop and clear blockages. Free-flowing IQF product minimizes downtime, reduces packaging material waste from overfilled bags, and lets the line run at its designed speed.
Finally, there is shelf life. A block of clumped product almost always contains some pieces that were under-frozen at the center of the mass. Those pieces continue to degrade slowly during storage — enzymatic reactions crawl forward, quality erodes invisibly. When the block is eventually broken apart, the damage is already done. Individual IQF pieces, all uniformly brought to -18°C, age at the same predictable rate. For exporters shipping across oceans or distributors managing long inventory cycles, that uniformity translates directly into fewer customer complaints and fewer rejected shipments.
The principle is straightforward: when every piece is frozen as an individual unit, every piece meets the standard. There are no hidden weak spots in the batch. No under-frozen pieces camouflaged inside a block. No quality surprises waiting for the end consumer. That consistency is what separates commodity frozen food from premium frozen food — and fluidized bed IQF is the technology that makes it achievable at industrial scale.
A freezer purchase is rarely decided on freezing quality alone. The finance team wants to know about payback period. The plant manager wants throughput numbers. The quality manager wants compliance documentation. The owner wants to know what happens to the bottom line. A fluidized bed IQF freezer answers all of those questions — but some of the most compelling answers lie in costs that don't appear on a standard equipment spec sheet.
Start with the most visible metric: production continuity. Batch-style freezers operate in cycles — load, freeze, unload, repeat. Each cycle has dead time between batches where no product is moving. Labor is tied up in loading and unloading. A fluidized bed IQF freezer runs as a continuous system. Product enters at the infeed, travels through the freezing zone, and discharges at the other end without interruption. There are no batch cycles. No idle periods. One operator can monitor the entire line. For a plant running two or three shifts, that continuous operation converts directly into higher daily throughput and lower labor cost per kilogram produced.
Energy consumption deserves a closer look than it usually gets. It is true that fluidized bed freezers move a lot of air — the fans that create the fluidizing current draw real power. But measured per kilogram of finished product, the energy equation typically favors fluidized bed IQF over blast freezing, and for specific reasons. Continuous operation means no energy wasted cooling down and warming up between batches. Rapid freezing means less total refrigeration time per kilogram. Modern systems pair variable-speed compressors with variable-speed fans, so when product load drops — during a shift change, a product transition, or a slow production period — the system automatically reduces output instead of running flat-out regardless of demand. The evaporator and duct geometry are engineered to deliver cold air directly through the product bed with minimal thermal loss. The net result: lower kilowatt-hours per kilogram than most processors expect.
Yield is where the hidden costs really add up. Every processor knows that product loses weight during freezing — but few track exactly how much, or what it costs. In conventional slow freezing, dehydration can account for 2% to 5% of total product weight. That moisture doesn't just disappear; it migrates to the coldest surfaces in the freezer, building up as frost that eventually requires defrosting. The product itself develops freezer burn on exposed surfaces, discoloration, and textural degradation. Fluidized bed IQF minimizes this loss because product surfaces freeze rapidly, sealing in moisture before it can evaporate. The yield difference alone — say, from 96% to 98.5% — can represent tens of thousands of dollars in recovered product value over a year of operation. Add in the higher percentage of Grade-A product from reduced breakage, and the yield argument becomes one of the strongest in the equipment's favor.
Hygiene and cleaning represent another often-underestimated cost center. Food processing equipment must be cleaned thoroughly and frequently — sometimes daily, sometimes between every product changeover. Equipment that is hard to clean costs more in labor, more in cleaning chemicals, and more in downtime. Fluidized bed IQF freezers are designed with this reality built in. Every food-contact surface uses food-grade stainless steel — smooth, non-porous, corrosion-resistant. Interior surfaces are sloped to drain. Corners are rounded to eliminate residue traps. Belts are designed for removal or in-place cleaning. CIP (Clean-in-Place) systems are available for fully automated wash cycles. The time saved on cleaning — and the reduced risk of contamination from inaccessible residue — directly supports HACCP, ISO 22000, and BRC compliance requirements.
Intelligent process control is the layer that ties everything together. A modern fluidized bed IQF freezer is not a mechanical box with a thermostat. It is a sensor-rich system that monitors air temperature at multiple points, product surface temperature at infeed and discharge, and — critically — product core temperature as it exits the freezer. When any parameter drifts from the target curve, the controller responds automatically: adjusting refrigeration capacity, fan speed, or belt dwell time to bring the process back into spec. Every reading is time-stamped and logged, creating a complete thermal record for every batch. That record is not just data for its own sake. It is verifiable proof for HACCP audits. It is evidence when a customer questions a quality issue. It is the raw material for continuous process improvement — identifying optimal settings for each product, seasonal adjustments, and energy-saving opportunities that would otherwise remain invisible.
Capacity scalability matters for growing businesses. A fluidized bed IQF freezer is not a one-size-fits-all proposition. Systems are available from 500 kg/h for specialty and pilot operations up to 10,000 kg/h and beyond for large industrial producers. Modular designs allow for future expansion without replacing the entire system. And because the fluidization principle works across a broad range of product categories — berries, diced fruit, peas, corn, carrots, beans, seafood — a single freezer can serve multiple product lines, spreading the capital investment across more revenue streams.
The business case is not built on any single metric. It is the cumulative effect: continuous production that lowers labor cost per kilogram, energy-efficient design that reduces utility bills, higher yield that recovers lost product value, hygienic construction that cuts cleaning time and compliance risk, intelligent control that provides data and peace of mind, and scalable capacity that grows with the business. Add it all up and the conclusion is clear: a fluidized bed IQF freezer is not just a better freezing method. It is a better operational investment.
Q1: Can you explain what a fluidized bed IQF freezer actually does?
A: At its core, a fluidized bed IQF freezer is a continuous freezing system that suspends food pieces in a vertical column of high-velocity cold air. The "IQF" stands for Individually Quick Frozen, and the "fluidized bed" describes the physical state where product pieces float and tumble in the airstream rather than resting on a conveyor. Cold air at -35°C to -40°C is pushed upward through a perforated belt at a calibrated speed, lifting each piece so that freezing air contacts every surface simultaneously. Most products reach a -18°C core temperature in 10 to 30 minutes. The result is individually frozen pieces with minimal cellular damage, no clumping, and superior retention of texture, color, and nutrition.
Q2: Which food products work best in this type of freezer?

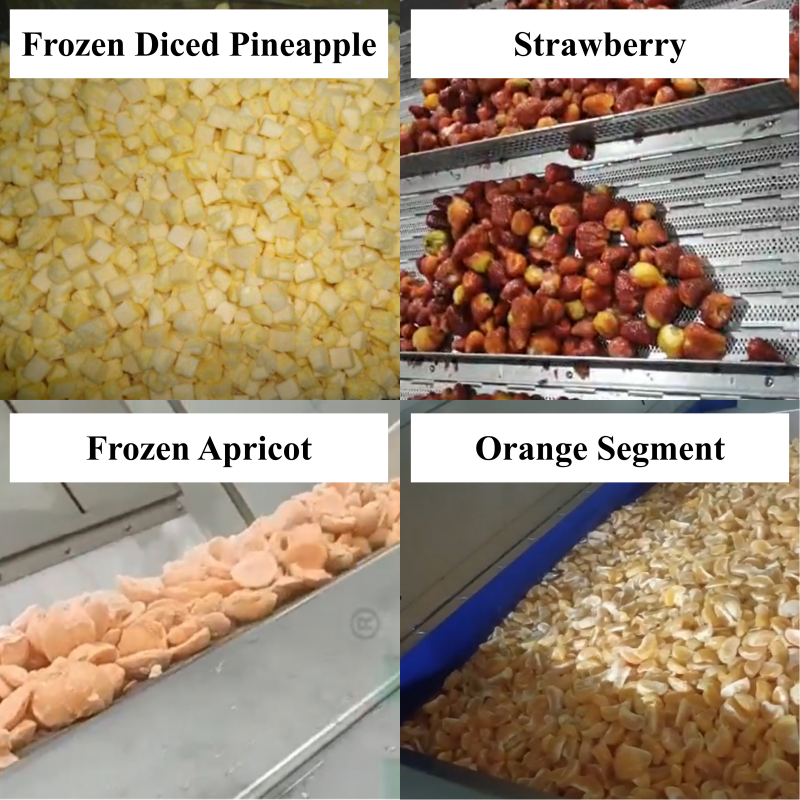

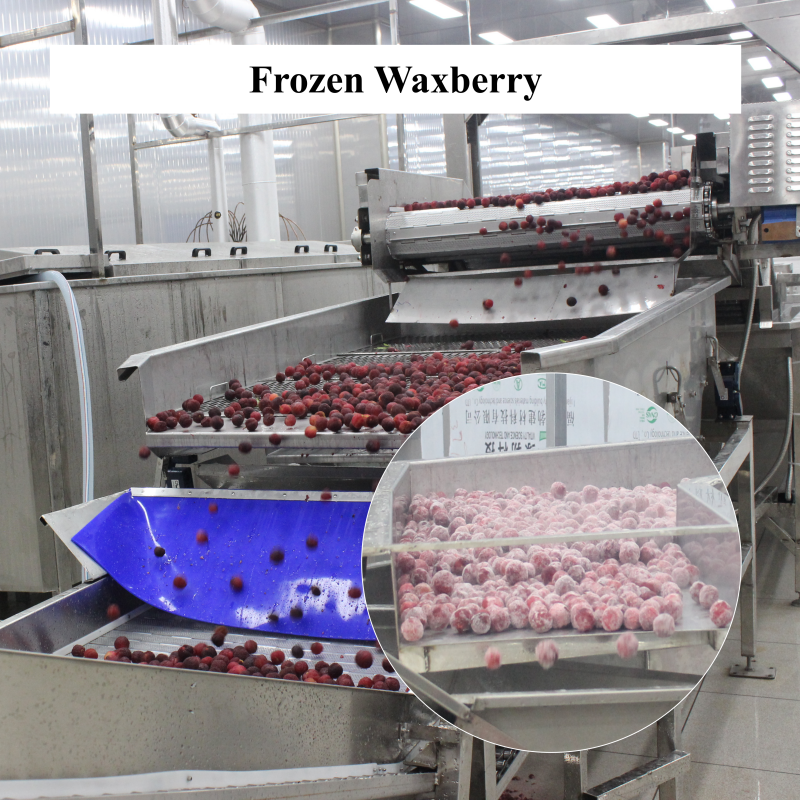

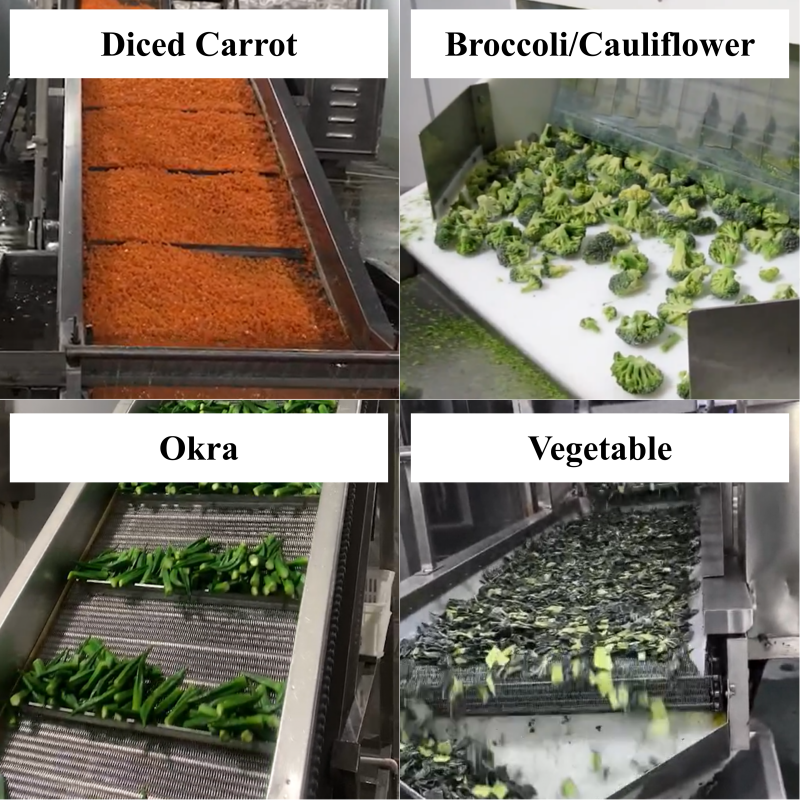

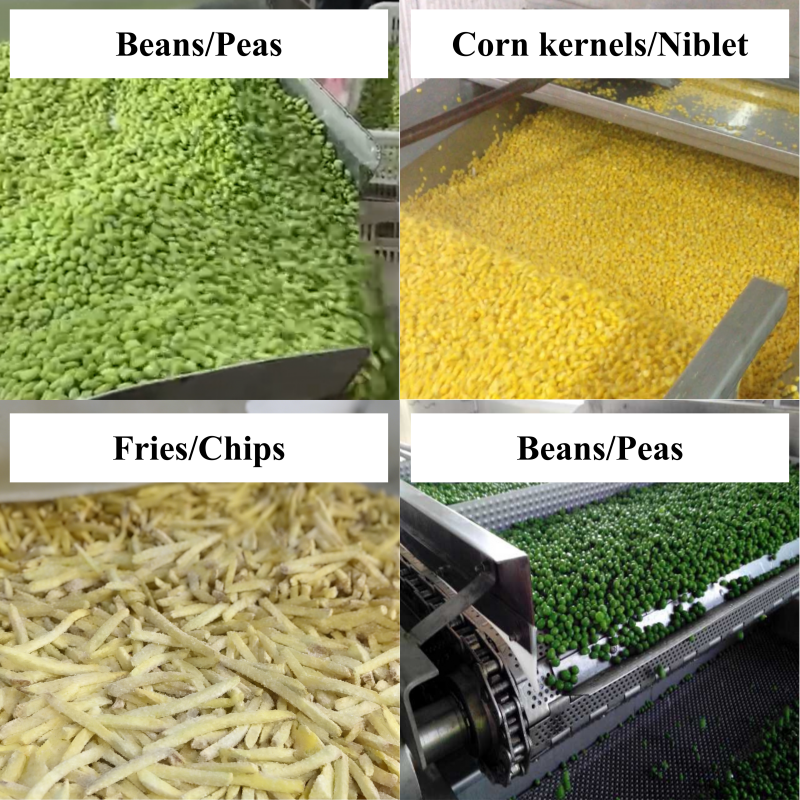

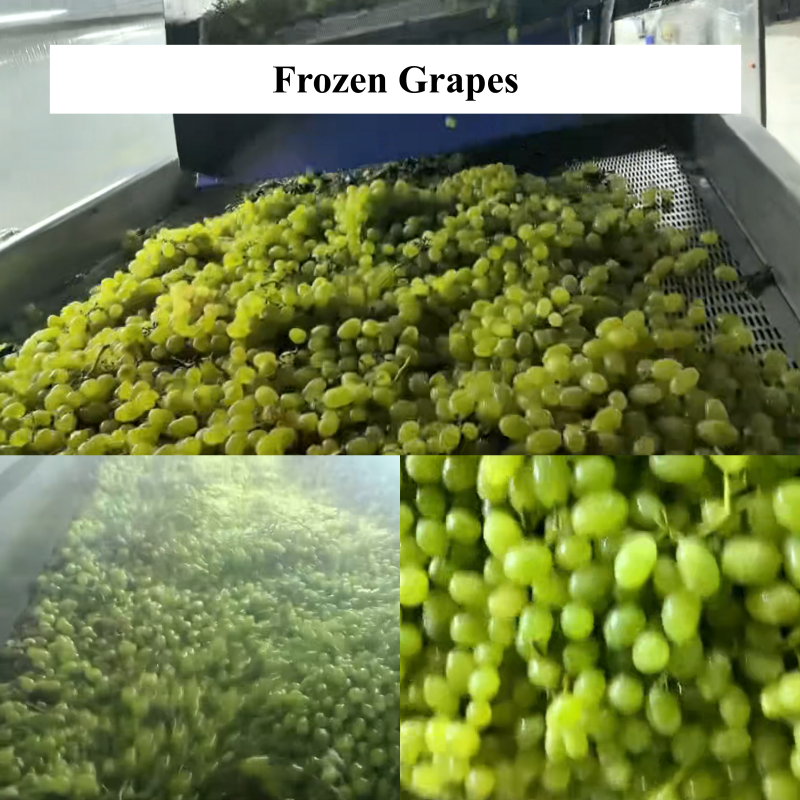

A: Fluidized bed IQF freezers excel with small, relatively uniform pieces that can be lifted by the air current. The product range includes berries (blueberries, raspberries, blackberries, strawberry halves), diced or chunked fruits (mango, pineapple, peach, apple, melon), vegetables (green peas, sweet corn, diced carrots, cut green beans, edamame, bell pepper cubes), and certain seafood items (shrimp, scallops, small fish portions). The key criterion is that individual pieces are small and regular enough to fluidize effectively. Products that are very large, highly irregular, or sticky may require a different IQF configuration — we offer alternative freezer designs for those cases. Our standard industrial models cover capacities from 500 kg/h to 10,000 kg/h, all with full food-grade stainless steel construction.
Q3: Why don't the pieces stick together in a fluidized bed freezer?
A: Clumping happens when product surfaces are still soft or moist while pieces are in contact — the moisture freezes and forms ice bridges that weld pieces together. In a fluidized bed system, the upward air current keeps pieces physically separated from each other during the entire critical freezing phase. Each piece tumbles independently in the airstream, and its outer surface freezes while it is still isolated. By the time pieces exit the freezer and accumulate on the discharge belt, their surfaces are already solidly frozen and cannot bond to neighboring pieces. This is why IQF product pours freely from the bag — no blocks, no clumps, no hammer required to break it apart.
Q4: How long does the freezing process take, and what temperatures are involved?
A: The freezing cycle depends on the product's size, density, and incoming temperature, but most fruits and vegetables complete the process in 10 to 30 minutes. The system circulates cold air at -35°C to -40°C through the perforated belt, and product is discharged once its core reaches -18°C. The system is fully adjustable: delicate items like berries run at lower air velocities to prevent physical damage, while denser products like diced carrots may need extended dwell time to ensure complete freezing through the center. The intelligent controller manages these parameters automatically based on the product recipe loaded for each production run.
Q5: Is a fluidized bed freezer more energy-efficient than a conventional blast freezer?
A: Measured per kilogram of finished product, fluidized bed IQF freezers typically match or beat the energy efficiency of conventional blast freezers, despite the power required for fluidizing fans. The advantages come from several factors: continuous operation eliminates the energy waste of cooling down and warming up between batch cycles; rapid freezing reduces the total refrigeration time required per kilogram; variable-speed compressors and fans automatically reduce output during low-load periods instead of running at full capacity regardless of demand; and the duct and evaporator design minimizes thermal loss by directing cold air precisely through the product bed. Actual energy consumption varies by product, capacity, and operating conditions, and we provide site-specific energy estimates with every quotation.
Q6: What certifications and documentation come with the equipment?
A: Our fluidized bed IQF freezers are manufactured in an ISO 9001 certified facility and carry CE certification. All food-contact surfaces are constructed from food-grade stainless steel. Each shipment includes a comprehensive documentation package: operation and maintenance manuals, electrical schematics, material certificates for food-contact components, and the CE Declaration of Conformity. The equipment's hygienic design — including sloped drainage surfaces, rounded corners, CIP compatibility, and food-grade construction — supports processors in achieving and maintaining HACCP, ISO 22000, BRC, and similar food safety management certifications. OEM customization is available for clients with specific requirements. We also offer installation supervision, commissioning support, and operator training as part of our standard service package.
Freezing is the easy part. Freezing well — so that every piece retains the texture, flavor, and nutritional value it had when it was fresh — that is where the real challenge lies.
A fluidized bed IQF freezer doesn't just lower product temperature. It preserves quality at the cellular level, eliminates clumping, reduces product loss, and gives you the data to prove every batch met your standard. For processors who measure success not by throughput alone but by what their customers experience when they open the bag, it is the difference between acceptable and exceptional.
Tell us what you're freezing and how much you need to produce. We'll configure the right fluidized bed IQF system for your line and arrange a product freezing trial — so you can see the quality difference for yourself before making a commitment.
