Efficient Spiral Quick Freezer Solutions | Compact & High-Capacity
Shaoxing Jiesheng Food Machine Technology (Wuye Machinery) presents the ultimate solution for high-capacity freezing in limited footprints. With nearly 30 years of engineering heritage and over 800 global projects, our Spiral Quick Freezer is the preferred choice for food processors looking to maximize yield while minimizing floor space usage.
Below, we detail the operational mechanics of our equipment, followed by our advanced technical specifications and hygiene standards.

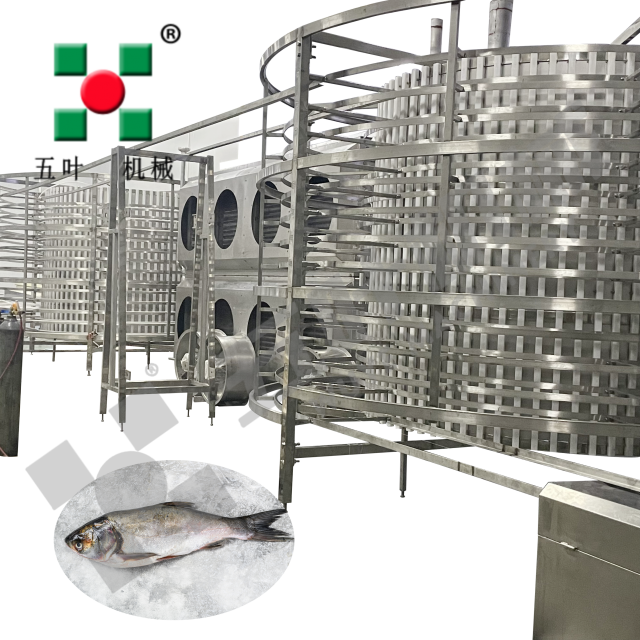

Spiral Quick-Freezing Machine: The Perfect Fusion of Space Utilization and Freezing Efficiency
In limited spaces, the spiral quick-freezing machine achieves high-efficiency deep freezing and stands as an outstanding combination of space utilization and freezing efficiency. It adopts a unique spiral lifting and conveying method, making full use of factory building height in the vertical direction, and provides an ideal solution for food processing plants with limited floor space yet pursuing high-standard freezing results. This equipment can be perfectly integrated into your continuous production line to achieve stable and high-quality quick freezing.
Core Advantages
Vertical Design for Significant Floor Space Savings
Breaking through the limitations of traditional horizontal layouts, the spiral structure can save more than 50% of ground space under the same freezing capacity. It allows for more flexible factory layout planning, making it especially suitable for plants with limited space or those looking to optimize spatial arrangements.
-30℃ Deep Freezing for Uniform and Efficient Freshness Locking
Even in a compact space, it can still create a powerful freezing environment of -30℃ or below. Products pass through the freezing zone at a constant and gentle speed on the spiral track, ensuring that cold air wraps every part evenly. This achieves fast and thorough deep freezing, excellently preserving the quality of ingredients.
Continuous Production with Stable and Reliable Operation
It supports seamless connection with front-end and back-end production lines to realize uninterrupted continuous operation. The conveying process is stable, making it particularly suitable for handling fragile or irregularly shaped products. The robust structural design ensures the equipment’s reliability and stability during long-term operation.
Flexible Production Capacity to Meet Diverse Needs
From small and medium-sized production lines to large-scale factories, we offer configuration options with different spiral diameters and layers according to your actual production capacity requirements, flexibly matching your production scale and growth plans.
Applicable Scenarios
It is ideal for processing a wide range of products, including prepared foods, meat and poultry products, aquatic products, pastries, ice cream, prepared dishes, and various items requiring tray quick-freezing.
Advanced Technology & Hygiene Standards
To dominate in the competitive food industry, equipment must go beyond basic freezing. Our Spiral Freezers integrate cutting-edge sanitation designs and smart automation, addressing the critical pain points of modern food processing: hygiene, energy costs, and product yield.
Superior Sanitary Design & Food Safety
Food safety is non-negotiable. Our design philosophy centers on minimizing bacterial harborage and simplifying the cleaning process ("Clean-in-Place" readiness).
Full Stainless Steel Construction: The entire structure, including the frame, and conveyor belt, is manufactured using high-grade SUS304 Stainless Steel. This ensures resistance to corrosion from salt, moisture, and harsh cleaning chemicals.
Accessible & Open Structure: Unlike enclosed designs that hide dirt, our accessible design allows cleaning crews to reach every angle of the evaporator and spiral tiers. The sloped floor design ensures efficient water drainage during washdowns, preventing standing water and bacterial growth.

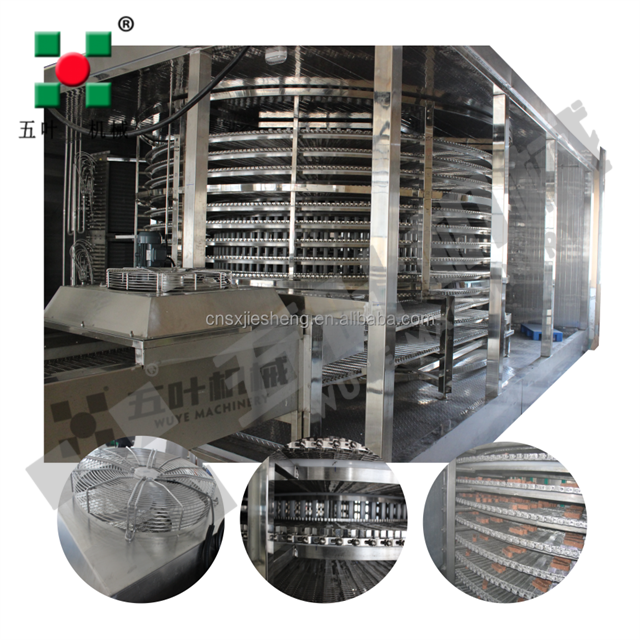

Low-Tension Drive System for Reliability
Maintenance downtime kills productivity. Shaoxing Jiesheng Food Machine Technology (Wuye Machinery) utilizes a sophisticated Low-Tension Drive System (friction drive) for our spiral towers.
Reduced Wear and Tear: The system minimizes friction on the conveyor belt, significantly extending the lifespan of the mesh belt and reducing the need for frequent replacements.
Smooth Product Handling: This drive mechanism ensures ultra-smooth movement, preventing products (like delicate pastries or raw seafood) from shifting, sticking, or deforming during the ascent/descent.
Intelligent Airflow & Energy Efficiency
Our Spiral Quick Freezer is not just a cold room; it is a precision aerodynamic machine.
360° Uniform Freezing: We employ a strategic airflow design that directs cold air horizontally across the spiral tiers. This ensures that products on the inner and outer tracks freeze at the same rate, guaranteeing consistent product quality.
High-Efficiency Evaporators: Our custom-designed evaporators maximize heat exchange surface area. Combined with high-quality insulation panels that prevent thermal leakage, our system reduces compressor workload and lowers electricity consumption per kilogram of product frozen.
Smart Control & Integration
PLC Touch Screen Interface: Operators can easily monitor temperature curves, adjust belt speeds, and store freezing recipes for different product types (e.g., switching from Chicken Nuggets to Dumplings).
Seamless Line Integration: As a provider of comprehensive solutions, we ensure the Spiral Freezer syncs perfectly with your upstream Pre-treatment Machines (washers, blanchers) and downstream packaging lines.
Why Choose Shaoxing Jiesheng Food Machine Technology (Wuye Machinery)?
30 Years of Experience: A proven track record in manufacturing food machinery since the 1990s.
Customization: Whether you need a single or double spiral freezer, we tailor the dimensions to fit your factory's specific height and layout.
Global Service: With exports to Vietnam, Russia, South Korea, and more, we provide 24/7 multilingual support and on-site installation services.
Optimize Your Production Floor Today
Don't let limited space limit your production capacity. Contact Shaoxing Jiesheng Food Machine Technology (Wuye Machinery) for a customized Spiral Quick Freezer quote and technical drawing.
