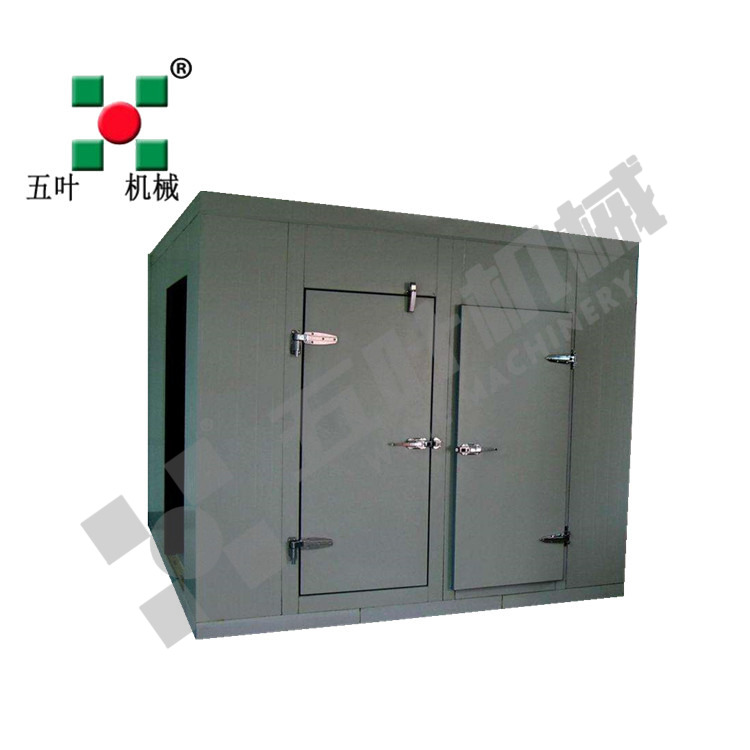

Customized Large-Scale Cold Storage

Key Advantages

• Fully Customizable Dimensions & Layout
  No two facilities are the same. We design and build each cold storage to your exact spatial requirements—whether you need a compact high-bay freezer or an expansive warehouse-scale cold room. From overall footprint to internal height and chamber configuration, every dimension is tailored to maximize your available space and integrate seamlessly with your production or distribution workflow.



• Precise Temperature Customization
  Different products demand different environments. The cold storage offers fully customizable temperature ranges to suit your specific needs—from cold storage for fresh produce (0°C to 8°C) to frozen storage for meats and seafood (-18°C to -25°C) and even deep-freeze applications down to -40°C or lower. We engineer the refrigeration system precisely for your required temperature profile.



• Industrial-Scale Capacity
  Built for volume. The cold storage can be configured to provide massive storage capacity, from hundreds to thousands of pallet positions, supporting the high-throughput demands of large-scale food production and distribution. Our modular panel construction allows for virtually unlimited scalability.



• Multi-Temperature Zone Flexibility
  For operations handling diverse product lines, we offer multi-zone cold storage designs. A single facility can be partitioned into separate chambers with independent temperature control—for example, a -25°C freezer section alongside a 0-5°C chiller section—all within one integrated structure, optimizing workflow and reducing construction costs.



• Energy-Efficient, High-Quality Construction
  Built with high-density polyurethane, our cold storage rooms provide superior thermal efficiency, minimizing energy consumption and ensuring temperature stability even in extreme conditions. All materials are food-grade and designed for hygiene and durability.


Typical Configuration (Fully Custom-Engineered)

• Primary Application: Large-scale cold storage for food processing plants, distribution centers, and industrial food storage facilities.

• Temperature Range Options (Fully Customizable):

• Cold Storage: -18°C to -20°C (for meat, seafood, frozen foods)

• Deep Freeze: -30°C to -40°C or lower (for specialty products, long-term storage)

• Multi-Zone: Multiple independent temperature zones within a single facility




Compact structure

SUS304 stainless for food

Low noise operation

Easy to operate

Factory direct sales

Applicable to: Fruits,vegetables,seafood and meat.

What is a Cold Room?

A cold room, sometimes referred to as a refrigeration room, is a type of refrigeration chamber or insulated space designed to maintain an artificially generated temperature or range of temperatures. Cold rooms are used for storing temperature-sensitive, perishable items, such as food.

Why Use a Cold Room?

Cold room storage provides precise temperature control for commercial facilities where consistent, powerful refrigeration or freezing is required. For food storage, this means long-term temperature regulation for perishable or unstable products, lowered deterioration rates, and peace of mind knowing that items are preserved in the optimal conditions.

Some other benefits of Parameter's cold rooms include:

Energy Efficiency – Reduce energy costs for storage of samples and other materials. Cold storage units are constructed to prevent fluctuations in temperature, meaning less energy is required to balance and adjust the temperature while in use. This holds true no matter your industry.

High Product Standards – Guarantee potency of food with cold storage. This can also help improve your company’s reputation and reliability.

Safety and Security – Some food are highly sensitive and expensive-ensure their safekeeping with weather-proof cold storage units.

Types of Cold Storage Rooms

0℃~5℃  Preservation or Positive Chambers

Used for short-term storage or storage of raw materials for market distribution.

-5℃~0℃  Chilling room

For the cooling of the fresh food materials.

-18℃  Cold room

Store the frozen products,which can be cooled by aluminum exhaust pipe and air cooler

-40℃~-35℃  Blast freezer/Quick freezing room

Aluminum exhaust pipe and qir cooler can be used,the way can be trolley or shelf type.

Key Components of a Cold Storage Room

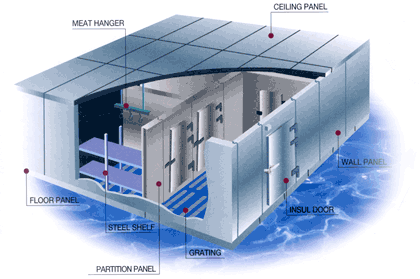

While cold storage rooms vary in sophistication, size, and function, they all share basic components: temperature-control panels, air compressors, refrigerant evaporators, refrigerant condensers, expansion valves, ventilation and air extraction systems, and airtight industrial doors with no thermal leaks.

Refrigeration unit

Our company one-stop set of quick-frozen solutions, using domestic and foreign advanced refrigeration design concept multiple parallel units, no barrel no pump technology, through the PLC in the program automatic energy adjustment to match the ever-changing cooling cooling that the refrigeration system maintain the best efficiency, to achieve energy saving, reduce operating costs.

1. Multiple units are connected in parallel and multi-level energy regulation is used to achieve timely and reasonable matching according to the actual refrigeration capacity required for production, which saves more than 30% energy compared with a single unit.

2.It can match multiple evaporators to achieve one machine suitable for different evaporation temperatures, making the refrigeration system run in the most energy-saving working state.

3. Adopt high-quality compressors and accessories from home and abroad, with reliable performance, stable operation and long service life.

4. Simple design, the refrigeration main unit, accessories and controls are concentrated in one body, which fully saves the machine room space and is extremely convenient for operation and maintenance.

5. The use of fault separation technology can ensure that when some machines fail, other machines can still operate normally, ensuring normal and continuous production for customers.

STC series evaporative condensers are the latest type of evaporative condensers developed by our company by absorbing the latest technologies and manufacturing processes at home and abroad. They are one of many types of condensers and are widely used due to their energy and water saving, high efficiency and low operating cost.

When the equipment is running, the refrigerant in the coil is reversely exchanged by the cooling water from top to bottom and the natural air from bottom to top, and the heat is taken away from the air; the water passing through the coil flows into the packing layer and then flows into the water pan after being cooled. The small water droplets passing through the top layer are collected by the water collector, thus reducing the water escape rate.
