A fluidized bed freezer belongs to the IQF (Individual Quick Freezing) category. Unlike a plate freezer that freezes products in a stationary block between cold plates, an IQF freezer freezes each piece individually — while it's moving.
Here's the principle:

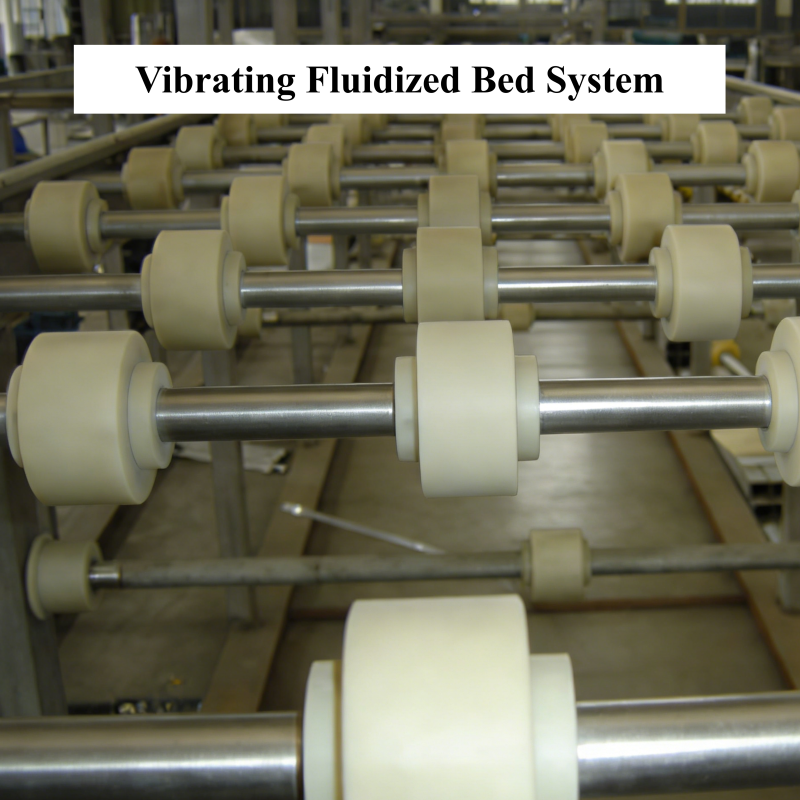

The product — corn kernels, peas, diced fruit, French fries — enters the freezing tunnel on a perforated conveyor belt or a vibrating trough. High-velocity cold air (typically at -30°C to -40°C) is blasted upward through the product bed from below. The air velocity is carefully calibrated: strong enough to lift and suspend each piece, creating a "fluidized" state where pieces float and gently tumble, but not so strong that they blow away. In this suspended state, every surface of every piece is exposed to the freezing air simultaneously. No piece touches another long enough to stick. No ice bridges form.
The result: in 5 to 12 minutes (depending on product size and water content), each piece exits at -18°C core temperature — individually frozen, free-flowing, ready for packaging.
The key difference from other freezers:
vs. Plate freezer: A plate freezer for meat or fish works by pressing products between cold aluminum plates. Excellent for flat blocks of fillets or meat cuts. For berries or peas? You'd get a crushed, frozen brick.
vs. Spiral or tunnel freezer: These use cold air blowing over stationary or slowly moving product on belts. IQF can clump if pieces rest against each other on a belt. A fluidized bed ensures separation by design.
vs. Cold room freezing: Hours-long freezing, large ice crystals inside cells, products fused together. The quality difference is night and day.
Why "fluidized"?
Imagine a pot of boiling water — particles move and circulate freely. Replace water with cold air, and you get the same effect: each kernel, each berry behaves like an individual particle in a fluid. That's fluidization.
A fluidized bed IQF freezer is not a universal machine. It excels at one specific category: granular, small-piece foods with uniform size and weight. If your product can be poured, it can probably be fluidized.
Here's the product breakdown:
● Vegetables
Sweet corn kernels
Green peas
Diced carrots
Chopped green beans
Diced bell peppers
Edamame (soybeans)
Onion dices
Broccoli florets (small, uniform cuts)
● Fruits
Strawberry halves or whole small strawberries
Blueberries
Raspberry, blackberry
Pitted cherries
Diced mango
Diced pineapple
Diced peach
Cranberries
● Potato & Starch Products
French fries (pre-blanched)
Potato cubes/dices
Sweet potato cubes
Tater tots
● Seafood (specific types)
IQF shrimp (individual shrimp, not blocks)
Scallops
Clam meat
Squid rings
Large whole fish or thick fillets → use a plate freezer for fish
Meat blocks, chicken breast, pork chops → use a plate freezer for meat or spiral freezer
Liquid or semi-liquid products like soup, sauce, puree → not suitable for fluidization
Products with very irregular sizes and shapes (whole artichokes, whole pumpkins) → too large, won't fluidize
A practical note on "stickiness":
Some fruits (mango, peach, pineapple) have high sugar content and tend to be stickier after cutting. An IQF line for these products may include a pre-chilling step or a light surface crust-freeze before entering the main fluidized bed to prevent initial sticking. We can advise on this during line design.
ISO/CE certified industrial IQF freezers from our factory are available for all the above products, with processing capacities from 500kg/h to 6000kg/h. OEM configurations available: customize belt width, freezing zone length, and airflow settings to your specific product.
Investing in an industrial IQF freezer is a significant decision. Here's a step-by-step guide to matching the machine to your operation:
Step 1: Know your product's physical characteristics.
Average piece size and weight (mm, grams per piece)
Water content and sugar content (affects freezing time)
Is the product sticky when wet? (affects infeed design)
Is the product fragile? (affects air velocity and bed design)
Step 2: Define your capacity requirement.
Fluidized bed IQF freezers come in a wide capacity range:
500–1000 kg/h: Suitable for small to medium processors, seasonal fruit operations, single-product lines
1000–3000 kg/h: Mid-size industrial operations, multi-product facilities
3000–6000 kg/h: Large-scale export processors, 24/7 continuous lines
Be realistic. Don't buy for "someday" capacity. But do leave room for growth — adding a second shift is easier than replacing the machine.
Step 3: Match the freezer length and belt design.
Freezing time determines how long the product must stay in the fluidized bed. This translates to belt length at a given belt speed. Products with higher water content or larger piece size need longer dwell time → longer freezing tunnel or wider belt.
Our team calculates the required freezing zone area based on your product's thermal properties. We don't guess.
Step 4: Consider your factory layout.
Floor space available (length × width × height)
Infeed and outfeed orientation (straight line, L-shape, U-shape)
Upstream equipment: blancher, cutter, washer — where do they sit?
Downstream equipment: weighing, packaging, cold storage — how will product flow?
Refrigeration system location and piping distance
Step 5: Factor in sanitation and maintenance.
Food safety is non-negotiable. Look for:

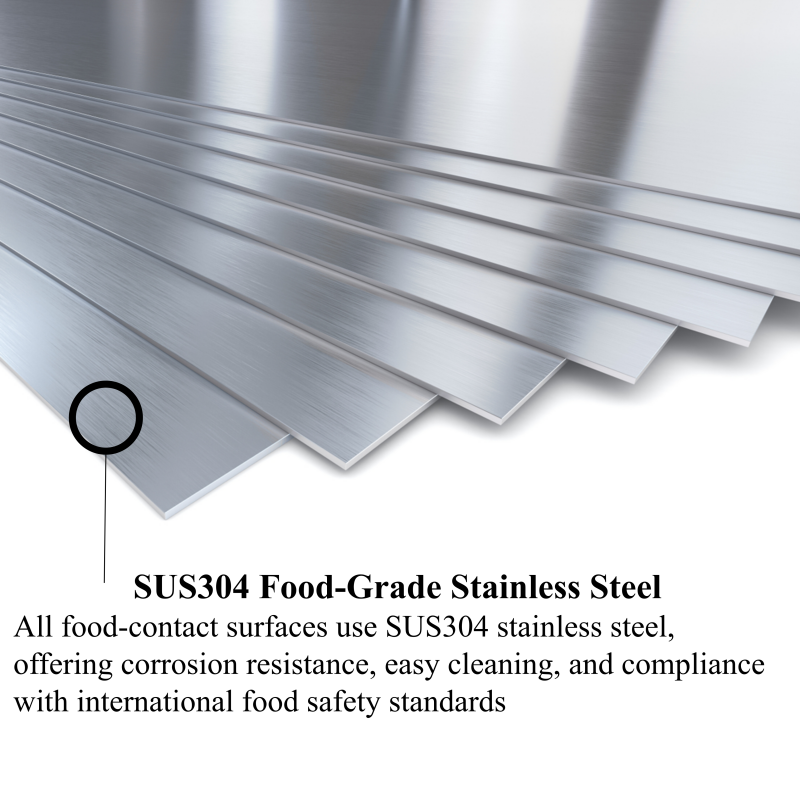

Stainless steel construction, food-contact surfaces in 304 or 316 SS

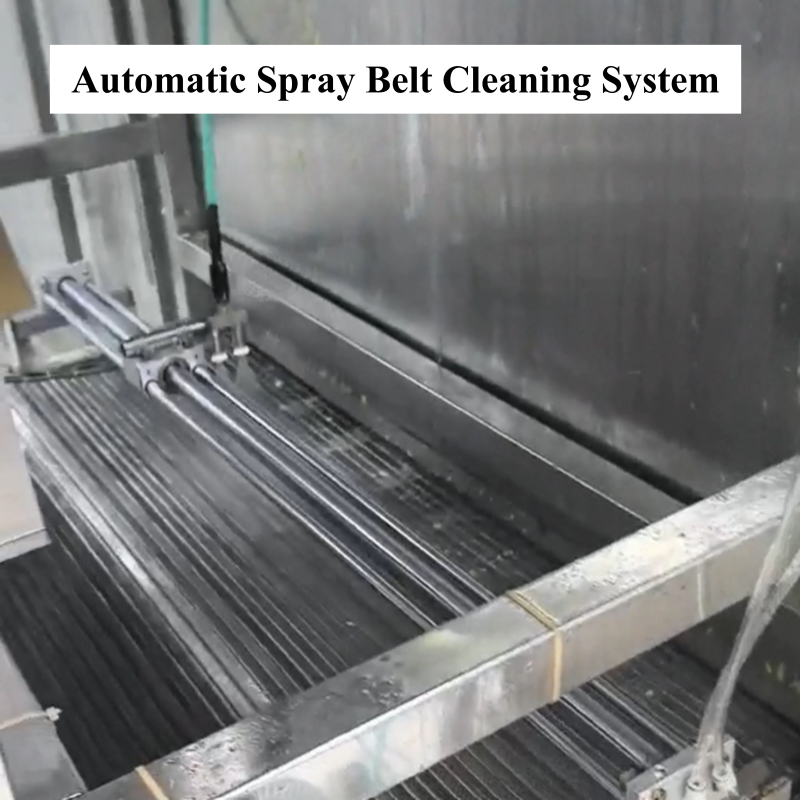

Easy-access panels for cleaning between product changeovers
Drainage slope and collection for defrost water
Step 6: Verify certifications and support.
Our fluidized bed IQF freezers are manufactured in an ISO 9001 certified factory with CE compliance. We provide:
Full installation and commissioning support (on-site or remote)
Operator training
Spare parts kit with every machine
24/7 technical support via video call
OEM customization: your brand, your colors, your control panel language
A common mistake: Buying a freezer based on price alone, then discovering the air velocity isn't calibrated for your product, or the belt material isn't compatible with your cleaning chemicals. Test before you commit. Send us a sample of your product; we'll run a freezing trial and give you real data — freezing time, final temperature, IQF rate (percentage of separate pieces), and energy consumption.
Q1: What's the difference between an IQF freezer and a plate freezer?
A: A plate freezer freezes products in a stationary block between cold aluminum plates. It's ideal for whole fish, fillets, and meat blocks — products meant to be frozen as a solid block. An IQF fluidized bed freezer freezes each piece individually while it floats on cold air. It's designed for granular products that must stay separate: peas, corn, berries, diced fruit. Right tool for the right product.
Q2: What IQF rate can I expect?
A: Typically 97–99% for well-suited products like peas, corn kernels, and blueberries. The IQF rate depends on product uniformity, moisture on the surface, and proper airflow calibration. Products with higher surface moisture or sugar (like mango dices) may achieve 90–95% without pre-treatment. We'll provide an expected IQF rate based on your product sample test.
Q3: How much does an industrial fluidized bed IQF freezer cost?
A: The price depends on capacity, tunnel length, material specifications, and refrigeration system scope. Contact us with your product and capacity target for a detailed quotation. We offer OEM configurations to match your budget and specifications.
Q4: How long does it take to install and commission?
A: Installation typically takes 30 days from equipment arrival to production handover, including mechanical assembly, refrigeration piping, electrical connection, and commissioning. Our engineers provide on-site supervision or full turnkey installation. Operator training is included.
Q5: Can one IQF freezer handle multiple products?
A: Yes. A fluidized bed IQF freezer can switch between compatible products — for example, peas in the morning, corn in the afternoon, diced carrots in the evening. Product changeover requires cleaning between runs. We design with quick-access panels and removable belts for fast changeover. We'll help you plan the production schedule to maximize utilization.
Q6: Do you provide freezing trials before purchase?
A: Absolutely. Send us a sample of your product. We'll run it through our test IQF freezer and provide you with a full report: freezing time, final core temperature, IQF rate (%), appearance before and after, dehydration loss, and energy consumption data. We strongly recommend testing before committing — it validates the solution and gives you peace of mind.
Your product deserves to be seen individually — not as a frozen clump.
If you're freezing granular foods like corn, peas, berries, diced fruit, or French fries, a fluidized bed IQF freezer turns "good enough" into export-grade.
Tell us your product type and target capacity. We'll recommend the right IQF freezer configuration and offer a product freezing trial — so you can see the results before you invest.
