The fluidized bed IQF process is designed around one goal: freeze every piece individually, consistently, and quickly. For beans, this means each pea, each edamame, each cut green bean exits the freezer as a separate, free-flowing piece — ready to package, ready to sell.
Here's how it works step by step:
Step 1: Product enters the freezing tunnel. After blanching, cooling, and dewatering, beans are fed onto a perforated stainless steel conveyor belt at the infeed of the IQF freezer. The product bed is evenly distributed across the belt width to ensure uniform exposure to the freezing air.
Step 2: Fluidization begins. High-velocity cold air at -30°C to -40°C is blown upward through the belt perforations from below. The air speed is calibrated precisely to the weight and size of your product. For green peas, the required air velocity differs from that for larger chickpeas or edamame. The goal is the same: lift and suspend each bean so it floats and tumbles gently in the cold airstream. This suspended state is called fluidization.
Step 3: Individual freezing in suspension. In this fluidized state, every surface of every bean is exposed to the freezing air simultaneously. No bean rests against another bean long enough to form ice bridges. Each piece freezes from the outside in, independently. Core temperature drops to -18°C within 5 to 12 minutes, depending on bean size and water content.
Step 4: Discharge and pack. Frozen beans exit the tunnel individually, free-flowing, and proceed directly to weighing, bagging, and cold storage. The IQF rate — the percentage of perfectly separate pieces — typically reaches 97–99% for beans and peas.
The entire process is continuous. Beans enter at one end, frozen product exits at the other. One operator monitors the line. The system runs as long as you need it to.
Why beans are ideal for fluidized bed IQF:
Beans have several characteristics that make them a perfect match for this technology:
Uniform size and shape. Consistent piece dimensions allow uniform fluidization and even freezing.
Moderate water content. Beans freeze efficiently without excessive crusting or sticking.
Smooth surface after blanching. Properly blanched and dewatered beans enter the freezer with minimal surface moisture, reducing the chance of adhesion.
High market demand for IQF. Food manufacturers, food service, and retail all specify IQF beans. The market expects individual pieces.
The fluidized bed IQF freezer is not a general-purpose machine. It's a specialized tool — and beans are exactly the type of product it's built for.
A fluidized bed IQF freezer scales across a wide capacity range, making it suitable for small seasonal packers and large continuous export lines alike.
Capacity range: 500 to 10,000 kg/h.
500–1,000 kg/h. Compact IQF tunnels for regional processors, seasonal operations, or single-product bean lines. Manageable footprint. Fast return on investment — particularly for processors upgrading from fresh-only to frozen product lines.
1,000–3,000 kg/h. Mid-scale systems for established processors supplying domestic retail chains or regional export markets. These lines often run multiple products: peas in the morning, corn in the afternoon, diced carrots at night. The fluidized bed design with adjustable air velocity settings handles product variety without hardware changes.
3,000–10,000 kg/h. Full industrial lines for major exporters and multinational food processors. Wide belts, extended freezing zones, multi-zone temperature control, and seamless integration with upstream blanchers and downstream packaging systems. At 10,000 kg/h, a single line can freeze over 200 tons of beans per day on continuous operation.
Across all capacities, the freezing principle remains identical. Every bean is individually suspended, individually frozen, individually discharged. IQF rate stays at 97% or above from the smallest machine to the largest.
Food-grade construction:
Every surface that touches your product is made from food-grade stainless steel — 304 or 316 grade. The mesh belt, the bed structure, the internal panels. The exterior frame is stainless steel as well. No painted carbon steel in the food zone. This matters for food safety audits, for cleaning, and for long-term durability in wet processing environments.
The perforated belt is designed for hygiene and airflow. Open area ratios are matched to your product's air velocity requirements. The belt is removable for deep cleaning and compatible with CIP (Clean-in-Place) systems.
Consistent product quality:
What comes out of an IQF fluidized bed freezer is measurably different from product frozen by other methods:
Individual pieces, free-flowing. Beans pour, weigh, and pack without clumping or manual separation.
Minimal dehydration loss. Because each piece freezes quickly in a humid, enclosed environment, surface moisture loss is negligible. Product weight is preserved.
Small ice crystals, better texture. Rapid freezing forms tiny ice crystals inside the bean's cellular structure. Cell walls remain intact. When cooked, IQF beans retain firmer texture and better bite than slow-frozen product.
Natural appearance. No freezer burn marks. No surface frost accumulation. The product looks like beans should look.
For processors building a brand in frozen vegetables, consistent IQF quality is what keeps buyers reordering.
The fluidized bed IQF freezer has been refined over decades of industrial use. One of the most significant recent advances is a structural redesign: moving the evaporator from the traditional side-mounted position to the top of the freezing tunnel.
The traditional layout. In a conventional IQF freezer, the evaporator unit — containing the cooling coils and circulation fans — is installed beside the product belt or underneath it. Air travels from the fans, through the coils, along ducts, up through the belt from below to fluidize the product, and then back around to the evaporator. This layout works. It has been the industry standard. But the side-mounted evaporator adds to the machine's overall width, and the air circulation path is relatively long.

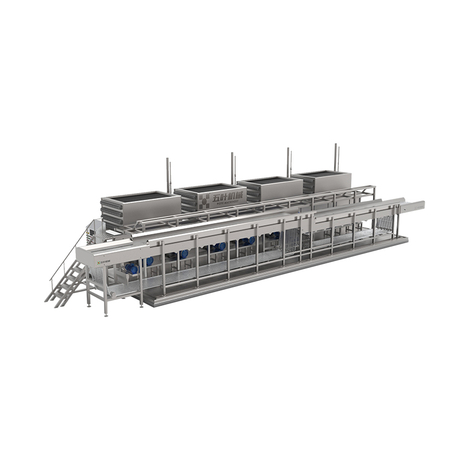

The new top-mounted design. In the redesigned structure, the evaporator is positioned directly above the product belt. Fans and cooling coils are housed in a compact module on top of the freezing tunnel. Cold air is pushed down through vertical side plenums, then directed upward through the belt from below — creating the same fluidized bed effect. After passing through the product, the air returns directly upward to the evaporator in a short, optimized closed loop.
What this improvement delivers:
Smaller footprint. Removing the side evaporator module reduces the machine's overall width by 25–35%. A 2,000 kg/h line fits into approximately 10 meters by 3.5 meters instead of the 14 meters by 4.5 meters a traditional layout might require. For processors with limited factory space or those looking to fit more equipment into an existing facility, this is a meaningful gain.
Improved airflow consistency. The shorter air circulation path means less pressure drop and less temperature gain between the evaporator and the product bed. Air reaches the belt at a more uniform temperature and velocity across its full width. Every bean — even those at the belt edges — experiences the same freezing conditions.
Easier access for maintenance. With the evaporator on top, service technicians access fans, coils, and defrost components from above via the top deck. This is more straightforward than working through side access panels in a cramped machine corridor.
Cleaner interior design. Vertical return air channels are smooth-walled and sloped toward a drainage collection point. Any small product fragments or moisture that pass through the belt are directed away from the coil surfaces. Less debris accumulation means less frequent defrost cycles and more consistent cooling performance over long production runs.
This top-evaporator configuration is the new design standard for processors seeking to maximize both freezing performance and floor space utilization. It represents a genuine engineering advancement — the same proven fluidized bed IQF principle, delivered in a smarter package.
Q1: What's the difference between an IQF freezer and a plate freezer?
A: A plate freezer freezes products in a stationary block between cold aluminum plates. It's ideal for whole fish, fillets, and meat blocks — products meant to be frozen as a solid block. An IQF fluidized bed freezer freezes each piece individually while it floats on cold air. It's designed for granular products that must stay separate: peas, corn, berries, diced fruit. Right tool for the right product.
Q2: What IQF rate can I expect?
A: Typically 97–99% for well-suited products like peas, corn kernels, and blueberries. The IQF rate depends on product uniformity, moisture on the surface, and proper airflow calibration. Products with higher surface moisture or sugar (like mango dices) may achieve 90–95% without pre-treatment. We'll provide an expected IQF rate based on your product sample test.
Q3: How much does an industrial fluidized bed IQF freezer cost?
A: The price depends on capacity, tunnel length, material specifications, and refrigeration system scope. Contact us with your product and capacity target for a detailed quotation. We offer OEM configurations to match your budget and specifications.
Q4: How long does it take to install and commission?
A: Installation typically takes 30 days from equipment arrival to production handover, including mechanical assembly, refrigeration piping, electrical connection, and commissioning. Our engineers provide on-site supervision or full turnkey installation. Operator training is included.
Q5: Can one IQF freezer handle multiple products?
A: Yes. A fluidized bed IQF freezer can switch between compatible products — for example, peas in the morning, corn in the afternoon, diced carrots in the evening. Product changeover requires cleaning between runs. We design with quick-access panels and removable belts for fast changeover. We'll help you plan the production schedule to maximize utilization.
Q6: Do you provide freezing trials before purchase?
A: Absolutely. Send us a sample of your product. We'll run it through our test IQF freezer and provide you with a full report: freezing time, final core temperature, IQF rate (%), appearance before and after, dehydration loss, and energy consumption data. We strongly recommend testing before committing — it validates the solution and gives you peace of mind.
