Incorrect freezer sizing brings severe financial and operational risks to food processing facilities. Under-sizing your system creates immediate production bottlenecks and compromises food safety. When products freeze too slowly, large ice crystals form, damaging cellular structures and degrading quality. Over-sizing leads to wasted capital expenditure and excessive energy consumption that drains operational budgets.
Plant managers and process engineers constantly struggle to balance required production throughput with facility footprint constraints. You must account for varying product thermal properties, utility limits, and seasonal peak loads. Sizing goes far beyond simply matching physical dimensions to a room. You must achieve a rapid temperature drop to halt microbial activity and clear the critical freezing zone quickly. This rapid transition extends shelf life and preserves product integrity.
We will explore a systematic, engineering-based framework for calculating thermal load, evaluating physical footprint requirements, and selecting the correct equipment for specific operational demands.
Throughput vs. Thermal Load: Sizing is not just about physical dimensions; it requires calculating the exact enthalpy change based on product specific heat, moisture content, and target temperature drop.
Footprint Efficiency: Vertical systems (spirals) maximize floor space, while horizontal systems (tunnels) and batch systems (plate freezers) offer different advantages for specific product geometries and structural plant layouts.
Cryogenic vs. Mechanical Scaling: Liquid nitrogen systems offer smaller footprints and lower initial CapEx for rapid scaling, whereas mechanical systems require larger footprints but deliver lower long-term operating costs (OpEx) at high volumes.
Operational Buffers: Correct sizing must account for defrost cycles, sanitation downtime, and peak seasonal production loads, not just average daily throughput.
Accurate sizing begins with defining exact operational parameters. You cannot rely on generic capacity ratings provided by equipment vendors. A system rated for 2,000 kg/hr of diced carrots will not process 2,000 kg/hr of raw chicken breasts. You must establish core success criteria based on your specific production environment, upstream processing speeds, and downstream packaging capabilities.
Throughput serves as the foundational metric for any freezing operation, typically measured in kilograms or pounds per hour. Relying solely on average continuous throughput often leads to severely under-sized equipment. You must differentiate between average daily production and peak seasonal or shift loads.
Harvest seasons, promotional production runs, or shift overlaps frequently push throughput 20% to 30% above the daily average. If your equipment cannot handle these peak loads, you face immediate upstream bottlenecks. Product sits on the processing floor, gaining heat and risking microbial growth. Always size your equipment to accommodate peak shift loads while maintaining the required core exit temperature. You must also account for surge loads from upstream equipment. For example, if a batch mixer dumps 500 kg of product onto a conveyor every 15 minutes, your freezer must handle that instantaneous surge, not just the hourly average.
Every food product possesses unique thermal properties that dictate freezing times. Water content, fat content, and product density heavily impact how quickly heat leaves the product. Water has a high latent heat of fusion, meaning high-moisture products require significantly more refrigeration capacity to freeze.
Fat acts as an insulator. High-fat products, such as certain cuts of pork or rich pastries, freeze slower than lean products of the same weight. Density also plays a major role in heat transfer. Fragile IQF (Individual Quick Freezing) products like raspberries or peeled shrimp require rapid crust freezing to lock in moisture and prevent clumping. Robust, dense products like 20kg meat blocks require sustained deep freezing over several hours.
You must define the incoming product temperature and the required core exit temperature. A product entering the freezer at +15°C requires vastly more energy to reach a core temperature of -18°C than a product entering at +4°C. The delta between these two temperatures drives your thermal load calculation. Even a 3°C difference in incoming temperature can require a 10% increase in compressor capacity.
Thermal Properties of Common Food Categories
Food Category | Average Water Content (%) | Initial Freezing Point (°C) | Latent Heat (kJ/kg) |
|---|---|---|---|
Lean Meat (Beef/Poultry) | 70 - 75 | -1.5 to -2.2 | 230 - 250 |
Fatty Meat (Pork/Lamb) | 50 - 60 | -2.0 to -2.5 | 170 - 200 |
White Fish | 78 - 82 | -1.0 to -1.5 | 260 - 275 |
Berries & Vegetables | 85 - 92 | -0.8 to -1.2 | 280 - 310 |
Physical and infrastructural limits often dictate equipment selection before you even calculate thermal loads. Outline your hard physical limits immediately. Measure available floor space, including length and width. Check ceiling height clearances, ensuring enough room for maintenance access, piping runs, and airflow above the unit.
Structural floor loading capacity is a strict constraint. Industrial freezers exert massive point loads on the factory floor. A fully loaded spiral freezer can easily exceed the structural limits of a standard 150mm concrete slab. Verify that your concrete slab can support the operational weight, which includes the equipment, the product, and potential ice buildup. You may need to cut the slab and pour reinforced footings for heavy equipment.
Utility constraints frequently bottleneck expansion projects. Evaluate your electrical capacity at the main motor control center (MCC). Determine if your existing refrigeration plant has the available ammonia or freon capacity to support a new evaporator coil. Check the suction pressure of your existing compressors. If you lack mechanical refrigeration capacity, you must evaluate cryogenic gas storage availability, pad requirements for bulk tanks, and the logistics of regular liquid nitrogen deliveries.
Thermal load calculations form the absolute foundation of equipment sizing. You must determine exactly how much heat energy needs to be removed from the product within a specific timeframe. This dictates the required refrigeration capacity, measured in kilowatts (kW) or Tons of Refrigeration (TR).
Food freezing happens in three distinct thermodynamic phases. You must calculate the heat removal for each phase to determine the total thermal load. The framework relies on calculating sensible heat and latent heat.
Sensible Heat Above Freezing: This is the energy required to cool the product from its incoming temperature down to its initial freezing point. You calculate this using the product's specific heat capacity above freezing.
Latent Heat of Fusion: This is the massive amount of energy required to change the state of the water within the product from liquid to solid ice. The temperature does not drop during this phase; all energy goes into the phase change. This phase demands the most refrigeration capacity.
Sensible Heat Below Freezing: Once the water turns to ice, you must cool the frozen product down to the final target core temperature. You calculate this using the product's specific heat capacity below freezing.
Adding these three values together gives you the total enthalpy change per kilogram of product. Multiply this by your peak hourly throughput (kg/hr) to determine your baseline thermal load. You must then add safety margins for heat infiltration through the freezer enclosure, fan motor heat, and opening/closing of infeed/outfeed ports. Fan motors alone can add 15% to the total heat load, as all electrical energy consumed by the fans converts to heat inside the box.
Once you know the thermal load, you must determine how long the product needs to stay inside the freezer. This is the dwell time, or retention time. Dwell time depends entirely on product thickness and thermal conductivity. A 10mm thick fish fillet might freeze in 15 minutes, while a 150mm thick meat block might take 24 hours.
Dwell time dictates the physical size of continuous freezers. You calculate the required belt area using a strict formula: Belt Area = (Peak Throughput × Dwell Time) / Belt Loading Density. Belt loading density (kg/m²) is the maximum amount of product you can place on one square meter of the conveyor belt without overlapping or restricting airflow.
If you overlap products to increase belt loading, you choke the airflow. This drastically increases the required dwell time, negating any capacity gains and often resulting in poorly frozen, clumped products. You must respect the maximum belt loading density for your specific product geometry.
Belt Loading Density Guidelines
Product Type | Typical Belt Loading (kg/m²) | Airflow Requirement |
|---|---|---|
IQF Berries / Peas | 10 - 15 | High Velocity (Fluidization) |
Chicken Breast Fillets | 20 - 25 | Medium Velocity (Impingement) |
Packaged Ready Meals | 30 - 40 | Low Velocity (Horizontal Flow) |
Raw Meat Patties | 15 - 20 | Medium Velocity |
With your thermal load and dwell time calculated, you can evaluate specific equipment types. Each design offers distinct advantages regarding footprint efficiency, heat transfer methods, and product handling capabilities.

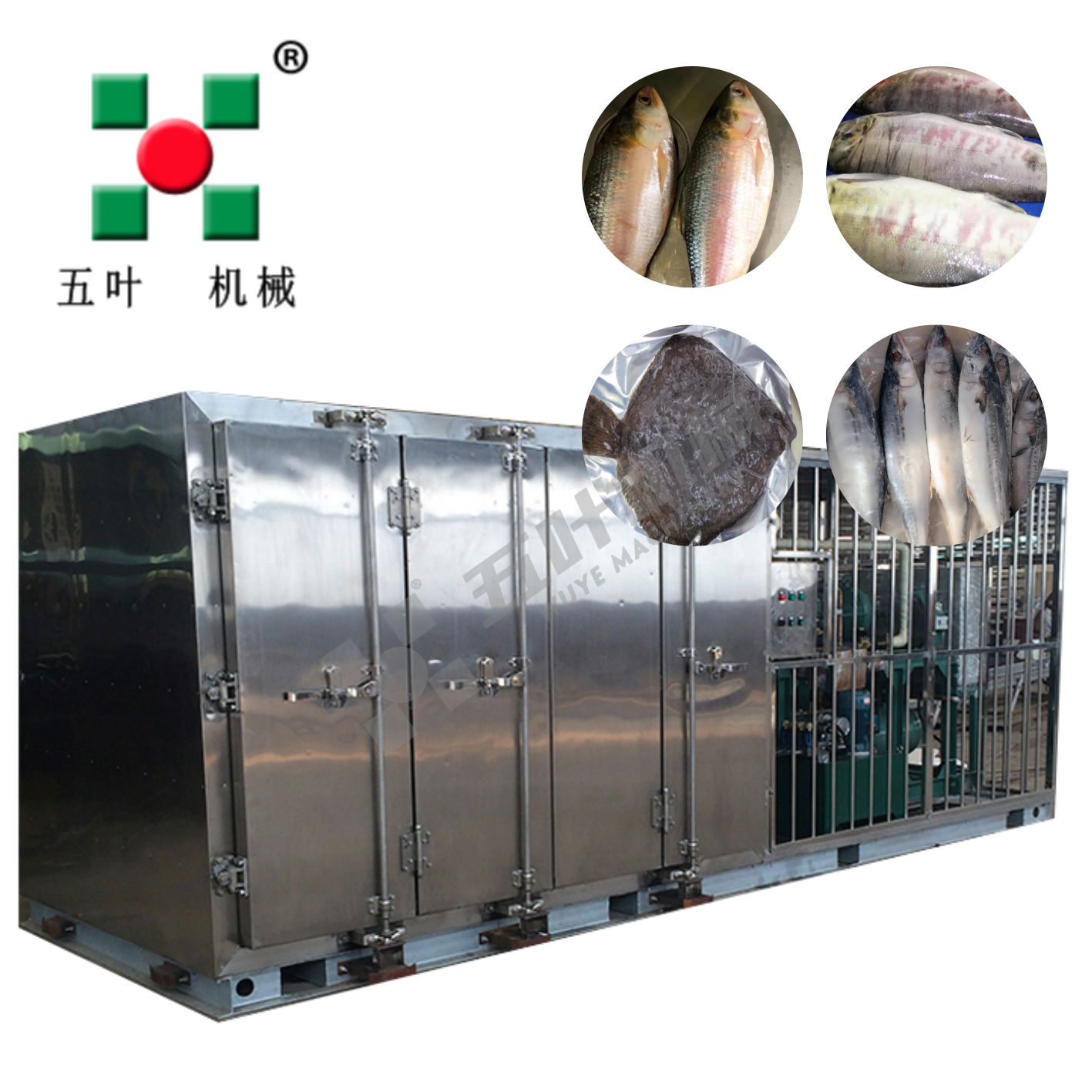

When processing high-density, flat, or packaged products, a contact plate freezer provides exceptional efficiency. These systems utilize direct double-sided conduction freezing. Refrigerant flows through horizontal aluminum plates. Hydraulic cylinders compress these plates directly against the product packaging or freezing trays.
This direct contact eliminates the need for fans and convective air currents, making the heat transfer incredibly fast. Because there is no air space required between product layers, the footprint-to-capacity ratio is unmatched. You can achieve massive freezing capacity in a very small physical footprint. The hydraulic pressure ensures the product freezes into perfectly flat, uniform blocks, which is highly desirable for downstream palletizing and shipping.
Sizing a plate quick freezer requires careful calculation of the station dimensions. You must determine the exact number of stations (the gaps between the plates) and the specific plate dimensions required to hold your standard block or carton sizes. You also must ensure the hydraulic pressure system can apply sufficient force to maintain perfect surface contact as the product expands during freezing. If the pressure is too low, the expanding ice will push the plates apart, breaking the thermal contact and doubling your freezing time.
Operations requiring extremely fast freezing times for fragile IQF products often turn to cryogenic solutions. A liquid nitrogen tunnel quick freezer sprays liquid nitrogen directly onto or around the product. At -196°C, the nitrogen rapidly absorbs heat, crust-freezing the product almost instantly.
These systems are highly modular. If you need to scale capacity rapidly, you can often add tunnel length without upgrading mechanical compressors or expanding your ammonia plant. This makes them ideal for facilities with severe space constraints or limited mechanical utilities. The rapid crust freezing also minimizes dehydration, which improves product yield and preserves weight.
You must evaluate the exhaust requirements carefully. As liquid nitrogen expands into a gas, it displaces oxygen. You must install robust exhaust fans and ductwork to vent the spent nitrogen gas outside the building, preventing asphyxiation risks on the factory floor. The exhaust system must be balanced perfectly; pulling too much air out wastes nitrogen, while pulling too little creates a safety hazard.
For high-volume, continuous production, mechanical Quick Freezing Equipment remains the industry standard. You must choose between horizontal tunnels and vertical spirals based on your product and plant layout.
Single-pass IQF tunnels utilize a large linear footprint. They are best suited for fragile or sticky products that require fluidization. High-velocity air blows up through the belt, lifting and separating the product to prevent clumping. Tunnels offer a simpler structural integration. The inlet and outlet devices sit at the same height, making upstream and downstream conveyor integration straightforward. You must ensure you have the linear floor space to accommodate the required belt length.
Spiral freezers maximize vertical space. The conveyor belt winds upward or downward around a rotating drum. This design accommodates incredibly long dwell times within a compact floor footprint, making it ideal for large poultry parts, baked goods, or ready meals. Structural integration is more complex. Single-drum spiral freezers require offset heights—one end must be significantly lower than the other. This heavily impacts how you design your factory material handling systems. You must plan for incline or decline conveyors to match the spiral's entry and exit elevations.
Equipment Footprint and Application Comparison
Equipment Type | Best Application | Footprint | Heat Transfer |
|---|---|---|---|
Plate Quick Freezer | Flat or block-shaped seafood and meat | Compact, batch type | Direct conduction |
Liquid Nitrogen Tunnel Freezer | High-value fruits and seafood | Compact, linear | Nitrogen spray and convection |
Tunnel Quick Freezer | High-volume seafood, meat and prepared foods | Linear, continuous | Forced-air convection |
Spiral Quick Freezer | High-capacity continuous food freezing | Vertical, space-saving | Forced-air convection |
Selecting the right equipment size and type requires looking beyond the initial purchase price. You must evaluate the long-term financial impact of the technology over a 5-to-10-year lifecycle. The primary engineering decision often comes down to mechanical versus cryogenic systems.
Cryogenic systems require a fraction of the initial capital expenditure compared to mechanical systems. You do not need to build a massive ammonia plant, install heavy compressors, or reinforce floors for heavy evaporators. The equipment itself is simpler, lighter, and cheaper to install. You only need a concrete pad outside for the bulk nitrogen tank and vacuum-jacketed piping to the freezer.
The operating expenses (OpEx) tell a different story. Liquid nitrogen is an expensive consumable. Every kilogram of product frozen carries a direct gas cost. Mechanical systems require a massive initial investment, but the cost of electricity to run the compressors is significantly lower than purchasing liquid nitrogen on a daily basis.
You must identify the volume threshold where mechanical freezing becomes more cost-effective. For small startup operations or seasonal runs of high-value fragile products, cryogenic makes sense. Once production scales beyond approximately 1,000 to 1,500 kg/hr on a continuous daily basis, the high OpEx of cryogenic gas rapidly outpaces the initial CapEx savings, making mechanical systems the superior long-term choice.
Sizing strictly for current capacity is a dangerous operational risk. If your business grows, a perfectly sized freezer today becomes a severe bottleneck tomorrow. You must build scalability into your initial sizing strategy.
Evaluate modular equipment designs. Some mechanical tunnels allow you to add extra enclosure panels, belt length, and evaporator coils in the future without replacing the entire unit. When sizing your central refrigeration plant, consider installing slightly oversized compressors or leaving physical space on the rack for an additional compressor later. You can also install Variable Frequency Drives (VFDs) on your fan motors, allowing you to increase airflow and capacity as production demands rise. Future-proofing requires a slight increase in initial CapEx, but it prevents catastrophic production limits during growth phases.
Even with accurate thermal calculations, practical implementation errors can ruin equipment performance. Avoid these common sizing mistakes that plague processing facilities.
The critical freezing zone exists between -1°C and -5°C. This is where the vast majority of water within the product turns to ice. If your equipment is under-sized, it lacks the refrigeration capacity to push the product through this temperature band quickly.
Slow freezing rates cause water molecules to migrate and form large, jagged ice crystals. These crystals puncture cell walls. When the product thaws, cellular fluids leak out, resulting in massive drip loss, poor texture, and degraded flavor. You must size the evaporator coils and fan motors to ensure maximum heat transfer velocity through this specific temperature zone. Do not compromise on fan horsepower.
Theoretical capacity assumes the freezer runs perfectly clean 100% of the time. In reality, moisture from the product and the ambient air builds up as frost on the evaporator coils. As frost accumulates, airflow drops, and heat transfer efficiency plummets.
Failing to account for defrost cycles reduces your actual daily throughput. If your freezer requires one time hot gas defrost shift every eight hours, your daily capacity is significantly lower than the hourly rating suggests. When sizing, look for systems with sequential defrosting or continuous snow-blow-off mechanisms that extend run times between full sanitation shutdowns.
Your freezer does not operate in a vacuum. It sits inside a processing room. High ambient temperatures or extreme humidity in that room heavily increase the thermal load on the freezer enclosure. Every time the infeed or outfeed ports open, warm, moist air enters the freezing chamber.
This heat infiltration requires larger evaporator sizing to compensate. If you size the freezer based purely on the product thermal load and ignore the ambient plant conditions, the system will struggle to maintain internal temperatures during humid summer months. Install active air curtains or dehumidification systems at the entry and exit points to minimize this infiltration load.
A perfectly sized freezer fails if the upstream material handling equipment cannot feed it properly. Mismatched belt widths between upstream conveyors and the freezer infeed lead to poor belt utilization. If a narrow conveyor feeds a wide freezer belt, the product will clump in the center.
This restricts airflow around the product, increasing freezing times and reducing effective capacity. You must design spreading shakers, vibratory feeders, or precise transition chutes to ensure even product distribution across the entire width of the freezer belt. Proper belt loading is just as critical as raw refrigeration capacity.
Map your factory floor space, explicitly noting ceiling heights, structural floor limits, and existing utility capacities.
Calculate your total thermal load based on peak seasonal throughput, not just average daily production.
Evaluate your long-term production goals to determine the exact break-even point between cryogenic OpEx and mechanical CapEx.
A: Capacity calculation is straightforward: Daily Volume ÷ Operating Hours. For example, 10,000 kg per day over 10 hours means 1,000 kg/h. We'll take care of the remaining calculations.
A: A spiral freezer utilizes vertical space, winding the belt around a drum, which creates a compact floor footprint but requires offset infeed and outfeed heights. An IQF tunnel requires a long, linear floor space but offers a simpler structure where the inlet and outlet devices remain at the exact same height.
A: Choose a liquid nitrogen tunnel when you face severe space constraints, require rapid deployment without upgrading central refrigeration plants, have limited initial capital, or process extremely fragile products that demand instant crust freezing to lock in moisture and prevent clumping.
A: Contact plate freezers are best used for flat, boxed, or block-shaped products, such as fish blocks, meat portions, or packaged ready meals. They excel in these applications because they utilize direct double-sided conduction freezing, which is faster and more space-efficient than convective air blasts.
