A spiral quick freezer is not a single machine but an integrated system comprising five interdependent subsystems:
Subsystem | Function | Key Components |
|---|---|---|
Refrigeration System | Generates and maintains low-temperature cooling capacity | Compressor, condenser, expansion valve, evaporator coils |
Conveying System | Moves product through the freezing zone | Infeed conveyor, spiral drum/belt system, outfeed conveyor |
Air Circulation System | Distributes cold air evenly across the product | Centrifugal fans, air ducts, baffles |
Insulated Enclosure | Minimises thermal loss and maintains temperature stability | PIR/PU sandwich panels, sealed joints, inspection doors |
Control System | Monitors and adjusts all operating parameters | PLC, touch-screen HMI, temperature sensors, variable frequency drives |
Each subsystem must be precisely engineered and calibrated to work in harmony. A weakness in any one area—undersized evaporator, poor airflow distribution, inadequate insulation—will compromise the entire freezing process.
The freezing process starts at the infeed conveyor, which transports product from the upstream processing line (e.g., forming, cooking, or glazing stations) into the spiral freezer.
Key engineering considerations at the infeed stage:
Infeed conveyor speed synchronisation. The infeed belt speed must be precisely matched to the spiral belt speed to prevent product accumulation or gaps. This is achieved through variable frequency drives (VFDs) that allow continuous speed adjustment. For products that are delicate or prone to sticking—such as dumplings, xiaolongbao, or breaded chicken pieces—a vibratory feeding or distribution device is often installed at the infeed point. This device ensures that products are spread in a single, even layer across the belt width, preventing overlap and ensuring each piece is fully exposed to the cold air stream.
Air curtain at the infeed opening. The infeed opening is a potential point of cold air loss and warm air infiltration. To minimise this, a high-velocity air curtain is installed at the entrance. This downward-blowing stream of air creates a physical barrier that keeps cold air inside the freezer while allowing product to enter freely.
Belt width and product footprint. The choice of belt width (typically ranging from 420mm to 1372mm) directly affects how many products can be arranged side by side. For larger items like whole chickens or portioned meat cuts, a wider belt (≥820mm) is recommended to ensure single-layer arrangement without stacking. Just tell me the size of your product, and I will design the most suitable width for the mesh belt.
Once past the infeed air curtain, the product moves onto the spiral conveying system—the heart of the equipment.
How the spiral belt works. The product is carried on a continuous stainless steel mesh belt that spirals around a central rotating drum (in drum-driven designs) or follows a fixed helical path supported by guide rails. The belt moves in a constant, controlled motion, carrying the product upward or downward through multiple tiers (typically 6 to 30 layers).
The thermal exchange process. As the product travels along each tier of the spiral, it is continuously exposed to a high-velocity stream of cold air (typically -35°C to -40°C). The cold air extracts heat from the product surface through forced convection. As the product moves to higher tiers (in an upward-spiral configuration), it encounters progressively colder air, creating a counter-current heat exchange effect—the coldest air is introduced at the top where the product is coldest, maximising thermal efficiency.

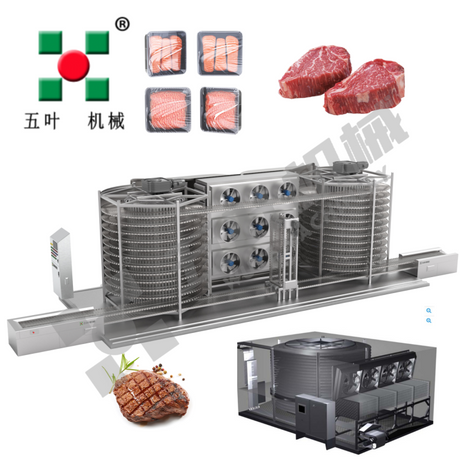

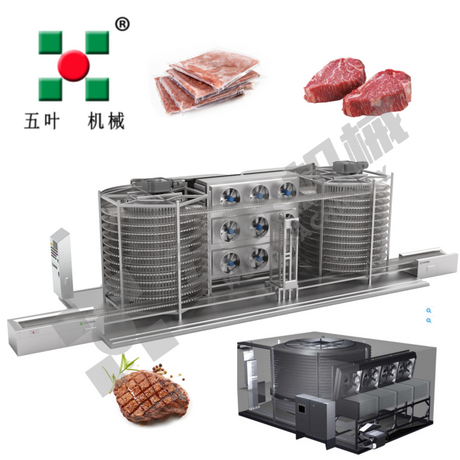

Single spiral vs. double spiral. A single spiral system uses one continuous belt path, suitable for capacities up to approximately 1,000 kg/h. A double spiral system features two independent spiral belts operating in parallel within the same insulated enclosure, effectively doubling the freezing capacity within a similar footprint. Double spiral configurations are typically used for capacities exceeding 1,000 kg/h or for facilities that need to freeze two different product types simultaneously.
Residence time control. The total time the product spends inside the freezer—known as residence time or freezing time—is controlled by adjusting the belt speed via VFDs. For example, a light product like shrimp may require only 20-25 minutes, while a dense product like a thick-cut meat portion may require 40-60 minutes. The ability to fine-tune belt speed is critical for matching the freezing curve to the specific thermal properties of each product.
The refrigeration system is what makes the entire process possible. Understanding how it works is essential for evaluating equipment performance.
The vapour-compression refrigeration cycle. The system operates on a standard vapour-compression cycle: the compressor raises the pressure and temperature of the refrigerant gas; the condenser removes heat and converts the gas to a liquid; the expansion valve reduces pressure and temperature; and the evaporator absorbs heat from the freezer interior, turning the liquid refrigerant back into a gas. This cycle runs continuously, maintaining the evaporator coils at the target temperature.
Evaporator design and fin pitch. The evaporator consists of tubes (aluminium or stainless steel) fitted with aluminium fins to maximise heat transfer surface area. A critical design parameter is fin pitch—the spacing between adjacent fins.
Variable fin pitch design: In a well-engineered spiral freezer, the fin pitch is not uniform across the entire evaporator. At the air inlet side (where warm, moist air first contacts the evaporator), the fin pitch is wider to accommodate frost build-up without blocking airflow. At the air outlet side, the fin pitch is narrower to maximise heat transfer efficiency. This variable-pitch design prevents the evaporator from becoming clogged with frost, maintaining consistent airflow and thermal performance over extended production runs.
Airflow configuration. The direction and distribution of airflow within the freezer are critical to freezing uniformity. Common airflow configurations include:
Upward airflow: Cold air is introduced at the bottom and flows upward through the spiral belt. This is the most common configuration, leveraging natural convection to assist air movement.
Downward airflow: Cold air is introduced at the top and flows downward. This configuration is sometimes used for products that are sensitive to dehydration, as the airflow direction can be adjusted to minimise surface moisture loss.
Cross-flow: Air is directed horizontally across the belt. This configuration is less common but may be used in specific applications.
Fan selection and placement. Centrifugal fans are used to move air across the evaporator and through the spiral belt. The fan motor size, blade design, and placement determine the air velocity and volume. For delicate products like xiaolongbao, lower air velocities are preferred to prevent surface dehydration and cracking. For dense products like meat portions, higher velocities accelerate heat transfer and reduce freezing time.
Beyond the subsystems described above, several specific components deserve individual attention for their role in overall equipment performance and reliability.
5.1 The Conveyor Belt
The belt is the only component that comes into direct contact with the food product throughout the entire freezing cycle. Its design and material selection have a direct impact on product quality, hygiene, and equipment longevity.
Material: Food-grade SUS304 stainless steel spring wire is the industry standard. It offers excellent corrosion resistance, high tensile strength, and good formability. The belt is constructed from interlocking stainless steel links that form a continuous, flat conveying surface.
Belt structure: The belt is made of chain links, connecting pins, and cross rods that interlock to form a rigid yet flexible structure. This design allows the belt to flex as it transitions from the straight infeed section to the curved spiral path, and then back to the straight outfeed section.
Edge guards: Side edges or retaining walls are incorporated into the belt design to prevent products from sliding off the sides, particularly during the curved sections of the spiral path.
Cleaning considerations: The open-mesh design allows for easy cleaning—water and cleaning solutions can pass through the belt, reaching both the top and bottom surfaces. For facilities requiring automated cleaning, CIP (Clean-in-Place) systems can be integrated.
5.2 The Insulated Enclosure
The enclosure—the “box” that contains the freezing environment—is often overlooked but critically important for energy efficiency.
Panel construction: High-quality spiral freezers use PIR (polyisocyanurate) or PU (polyurethane) sandwich panels with a density of approximately 40-42 kg/m³. PIR offers superior fire resistance and thermal insulation properties compared to standard PU.
Panel thickness: Typical panel thickness ranges from 100mm to 150mm, providing a thermal conductivity (U-value) of approximately 0.018-0.022 W/m²·K. Thicker panels reduce heat ingress but increase cost and footprint.
Sealing and joints: All panel joints must be sealed with cam-lock systems and silicone sealants to prevent thermal bridging and air leakage. Even small gaps can significantly increase energy consumption and cause frost accumulation on external surfaces.
Inspection and access: The enclosure includes inspection windows and access doors for maintenance and cleaning. These openings must be equipped with effective seals and, where appropriate, air curtains to minimise thermal loss when opened.
5.3 Defrost Systems
Frost accumulation on the evaporator coils is inevitable in any freezer operating below 0°C. Effective defrosting is essential for maintaining thermal performance.
Water defrost(Default): Water is sprayed onto the evaporator coils to melt accumulated frost. This is the most common method, effective and relatively low-cost, but requires a reliable water supply and drainage system.
Hot gas defrost: Hot refrigerant gas from the compressor discharge is diverted directly into the evaporator coils, melting frost from the inside out. This method is faster than water defrost and does not introduce additional moisture into the freezer environment—a critical advantage for products sensitive to humidity.
ADF (Automatic Defrost): An advanced defrost control system that monitors frost accumulation and initiates defrost cycles only when necessary, rather than on a fixed schedule. This reduces energy waste and minimises temperature fluctuations during defrost cycles.
5.4 The Control System
Modern spiral freezers are equipped with sophisticated control systems that provide real-time monitoring and adjustment.
PLC (Programmable Logic Controller): The PLC serves as the brain of the system, receiving input from temperature sensors, belt speed sensors, and other monitoring devices, and adjusting outputs to maintain target parameters.
The outfeed stage is the final step in the freezing process and a critical transition point for maintaining product quality.
Temperature verification. As products exit the Spiral Quick freezer, their core temperature must be verified to ensure it has reached the target of -18°C or lower. This is typically done with an infrared thermometer or, for more precise measurement, a probe-type thermometer inserted into sample products. Some advanced systems incorporate through-belt temperature sensors that provide continuous monitoring without manual intervention.
Outfeed air curtain. Like the infeed opening, the outfeed opening is equipped with an air curtain to prevent cold air loss and warm air infiltration. This is particularly important during high-volume production when the outfeed conveyor is in continuous operation.
Synchronisation with downstream equipment. The outfeed conveyor must be synchronised with downstream packaging equipment—whether that is a bagging machine, a cartoning line, or a bulk palletising system. Speed mismatches can cause product accumulation, damage, or production line stoppages.
Product inspection. At the outfeed stage, products should be visually inspected for signs of freezing defects: surface cracking (common in high-moisture products like dumplings), white discolouration (indicating dehydration or freezer burn), or agglomeration (indicating inadequate separation during infeed).
Q1: What capacity range is available, and can it be customised?
Capacities typically range from 500 kg/h to 5,000 kg/h. Customisation is available for both higher and lower capacities, as well as for specific product types and production line configurations. The spiral tower diameter, belt width, and number of tiers can all be adjusted to match your specific requirements.
Q2: What is the typical installation time?
Installation typically about 4 weeks, depending on site conditions and the complexity of the system. This includes foundation preparation, equipment placement, piping and electrical connections, and commissioning.
Q3: How long does a spiral freezer typically last?
With proper maintenance, a well-built spiral quick freezer can operate for 15-20 years. Key factors affecting lifespan include belt wear, evaporator corrosion, and compressor maintenance.
