Industrial food production relies on precise thermal management to maintain product viability. Freezing processes dictate final product quality, safety compliance, and yield. Slow freezing rates cause severe cellular damage within the food matrix. Large ice crystals form slowly and puncture delicate cell walls, leading to massive drip loss upon thawing. Product texture degrades, leaving a mushy product. You lose physical weight and sensory quality. Scaling factory throughput introduces complex engineering challenges. You must maintain strict food safety standards while processing thousands of kilograms per hour. You also need to prevent product dehydration during the freezing cycle. Moisture loss inside the freezing chamber means lost yield. Solving these problems requires precise mechanical engineering and thermodynamic control. You must align specific food matrices with the correct thermal technology. Moisture content, physical fragility, and product size dictate your equipment choice. The right Quick Freezing Equipment optimizes your capital investment and maximizes long-term product yield.
Technology Alignment: Selecting between mechanical and cryogenic systems depends entirely on production volume, facility infrastructure, and acceptable CapEx vs. OpEx ratios.
Product-Specific Architecture: Equipment configurations—such as a fluidization IQF freezer versus a standard spiral—must be dictated by the physical characteristics and clumping tendencies of the food product.
Hidden Operational Costs: Energy efficiency, continuous run-times between defrost cycles, and automated Clean-in-Place (CIP) capabilities are critical factors that heavily influence long-term profitability.
Precision Control & Error Avoidance: Modern freezing requires advanced IoT temperature validation to ensure core temperatures reach 0°F (-18°C) consistently, avoiding common manufacturer mistakes like equipment overloading.
Risk Mitigation: Proper evaluation requires analyzing potential failure points, including belt jamming, frost buildup, and inadequate refrigeration plant capacity.
Every food item possesses unique thermal and physical properties. You must document the specific heat capacity of your target product before selecting machinery. Water content determines the latent heat of fusion required to change the product from a liquid to a solid state. Phase change from liquid water to solid ice requires removing 334 kilojoules of energy per kilogram. High-moisture foods require massive energy removal to freeze completely. Entry temperature drastically alters the required freezing time and thermal load on the compressor network. Product fragility dictates the mechanical handling method inside the chamber. Delicate raspberries cannot survive aggressive tumbling or deep product beds without shattering. Heavy meat cuts require robust belt support and high-velocity air impingement to penetrate the thick muscle tissue.
Food handling before the freezer dictates the overall success of the thermal process. You must manage pre-freezing thermal dynamics carefully across the entire processing line. Minimizing time in the temperature danger zone—between 40°F and 140°F (4°C to 60°C)—prevents exponential bacterial growth. Strictly controlling entry temperatures prevents thermal overloading of the freezer coils. Hot products entering the chamber will overwhelm the refrigeration capacity instantly. This causes rapid frost buildup, raises the internal air temperature, and halts production entirely. Pre-chilling products using hydro-coolers or ambient air tunnels reduces the mechanical burden on your primary freezer. Lowering the entry temperature by just a few degrees saves massive amounts of compressor energy downstream.
Establish accurate baseline and peak production requirements before evaluating machinery. Measure your throughput in kilograms or pounds per hour based on maximum line speeds. Peak production demands dictate your maximum refrigeration capacity needs. Undersizing equipment creates severe factory bottlenecks and dangerous safety failures. Pushing too much product through an undersized unit leads to soft product centers and rejected batches. Oversizing wastes tremendous amounts of electrical energy and capital budget. You must calculate the exact belt loading density in kilograms per square meter to match your hourly throughput goals. Proper capacity planning ensures the compressor network runs at optimal efficiency without short-cycling.
Audit your physical plant infrastructure thoroughly before shortlisting equipment. A new industrial freezer requires massive compressor support and large suction lines. Upgrading a central refrigeration plant often requires more capital than the freezer itself. You must verify your facility can handle the new mechanical load.
Measure exact floor space and ceiling clearances in the designated installation zone.
Calculate the available electrical amperage from your main factory distribution panel to handle motor inrush currents.
Audit the existing compressor capacity in your central ammonia or synthetic refrigeration plant.
Assess the structural load-bearing capacity of your factory floor to support heavy stainless steel enclosures.
Map out the drainage layout for sanitation wastewater routing and sloped floor requirements.
Mechanical systems utilize traditional closed-loop refrigeration cycles. They rely on ammonia, carbon dioxide, or synthetic refrigerants to move heat out of the product zone. Two-stage compressors pump refrigerant through massive evaporator coils located inside the freezing chamber. High-pressure fans blow air across these cold coils to chill the product on the belt. These systems require high initial capital expenditure for the equipment, piping, and installation. However, they deliver significantly lower long-term operational costs. They dominate high-volume, continuous production environments where daily tonnage is high. Mechanical systems provide stable, predictable freezing rates for bulk commodities operating multiple shifts per day.
Cryogenic systems apply liquid nitrogen (LIN) or liquid carbon dioxide directly to the product. The consumable gas rapidly absorbs heat from the food as it expands at extremely low temperatures, often reaching -196°C (-320°F) for nitrogen. This creates an ultra-fast crust freeze that locks in moisture instantly. Cryogenic units require lower initial capital expenditure and occupy a much smaller factory footprint. However, they rely entirely on consumable gases delivered by truck. This creates exceptionally high daily operational costs. They work best for specialized, fragile, or high-margin products. Low-volume operations often utilize cryogenic systems to avoid massive mechanical infrastructure upgrades.
Freezing Technology Comparison Matrix
Evaluation Metric | Mechanical Systems | Cryogenic Systems |
|---|---|---|
Initial Capital Expenditure | High (Requires compressors, condensers, large enclosures) | Low (Simpler enclosures, no mechanical compressors) |
Operational Expenditure | Low (Primarily electrical power for motors) | High (Continuous purchase of liquid nitrogen or CO2) |
Footprint | Large (Requires significant floor space and plant room) | Compact (Fits easily into existing processing lines) |
Freezing Speed | Moderate to Fast (Depends on airflow and coil size) | Ultra-Fast (Instantaneous crust freezing) |
Ideal Application | High-volume, continuous bulk production | Low-volume, high-margin, or highly fragile products |
The tunnel quick freezer utilizes linear conveyor belts to transport food. Product moves horizontally through a heavily insulated stainless steel enclosure. High-velocity cold air blasts across the belt surface via impingement jets to remove heat rapidly. This design suits flat, uniform products perfectly. Meat patties, fish fillets, and baked goods thrive in this environment. These items require strict orientation and minimal mechanical handling during freezing to maintain their shape. The primary limitation is physical space requirements. Linear tunnels require a massive factory footprint to achieve the necessary retention time. They offer lower capacity per square meter compared to vertical spiral solutions.

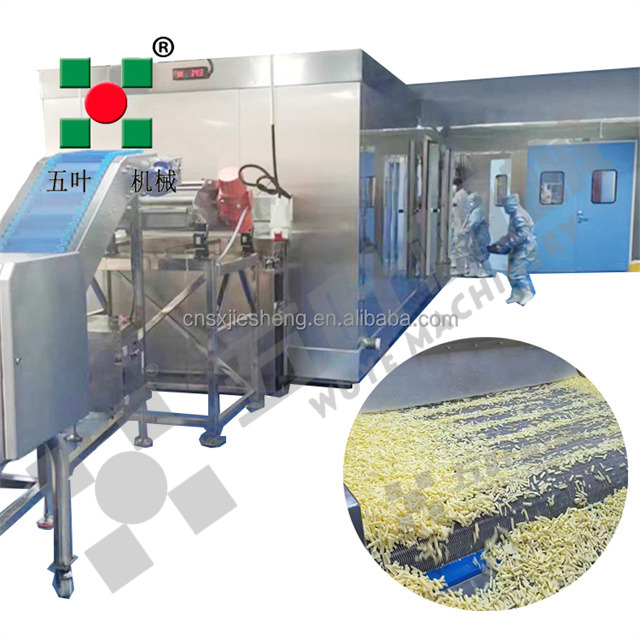

A fluidization IQF freezer relies on precise aerodynamic suspension principles. High-pressure upward airflow lifts the product off the perforated belt. This suspends the food in a turbulent cushion of freezing air, balancing aerodynamic drag forces against gravity. Items freeze individually without sticking together or forming massive ice blocks. This technology excels with small, wet, or particulate foods. Peas, diced meats, berries, and shrimp require this specific method to maintain individual piece identity. However, fluidization is highly sensitive to product weight and size variations. You must calibrate airflow precisely using variable frequency drives to prevent product blow-off or inadequate fluidization.
Spiral freezers utilize a continuous, vertically stacked helical conveyor belt. This design maximizes belt length within a minimal factory floor footprint. You achieve massive retention times in a highly compact space. High-volume production of packaged goods relies heavily on spiral configurations. Large poultry parts and ready-meals also require this extended dwell time to freeze completely to the core. The limitations involve significant mechanical complexity. Hundreds of moving parts, wear strips, low-tension drive systems, and bearings increase maintenance requirements. Extended production runs often cause severe frost buildup on the inner evaporator coils, requiring specialized defrosting sequences.
Sanitary construction is non-negotiable in modern food processing facilities. You must demand fully TIG-welded stainless steel enclosures with no overlapping joints or crevices. Sloped floors ensure immediate water drainage during heavy sanitation cycles. You must eliminate all horizontal surfaces inside the chamber where bacteria can harbor. Assess the integration of automated Clean-in-Place (CIP) systems carefully. Automated sanitation systems reduce manual labor and ensure consistent chemical application across all internal surfaces. Evaluate water consumption rates and the exact time required for complete washdown and drying cycles. Ensure the equipment utilizes IP69K washdown-rated motors and meets USDA, FDA, or regional equivalent standards for pathogen control.
Advanced temperature control prevents catastrophic food safety failures and product recalls. Programmable Logic Controllers (PLCs) manage the entire thermal process with absolute precision. Variable frequency drives adjust fan speeds dynamically based on real-time thermal loads entering the chamber. You must guarantee product core temperatures reach 0°F (-18°C) consistently before discharge. An industrial IQF freezer machine requires integrated IoT sensors and RTD probes. These sensors continuously monitor and record temperature profiles across the belt. Data logging provides absolute proof for food safety audits. Quality assurance tracking relies entirely on this immutable thermal data integrated into your factory SCADA system.
Airflow engineering dictates your daily electrical consumption and freezing efficiency. Targeted airflow design reduces fan motor energy draw significantly while preventing air bypass. It simultaneously maximizes heat transfer rates across the product surface. Dehydration prevention directly impacts your factory profitability. Rapid crust freezing locks moisture inside the cellular food matrix. This minimizes moisture loss during the extended freezing cycle. Protecting product weight protects your yield and profit margins. Compare sequential hot-gas defrosting with traditional air-defrost systems. Advanced defrosting allows extended production runs up to 14 days without shutting down the line for manual ice removal.
Financial evaluation requires strict mathematical modeling of all operational variables. You must calculate the exact break-even point for your specific production volume. Compare a high-efficiency mechanical system against a cryogenic alternative over a five-year period. Mechanical systems demand heavy upfront capital for compressors, piping, and installation labor. Cryogenic systems drain operational budgets daily through continuous liquid nitrogen consumption. High-volume factories recover mechanical capital costs rapidly through lower daily operating expenses. Low-volume operations often cannot justify the heavy mechanical infrastructure investment and opt for the flexibility of cryogenic tunnels.
Factor in the cost and availability of proprietary wear parts when evaluating machinery. Modular plastic belts require periodic replacement due to thermal fatigue and mechanical stress. Fan bearings and specialized temperature sensors fail over time in harsh, sub-zero environments. Availability of these spare parts dictates your operational downtime risk. Standardized components reduce emergency repair costs and simplify inventory management for your maintenance team. Complex mechanical spirals require more frequent component replacement than simple linear tunnels. You must stock critical drive components on-site to prevent catastrophic production halts.
Yield loss calculations often justify premium equipment purchases immediately. Standard freezers dehydrate products by several percentage points through sublimation. Advanced systems reduce this moisture loss significantly through rapid surface crusting and optimized airflow. A mere one percent reduction in dehydration saves massive tonnage annually. This retained water weight translates directly into sellable product. The revenue generated from retained moisture offsets the premium equipment price easily over the lifespan of the machine.
Yield Loss Impact Matrix
Production Volume (kg/day) | Standard Freezer Dehydration (3%) | Advanced Freezer Dehydration (1%) | Daily Product Saved (kg) |
|---|---|---|---|
10,000 | 300 kg lost | 100 kg lost | 200 kg |
25,000 | 750 kg lost | 250 kg lost | 500 kg |
50,000 | 1,500 kg lost | 500 kg lost | 1,000 kg |
100,000 | 3,000 kg lost | 1,000 kg lost | 2,000 kg |
Operational overloading destroys product quality and compromises food safety. Pushing throughput past rated capacity is a massive operational mistake. Ignoring high entry temperatures leads to incomplete freezing at the discharge end. This creates severe food safety hazards during frozen storage and transport. Implement strict standard operating procedures for product infeed rates. Utilize automated belt-speed adjustments tied directly to thermal load sensors. Train operators to respect the engineered capacity limits of the machine rather than pushing for artificial production records.
Frost buildup blinds the evaporator coils rapidly during continuous production. This reduces heat transfer efficiency immediately and raises internal air temperatures. It forces unplanned production halts for manual defrosting procedures. Specify equipment with wide-fin spacing on evaporators to handle frost accumulation without choking airflow. Integrate moisture-removal systems at the product infeed to block ambient humidity from entering the chamber. Manage factory air pressure to prevent warm, moist air from infiltrating the freezer enclosure through the discharge ports.
Mechanical belt failures cause catastrophic line downtime and product loss. A jammed belt inside a freezing chamber requires expensive emergency repairs and ruins the product currently inside. Implement predictive maintenance sensors immediately upon installation. Monitor vibration, motor amperage, and belt tension continuously through your PLC. Select robust belt materials engineered specifically for extreme temperature differentials. Perform rigorous visual inspections of wear strips, drive sprockets, and belt links weekly.
Facility integration bottlenecks ruin overall factory efficiency. A new freezer can starve the existing refrigeration plant of capacity. This causes dangerous temperature fluctuations across other factory zones and cold storage rooms. Conduct a comprehensive thermal load audit of the entire facility prior to procurement. Verify your compressor capacity can handle the new peak load requirements during summer months. Upgrade suction lines and valve stations to ensure adequate refrigerant flow to the new equipment.
Conduct a comprehensive thermal load audit of your existing refrigeration plant to determine available compressor capacity.
Calculate your current product moisture loss percentages to establish a baseline for yield improvement.
Schedule a physical pilot test with equipment manufacturers using your specific food products to verify freezing times.
Draft a strict sanitation protocol detailing water usage and chemical application times for the new line.
A: A tunnel freezer uses a linear footprint, making it ideal for flat products requiring strict orientation and short retention times. A spiral freezer uses a vertical footprint, maximizing belt length in a small area. Spirals are designed for high-volume products requiring long retention times, like packaged ready-meals or large poultry parts.
A: High-pressure upward cold air lifts the product off the belt, suspending it in an aerodynamic cushion. This turbulent airflow crust-freezes the surface instantly while keeping individual pieces separated in mid-air. This prevents wet or sticky products from freezing together into solid blocks.
A: The biggest error is overloading the machine beyond its rated capacity. Failing to pre-chill products to the correct entry temperature is another major mistake. Finally, inadequate monitoring of the 0°F (-18°C) core temperature target leads to severe food safety failures and product spoilage.
A: Mechanical industrial freezing systems typically operate efficiently for 15 to 25 years. This lifespan depends entirely on rigorous preventative maintenance, proper operational loading, and strict daily sanitation practices. Cryogenic systems may have different lifecycles depending on the structural integrity of the enclosure.
A: Pre-chilling lowers the product's entry temperature, significantly reducing the thermal load on the freezer's evaporator coils. This prevents rapid frost buildup, saves compressor energy, and ensures the equipment can maintain its rated hourly throughput without stalling or failing to reach core temperature targets.
