In high-volume food manufacturing, the freezing process represents a critical operational bottleneck. Throughput, energy efficiency, and product integrity intersect directly at this stage. Plant managers increasingly invest in advanced freezing technology to scale operations and handle larger batch sizes. Upgrading your equipment helps maintain a strict competitive edge on the production floor. Procuring the wrong freezing equipment results in severe operational penalties. You will face excessive product dehydration and immediate yield loss. High energy expenditures and frequent mechanical downtime will disrupt your daily production schedules. Catastrophic hygiene compliance failures can shut down entire facilities and trigger massive recalls. This guide provides a rigorous, vendor-neutral evaluation framework. You will learn how to specify and procure a Spiral Quick Freezer accurately. The right system aligns perfectly with your facility's thermal loads, product characteristics, and long-term operational goals.
Lifecycle Costs Outweigh CapEx: Energy consumption, maintenance, and sanitation downtime over a 10-to-15-year lifecycle will significantly exceed the initial purchase price of the freezer.
Product Characteristics Dictate System Design: Variables such as surface stickiness, fragility, moisture content, and dimensions dictate the required belt type, airflow dynamics, and refrigeration capacity.
Sanitary Design is Non-Negotiable: Features like seamless TIG welding and automated Clean-in-Place (CIP) systems are mandatory for safe food production, mitigating bacterial harborage, and reducing sanitation turnaround times.
Facility Constraints Drive Configuration: Vertical integration and footprint limitations require precise engineering to match inlet/outlet configurations without disrupting existing processing lines.
Accurately sizing your freezing equipment requires precise thermal load calculations across three distinct cooling phases to prevent under-sizing your refrigeration plant. However, you don't need to worry about the complex math. Simply provide us with your product data and workshop dimensions, and our engineering team will handle the rest. We will calculate the exact sensible heat, latent heat of fusion, and total British Thermal Units (BTUs) or kilowatts required per hour to deliver a perfectly customized and sized solution for your facility.

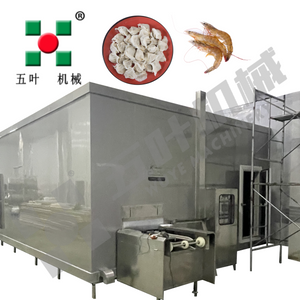

Product moisture content and surface stickiness heavily influence your choice of belt mesh and airflow velocity. High-moisture products tend to freeze together or stick to the belt surface. You must specify a belt with the correct open area and surface material to prevent adhesion. Processing fragile berries requires extremely gentle handling. You achieve this inside an IQF spiral freezer designed for minimal agitation and precise vertical airflow. Conversely, handling dense, high-carbohydrate loads requires different engineering. A pizza bread spiral quick freezer demands specific tier clearances to accommodate rising dough. It also requires extended dwell times to remove the high latent heat trapped inside baked goods.
Calculate your peak production rates in pounds or kilograms per hour. This sizes a high capacity spiral freezer accurately for your line. Factor in future scalability to avoid severe capacity bottlenecks later. Do not size the system based solely on steady-state averages. You must account for surge loads from upstream cooking equipment. If your fryer discharges a double batch, the freezer must handle that sudden thermal spike without allowing the internal air temperature to rise.

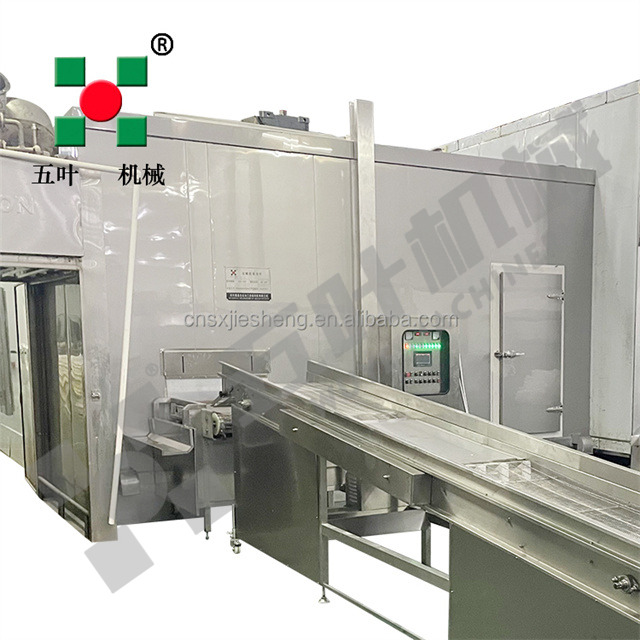

Audit your available floor space and ceiling height meticulously. Verify the structural load-bearing capacities of your concrete slab. Vertical freezer integration requires massive structural support. Heavy tier configurations concentrate weight on a small footprint. A fully loaded spiral system can exert thousands of pounds of force per square foot. Address the logistical challenges of aligning infeed and outfeed elevations. The freezer must match upstream fryers and downstream packaging lines perfectly. Misaligned elevations require complex, space-consuming transfer conveyors. These conveyors increase maintenance points and risk product damage.
Traditional mechanical systems utilize pumped liquid refrigeration. They typically run on ammonia (R-717) or carbon dioxide (R-744)+ Freon R-507 refrigerants. These systems excel in high-volume, continuous production environments. They prioritize long-term operational efficiency over initial footprint constraints. Pumped liquid overfeed systems ensure maximum evaporator coil efficiency. The liquid refrigerant floods the evaporator tubes, and the excess liquid returns to a central accumulator. This constant washing of the tubes maximizes heat transfer. Mechanical systems require significant initial infrastructure and engine room space. They deliver highly consistent freezing for massive product volumes. You must manage airflow carefully to minimize product dehydration. High-velocity air strips the thermal boundary layer from the food. This accelerates freezing but can draw out surface moisture if the air is too dry.
Cryogenic systems use liquid nitrogen (LIN) or liquid carbon dioxide (LCO2). These refrigerants provide ultra-rapid freezing through direct impingement. Cryogenic units fit best in facilities facing severe space constraints. They are ideal for lower throughputs or highly fragile products. The rapid temperature drop causes immediate crust freezing. This locks in moisture and prevents cellular damage. Cryogenic freezers require minimal initial infrastructure compared to mechanical systems. They do not need a central refrigeration engine room or massive compressor racks. However, they rely entirely on continuous consumable refrigerants. You must install proper exhaust systems to manage expanding gases safely. Carbon dioxide gas displacement requires strict safety monitoring protocols to protect plant personnel from asphyxiation risks.
Mechanical systems require substantial upfront capital investment. They operate with high efficiency and lower consumable resource usage over their lifespan. Cryogenic systems offer a smaller footprint and rapid installation timelines. They demand constant deliveries of liquid nitrogen or carbon dioxide, which creates volatile monthly operating expenses. Each technology impacts product dehydration rates differently. Mechanical systems require precise humidity control and optimized coil designs to maintain product yield. Cryogenic systems lock in moisture instantly through rapid crust freezing, resulting in near-zero dehydration loss. You must evaluate your specific production volumes to choose correctly. High-volume lines almost universally benefit from mechanical refrigeration. Specialty, low-volume, or highly fragile lines often justify cryogenic methods.
Table: Comparison of Refrigerants for Mechanical and Cryogenic Freezing Technologies
Feature | Ammonia (NH₃) | Freon-Type Refrigerant | Carbon Dioxide (CO₂) | Liquid Nitrogen (LIN) |
|---|---|---|---|---|
System Type | Mechanical | Mechanical | Mechanical | Cryogenic |
Infrastructure | Central plant and safety controls | Condensing unit and piping | High-pressure refrigeration system | Storage tank and exhaust |
Footprint | Large | Small to medium | Medium | Compact |
Freezing Speed | Fast | Moderate to fast | Fast | Ultra-rapid |
Key Feature | Efficient for large loads | Flexible and widely used | Low GWP, strong heat transfer | Extremely low temperature |
Best Application | Large continuous production | Small and medium systems | Low-temperature industrial freezing | High-value, rapid freezing |
Modern hygienic design establishes strict structural baselines for food processing equipment. Look for fully welded stainless steel enclosures throughout the system. Demand sloped floors to ensure rapid, complete water drainage during sanitation shifts. A standard slope of one-quarter inch per foot prevents standing water. Eliminate all hollow structural sections where bacteria can hide. Square tubing must be fully sealed. Seamless TIG welding prevents microbial harborage zones entirely. This ensures safe food production and compliance with strict regulatory audits.
Integrated Clean-In-Place (CIP) systems provide consistent, repeatable sanitation. They outperform manual cleaning by reducing human error significantly. Automated CIP systems utilize strategically placed spray balls and headers. These deliver precise chemical concentrations and high-pressure water directly to the belt, tiers, and evaporator coils. This reduces sanitation turnaround times and increases available production hours. You must ensure all internal components are easily accessible. Maintenance teams need clear access for visual inspection and ATP swabbing.
Fast, even freezing relies on precise airflow engineering. Horizontal and vertical airflow patterns impact product quality differently. Horizontal airflow works best for flat products like burger patties or fish fillets. Vertical airflow penetrates bulk products piled on the belt, such as diced poultry or vegetables. Proper airflow maintains cellular integrity and freezing uniformity across the entire belt width. Evaporator coil design determines continuous operation capabilities. Fin spacing must accommodate inevitable frost buildup during production. We recommend three to four fins per inch for high-moisture products. Sequential defrosting cycles allow continuous operation without shutting down the line. Hot gas defrost systems clear ice from coils rapidly by reversing the refrigeration cycle. This keeps the system running during long shifts. Variable frequency drives on fans allow precise airflow tuning. You can adjust air velocity based on specific product profiles to prevent blowing lightweight products off the belt.
Friction drive systems use traditional overdrive mechanisms. The central drum rotates slightly faster than the belt travels. This creates friction to pull the belt through the tiers. Direct drive systems use positive gear engagement instead. The drum features vertical drive bars that engage directly with the inner edge of the belt. Direct drive offers significantly lower belt tension. This reduces wear rates and extends the belt's operational life. Evaluate belt materials based on your specific product characteristics. Stainless steel provides high thermal conductivity and extreme durability for heavy loads. Modular plastic belts reduce product adhesion significantly. Plastic belts simplify cleaning and eliminate metal wear debris. Consider the open area percentage of the belt mesh. Higher open areas improve airflow but may allow small products to fall through the links.
Insulation panels dictate the continuous energy draw of the enclosure. Panel thickness and core material determine thermal efficiency. Polyurethane core panels offer superior R-values compared to expanded polystyrene. We recommend a minimum panel thickness of six inches for freezers operating below zero degrees Fahrenheit. Cam-lock joints provide tight seals, but continuous foamed-in-place joints offer better long-term thermal integrity. Integrating the freezer with a central refrigeration engine room maximizes efficiency. Packaged refrigeration units offer simpler, faster installation. However, packaged units may draw more power over their lifespan due to smaller condenser capacities.
Floor insulation is critical to prevent frost heave. Uninsulated floors will eventually freeze the concrete slab and the soil below. The expanding ice causes severe structural damage to the facility foundation. You must install glycol heating loops or electric heat trace cables beneath the insulated floor slab. Heated door frames prevent access doors from freezing shut. This ensures operators can enter the enclosure safely for maintenance or inspection.
Proprietary wear parts complicate routine maintenance schedules and inflate inventory costs. Off-the-shelf, non-proprietary components ensure rapid replacement and availability from local industrial suppliers. A single hour of unplanned downtime causes severe production disruptions and product spoilage. Predictive maintenance sensors mitigate these risks effectively. Bearing temperature monitors provide early warnings of mechanical failure before the bearing seizes. Belt tension alarms alert operators before catastrophic jamming occurs. Specify standard PLC and VFD brands used elsewhere in your plant. This reduces the learning curve for your maintenance technicians. Standardized parts reduce the need to hold extensive spare inventory. Easy access to the drive motor and gearbox is essential. Confined space entry requirements complicate routine maintenance tasks significantly, so specify external motor mounts whenever possible.
Retrofitting new equipment into an active plant carries significant risks. Structural modifications and extended line shutdowns disrupt daily output. Mitigate these risks through meticulous phased installation planning. Conduct thorough factory acceptance testing (FAT) before the manufacturer ships the unit. Inspect all welds, verify dimensions, and run the belt dry during the FAT. Test all safety interlocks and emergency stop circuits. Pre-assemble modules off-site to accelerate on-site integration. Plan the rigging and craning process in extreme detail. Determine if roof removal or wall modification is necessary for entry. Coordinate with upstream and downstream equipment vendors. Ensure all transfer conveyors align perfectly with the freezer elevations to prevent product transfer failures.
Operator error leads directly to frost buildup and belt jamming. Incorrect settings cause incomplete freezing and massive yield loss. Mandatory vendor-led training programs are absolutely essential. Training must cover CIP operation and chemical handling procedures. Operators must understand defrost management and coil clearing sequences. Recipe-specific dwell time calibration requires hands-on training. The Human Machine Interface (HMI) should be intuitive and clear. Operators need to adjust fan speeds and belt speeds easily without navigating complex sub-menus. Establish clear standard operating procedures for daily startup and shutdown. Document all troubleshooting steps for common mechanical faults. Cross-train multiple shifts to ensure consistent operational knowledge across your entire workforce.
Vetting suppliers requires a rigorous procurement approach. You must provide comprehensive data to receive accurate proposals. Use the following checklist when drafting your Request for Quote (RFQ):
Specify exact product dimensions, weight, and bulk density.
Detail the precise entry temperature and target exit core temperature.
State the ambient plant conditions, including maximum summer temperature and humidity.
List all required certifications, including USDA, FDA, CE, or GFSI compliance.
Request detailed utility consumption estimates for water, compressed air, and electricity.
Demand verifiable reference installations from facilities processing similar products.
Require guaranteed performance metrics for yield loss percentages and freezing times.
Clarify the warranty terms for the belt, drive components, and evaporator coils.
Specify acceptable compressor brands and the exact refrigerant type required to align with your plant's operational and environmental standards.
Avoid failing to account for latent heat in baked goods. Never underestimate future throughput requirements when sizing the unit. A slightly oversized freezer provides operational flexibility, while an undersized unit creates a permanent production bottleneck.
The optimal freezing system matches your specific production realities. It must handle your exact thermal loads and spatial constraints without compromising product quality. It must meet the highest hygienic standards of your processing line to ensure food safety. Filter vendors first by their ability to meet sanitary compliance targets and energy efficiency goals. Evaluate their mechanical drive systems and airflow engineering capabilities thoroughly. Assess their long-term after-sales support and local parts availability. A well-engineered freezing system protects your product yield and maximizes your operational efficiency.
Take the following actions to advance your procurement process:
Conduct a comprehensive thermal load analysis of your heaviest product SKU.
Audit your facility's available floor space, ceiling height, and structural load capacities.
Draft a detailed RFQ including precise inlet and outlet temperatures.
Request verifiable reference installations from shortlisted vendors.
Schedule a factory acceptance test protocol for the final equipment selection.
A: A commercial unit typically operates efficiently for 15 to 25 years. This lifespan depends heavily on proactive maintenance and timely belt replacements. Strict adherence to daily sanitation protocols also prevents premature structural degradation. Upgrading control systems and replacing worn wear strips extends the operational life of the mechanical drive components.
A: Capacity calculation is straightforward: Daily Volume ÷ Operating Hours (e.g., 10,000 kg ÷ 10 hours = 1,000 kg/h). Just tell us your target throughput, and our team will handle the complex thermal and freezing calculations.
A: Direct drive systems use gear-engaged mechanisms, resulting in low belt tension and extended belt life. The drum directly engages the belt edge. Friction drive systems rely on an overdrive drum rotating faster than the belt to pull it through the tiers. This creates higher tension and requires more frequent maintenance on the wear strips.
A: Standard CIP processes involve multiple automated steps to ensure food safety. The sequence includes a pre-rinse, caustic foaming, high-pressure wash, and a final sanitizing rinse. Sloped floors and seamless TIG welded joints are mandatory for proper drainage. Automated spray balls must reach all internal surfaces, including the evaporator coils and the entire belt length.
A: Footprint varies drastically based on the vertical tier count and overall belt width. However, spiral configurations save significant floor space by utilizing vertical height. They stack the conveyor belt in a continuous helix, making them much more compact than traditional linear tunnel freezers that require massive horizontal floor space.
