| Availability: | |
|---|---|
| Quantity: | |
WUYE Machinery
Customizable
Fish, meat and fruits.
-40℃ to 0℃
12 months
Customized
R404, R507, Others
Compact structure
SUS304 stainless for food
Low noise operation
Easy to operate
Factory direct sales

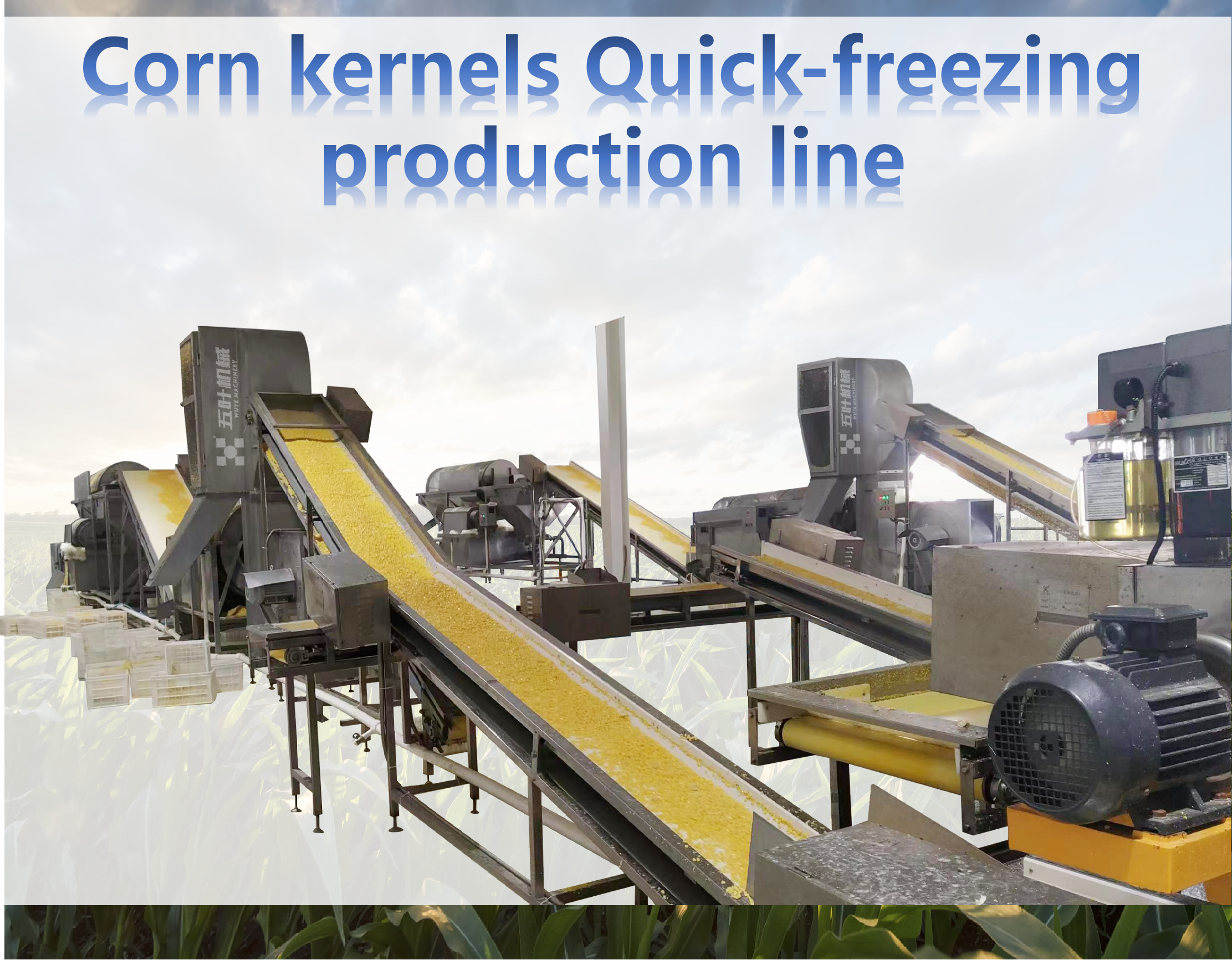

Applicable to: Corn.

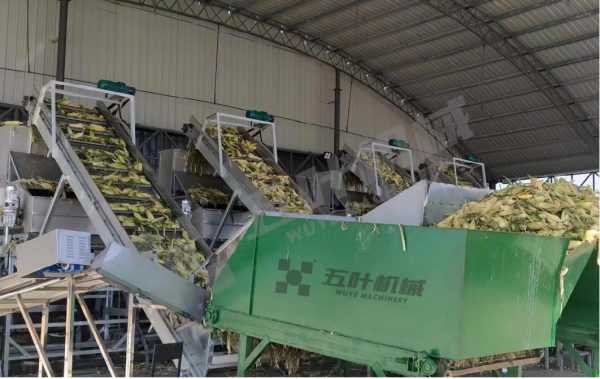

After the corn is harvested, the corn cobs are put into peelers.Corn into the production line, waste centralized transportation and disposal.
Name：Corn cob peeler
Origin：Shangyu city,Zhejiang province,China
Function：Remove the skin from the corn cob
Application：Corn cob

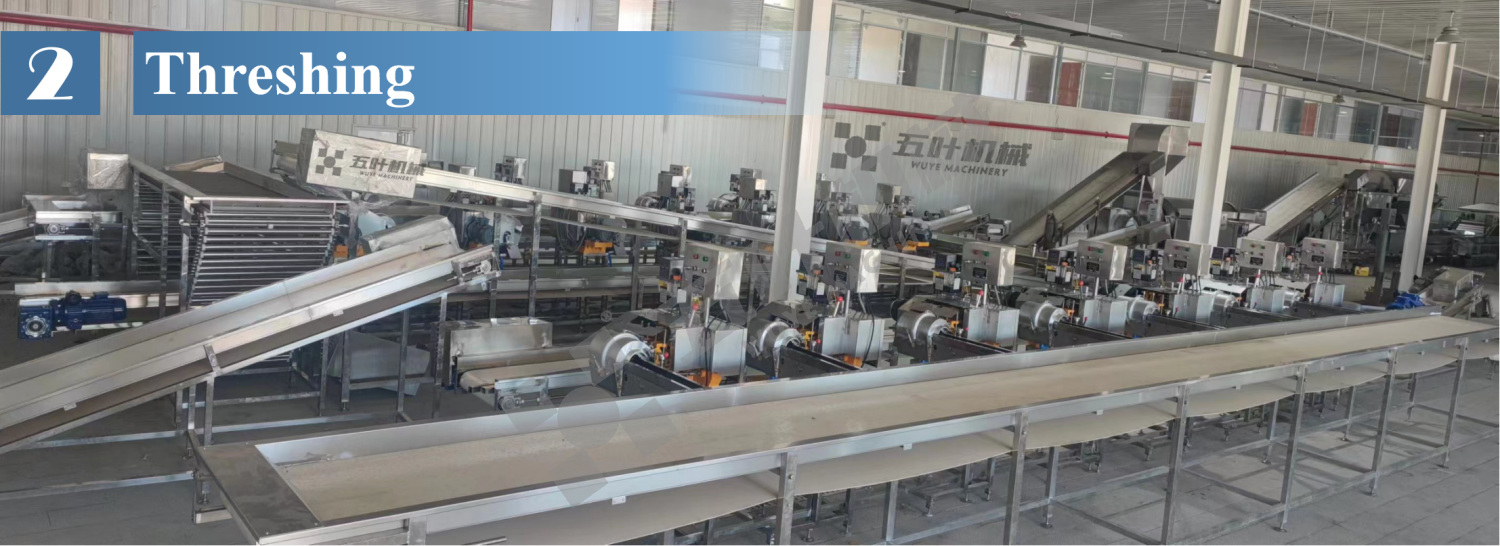

The corn cobs are threshed, the corn kernels are transported to the production line, and the waste corn cobs are transported to the designated place.

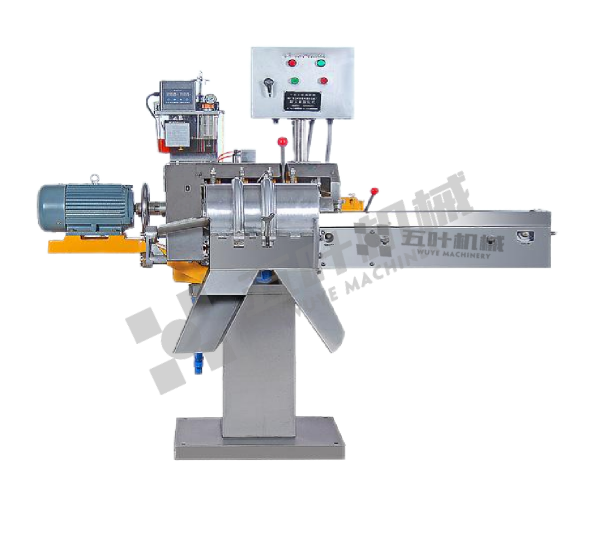

Name：Corn thresher
Origin：Shangyu city,Zhejiang province,China
Function：Threshing corn cobs
Application：Corn cob
Winnowing Separator

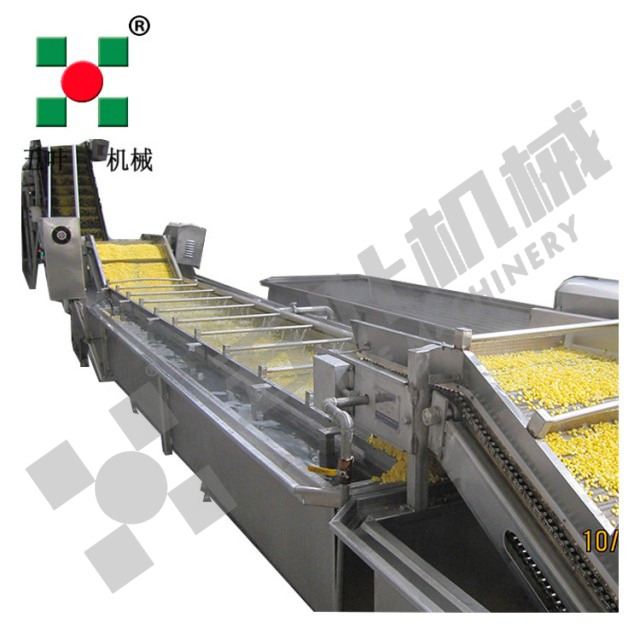

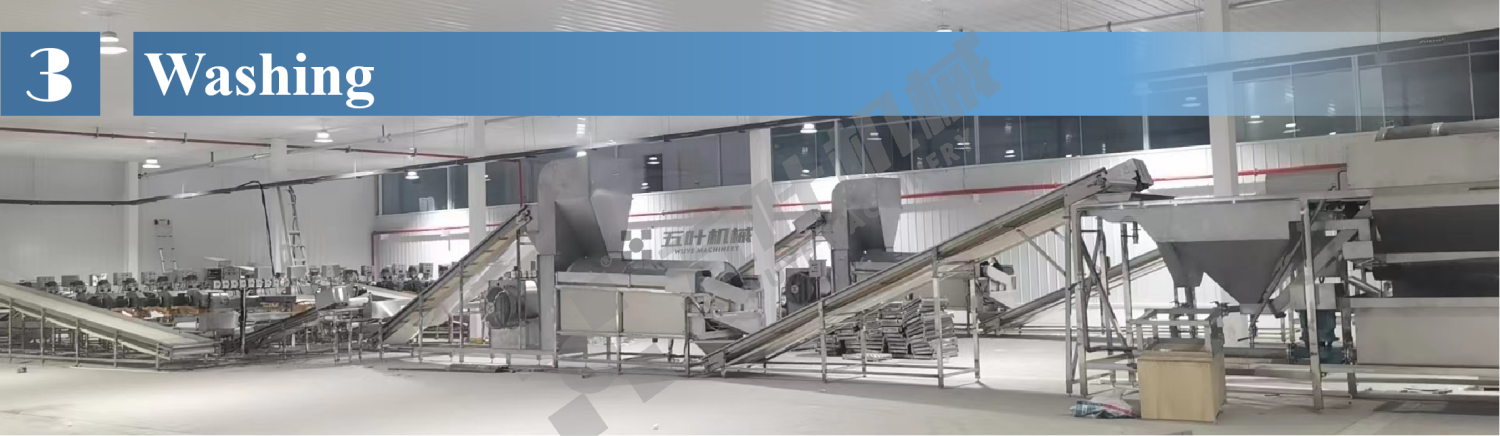

Drum washer
Drum remover

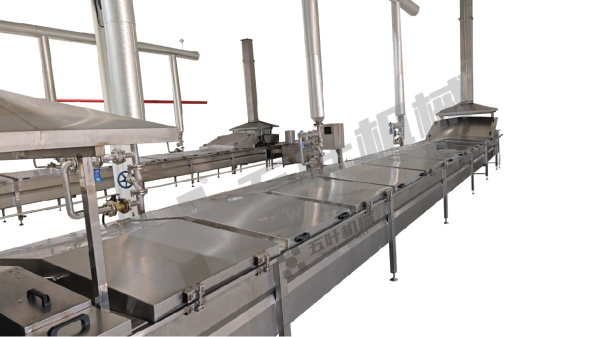

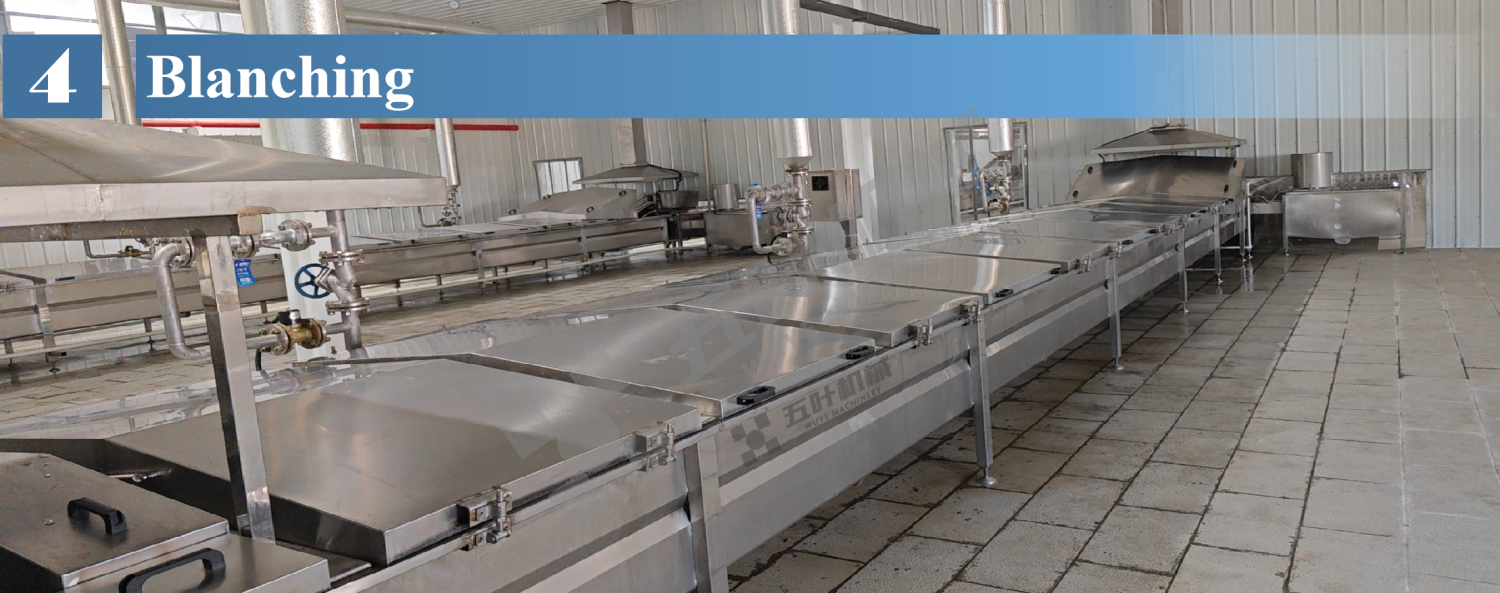

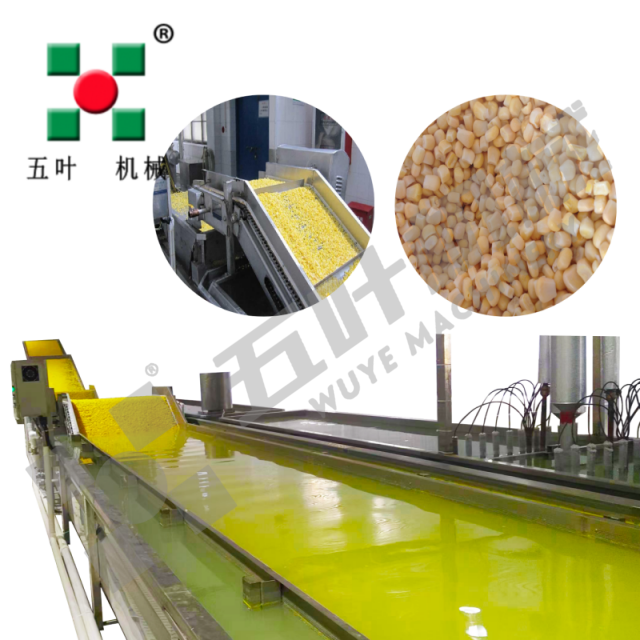

Name：Blanching machine
Origin：Shangyu city,Zhejiang province,China
Function：Blanching the corn kernels
Application：Corn kernels

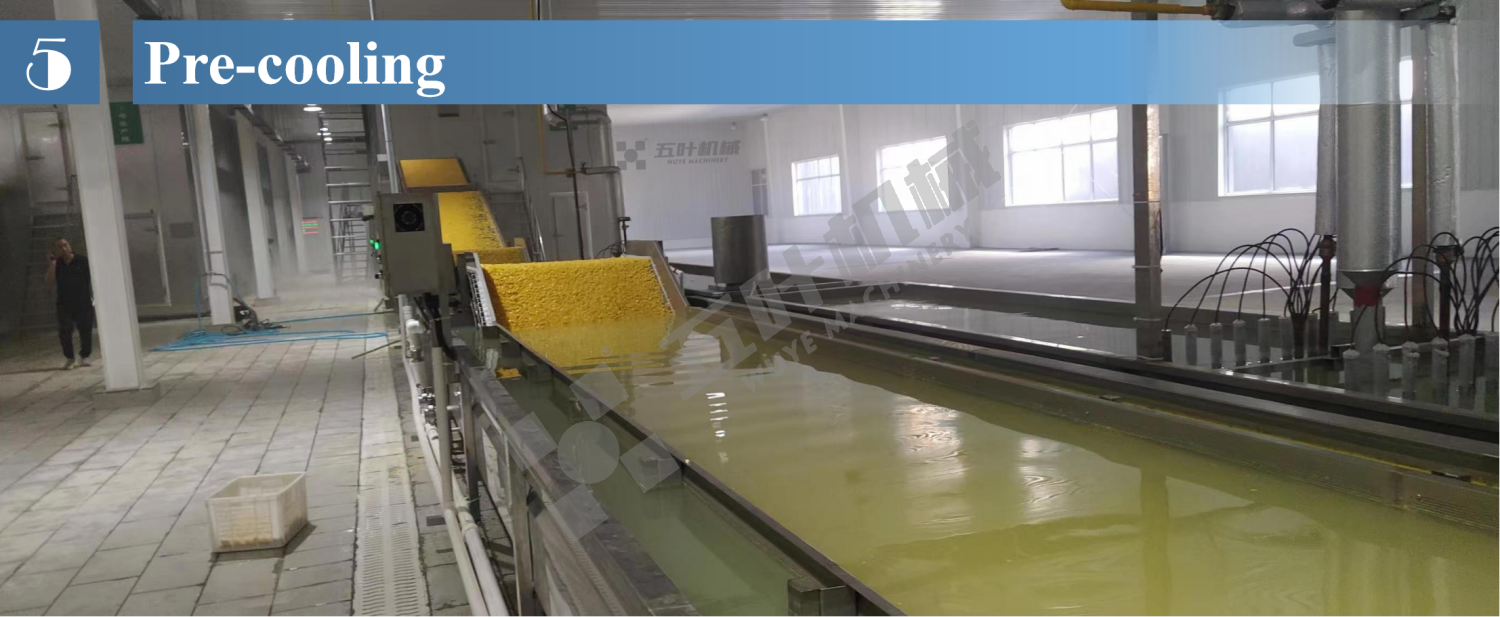

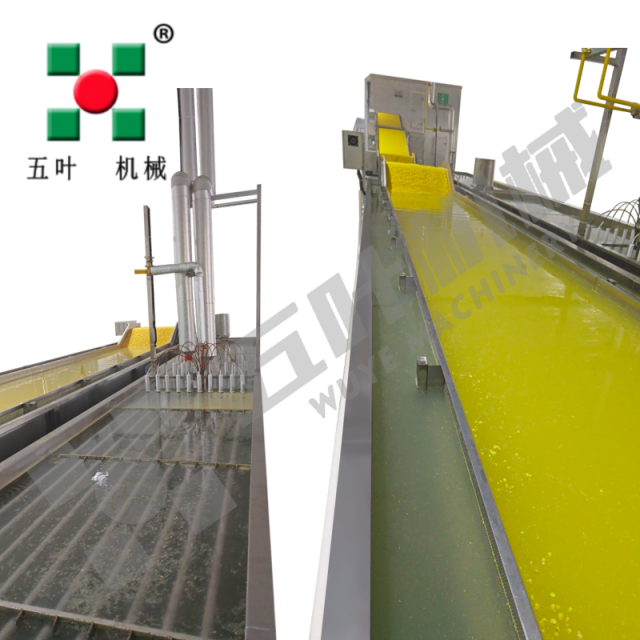

Name：Pre-cooler
Origin：Shangyu city,Zhejiang province,China
Function：Pre-cooling food
Application：Fruits,vagetables,meat and seafood.

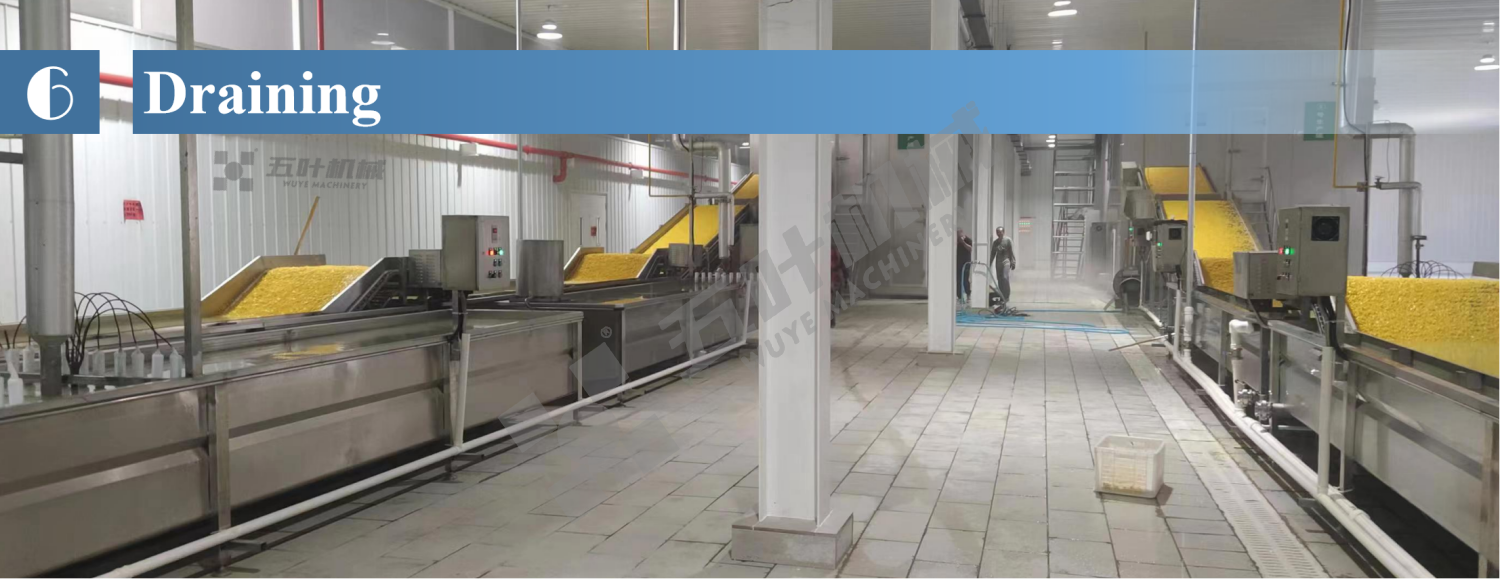

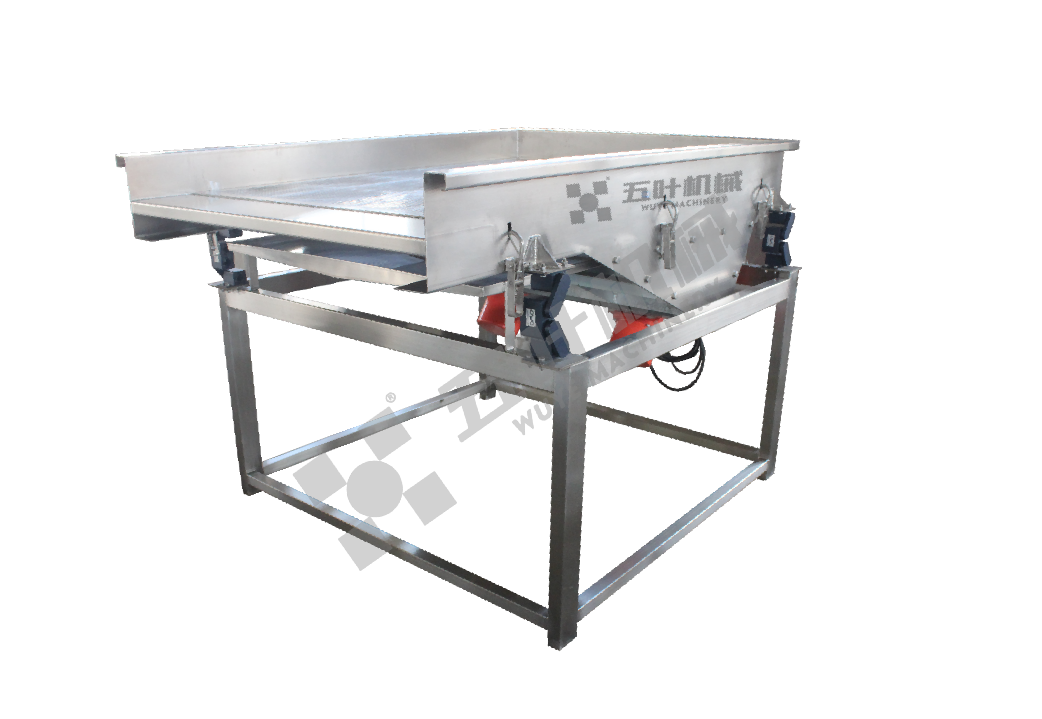

Name：Vibration drain machine
Origin：Shangyu city,Zhejiang province,China
Function：Draining the corn kernels
Application：Fruits,vagetables,meat and seafood.

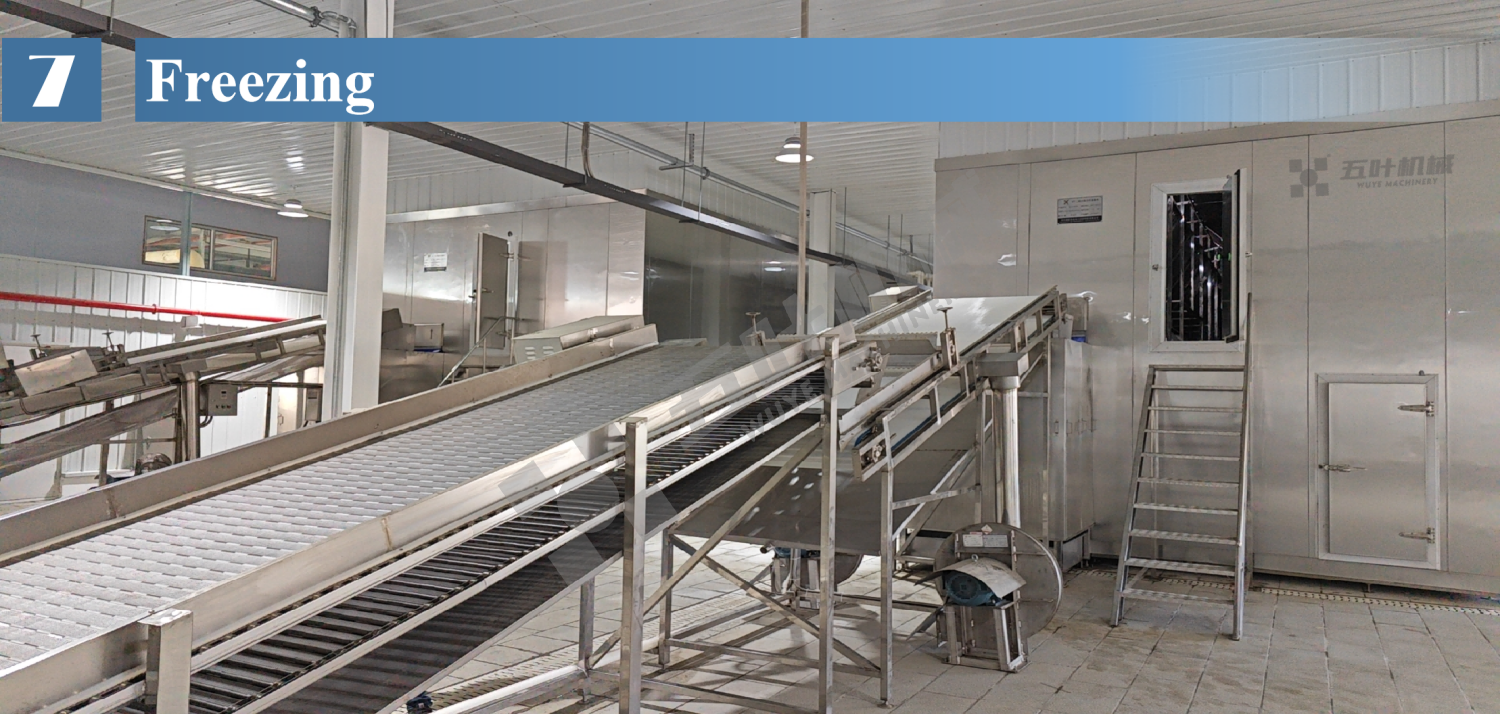

High-quality IQF products
This series of quick-freezing device is the best equipment to realize the fluidized monomer freezing of fruit and vegetable food and some seafood. Frozen products move in the rusty steel mesh belt, with the increase of airflow speed, the food layer begins to loosen; When the wind pressure reaches a certain value, the food particles no longer remain static, some particles suspended upward, resulting in bed expansion, voidage increases, that is, the formation of a fluidized bed; In this fluidized bed, the food in suspension state is blown by strong cold wind from bottom to top. All sides of the frozen food are surrounded by cold wind to realize rapid freezing of the frozen food and form monomer. The frozen food to be frozen quickly passes three stages of cooling, surface freezing and deep freezing, so as to obtain the highest quality frozen food.
Insul Ation System
The hea-insulating slorage booty is made olstairless stool polyurthane sandwich pani,and The intemal polyurethane的fled and toamedby morted hgnpesor toaringmachine under high pressure.
Evaporator
Using aluminum tube aluminum complete sheet, unique variable sheet distance design, extended the time between the frost.
Electric control box
You can take speed through the network, control the production time and display the speed and temperature in the library.
Tunnel freezer

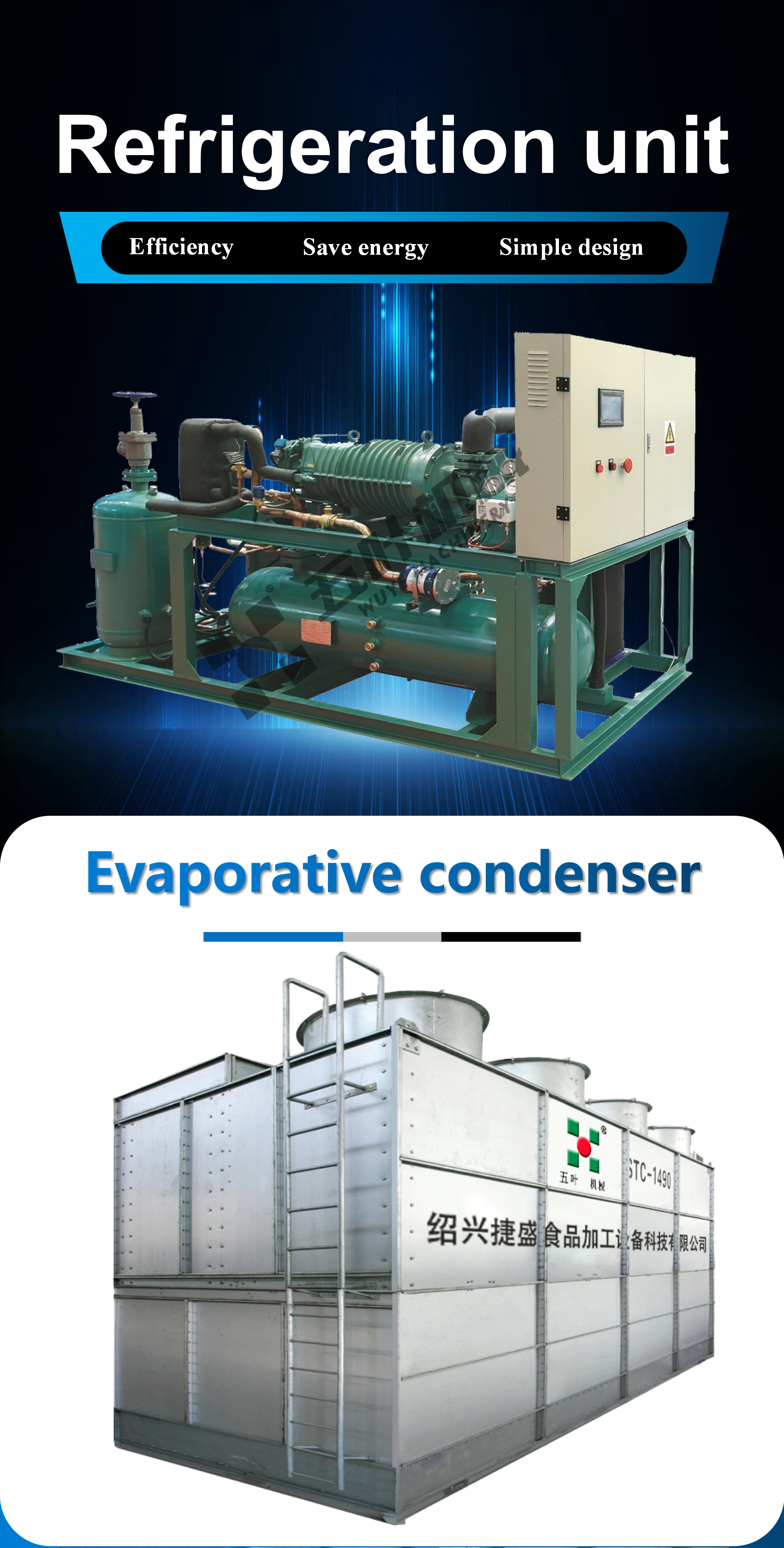

Refrigeration unit
Condenser
Our company one-stop set of quick-frozen solutions, using domestic and foreign advanced refrigeration design concept multiple parallel units, no barrel no pump technology, through the PLC in the program automatic energy adjustment to match the ever-changing cooling cooling that the refrigeration system maintain the best efficiency, to achieve energy saving, reduce operating costs.
1. Multiple units are connected in parallel and multi-level energy regulation is used to achieve timely and reasonable matching according to the actual refrigeration capacity required for production, which saves more than 30% energy compared with a single unit.
2.It can match multiple evaporators to achieve one machine suitable for different evaporation temperatures, making the refrigeration system run in the most energy-saving working state.
3. Adopt high-quality compressors and accessories from home and abroad, with reliable performance, stable operation and long service life.
4. Simple design, the refrigeration main unit, accessories and controls are concentrated in one body, which fully saves the machine room space and is extremely convenient for operation and maintenance.
5. The use of fault separation technology can ensure that when some machines fail, other machines can still operate normally, ensuring normal and continuous production for customers.
STC series evaporative condensers are the latest type of evaporative condensers developed by our company by absorbing the latest technologies and manufacturing processes at home and abroad. They are one of many types of condensers and are widely used due to their energy and water saving, high efficiency and low operating cost.
When the equipment is running, the refrigerant in the coil is reversely exchanged by the cooling water from top to bottom and the natural air from bottom to top, and the heat is taken away from the air; the water passing through the coil flows into the packing layer and then flows into the water pan after being cooled. The small water droplets passing through the top layer are collected by the water collector, thus reducing the water escape rate.
The Liquid Nitrogen Tunnel Freezer utilizes ultra-low temperature (-196°C) liquid nitrogen (LN2) to achieve instant freezing, preserving product freshness, color, and nutritional value—critical for high-value items. By rapidly lowering product temperatures (at a rate of 5–10°C per second), it minimizes cell damage in delicate foods like sushi-grade fish, gourmet pastries, and probiotic yogurts. This equipment is also used in pharmaceutical processing for stabilizing temperature-sensitive biologics.
The 24-Hour Cycle Plate Freezer is specifically designed for commercial meat processing, enabling continuous freezing of bulk meat products such as beef cuts, poultry carcasses, and pork loins. Its hydraulically operated stainless steel plates apply uniform pressure to meat blocks, ensuring rapid heat transfer and minimizing ice crystal formation—critical for preserving muscle texture and juiciness. This equipment is widely used in abattoirs, meat packing plants, and distribution centers, supporting seamless integration into post-slaughter processing lines.
The Multipass Belt IQF Tunnel Freezer is engineered for large-scale food processing, offering low shrinkage and high product integrity across high-volume production runs. Its multi-tiered belt system maximizes freezing efficiency by exposing products to cold air (-30°C to -40°C) during multiple passes, making it ideal for dense or irregularly shaped items like French fries, chicken nuggets, and pizza toppings. This equipment integrates seamlessly into automated lines, from pre-processing to packaging, ensuring consistent quality in mass-produced frozen foods.
The Industrial IQF Freezer Machine employs Individual Quick Freezing (IQF) technology to freeze food products individually, preventing clumping and preserving texture—key for products sold as single pieces (e.g., frozen peas, shrimp, and berries). It uses high-velocity cold air (-30°C to -40°C) to create a protective ice glaze around each item, locking in moisture and nutrients. This equipment is essential for processors of fruits, vegetables, seafood, and ready-to-eat meals, supporting both retail and foodservice supply chains.
