Product Description
|
Design highlights
Food-grade material
Trolley + material tray system
Optimization of the air supply system
1. Food-grade material
The components that come into contact with materials (such as material trays and trolleys) are made of 304 stainless steel or food-grade plastic, with smooth surfaces that are easy to clean, preventing metal corrosion and contamination of the materials.

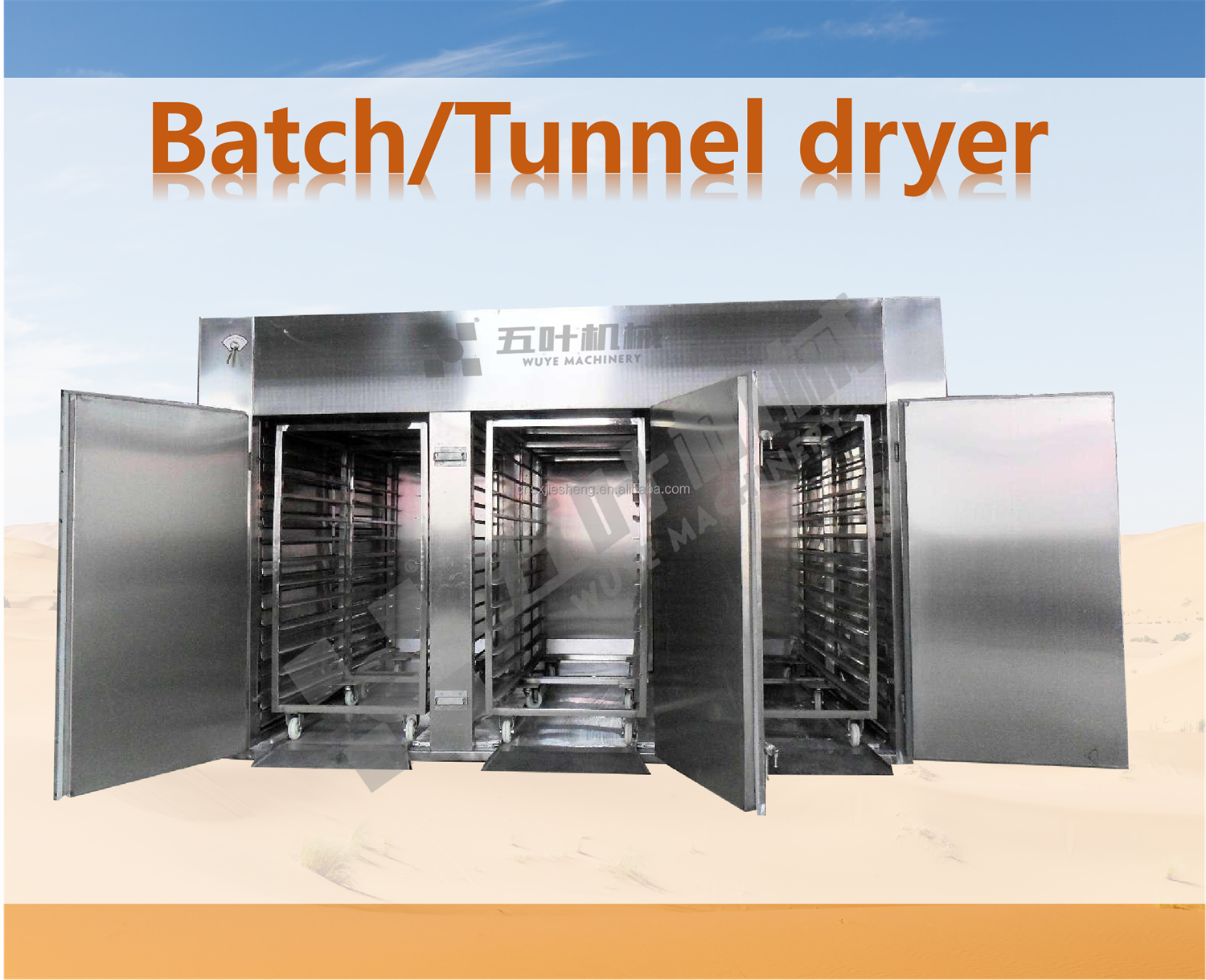

2. Trolley + material tray system

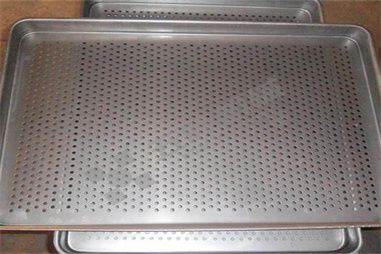

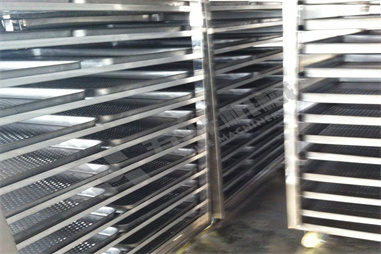

High-efficiency loading: The drying vehicle adopts a multi-layer frame design (commonly 6 to 20 layers), and is equipped with metal mesh material trays (such as stainless steel or aluminum alloy). The material has a large flat spreading area and good hot air penetration, making it suitable for sheet-like and granular materials (such as vegetables and medicinal materials).
Flexible movement: The bottom of the trolley is equipped with universal wheels or directional wheels, allowing for quick entry and exit from the drying chamber. When combined with the track design, it can achieve continuous operation in a production line style, reducing the intensity of manual handling.
3. Optimization of the air supply system
Hot air circulation technology: Equipped with multiple sets of fans and deflector plates, it achieves a "horizontal + vertical" three-dimensional hot air circulation, avoiding local temperature imbalance. The drying efficiency is 20%-40% higher than that of traditional single-direction equipment.
Intelligent dehumidification: Adjustable dehumidification ports are set at the top or side of the drying chamber. The dehumidification volume is controlled through the linkage of humidity sensors to prevent excessive drying or moisture regain of the materials.
|
Applicable
Case of Dried fruits-Apple

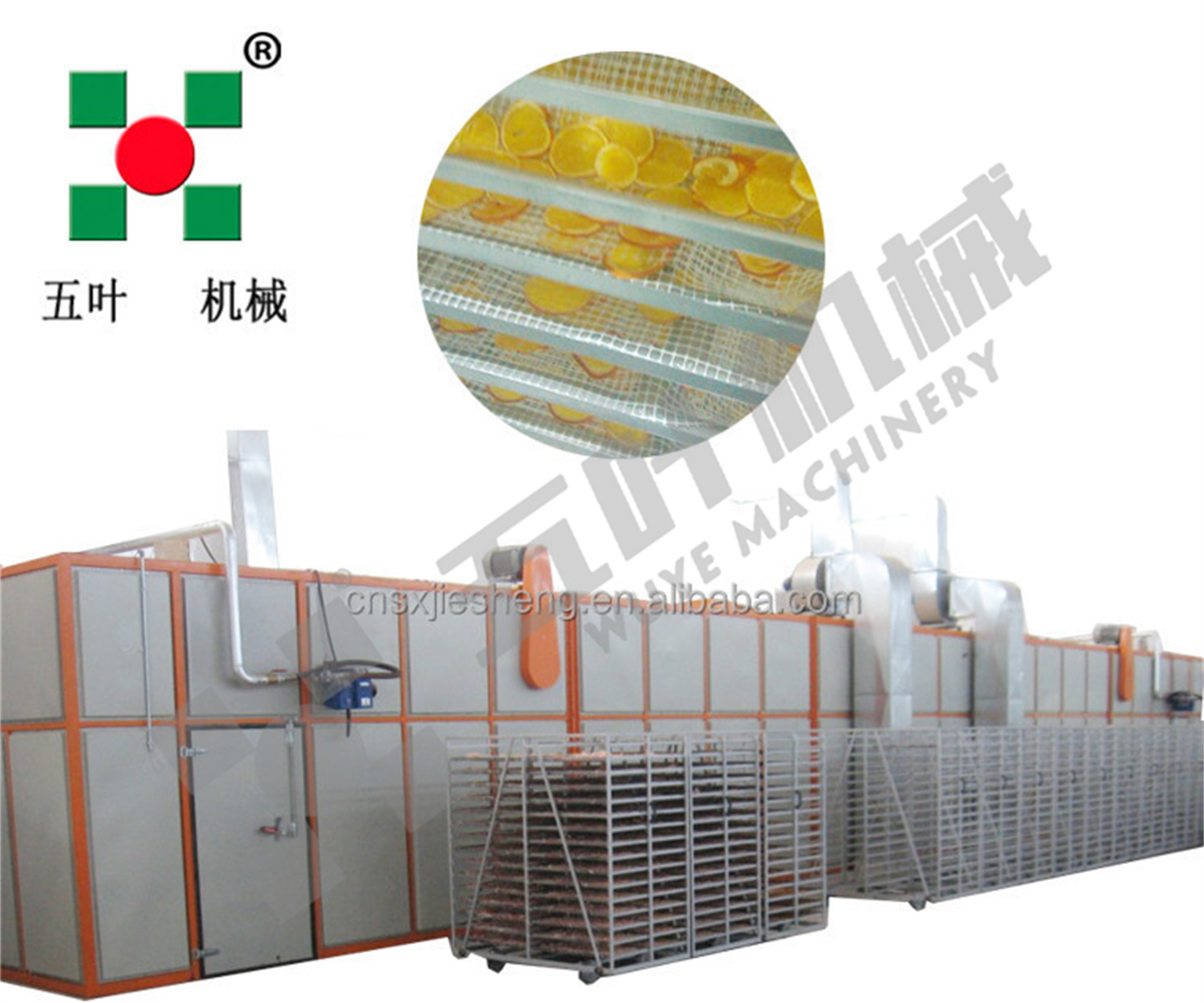

Case of Dried fruits-Lemon
|
Technical parameters
When the dryer work, the material to be dried is placed baking dish, place baking tray drying the car, drying the car turn into the entrance from the drying chamber, at the same time, hot air from the air supply system of dry material from the drying chamber end into the run reverse and drying the car, and materials for full contact. Drying chamber automatic temperature control,humidity and moisture automatically discharged by the fan.
|
