Industrial food processors consistently balance the need to maximize daily throughput, optimize physical floor space, and strictly control product drip loss. When expanding production lines, facilities must choose machinery that aligns perfectly with their specific spatial constraints and product characteristics.

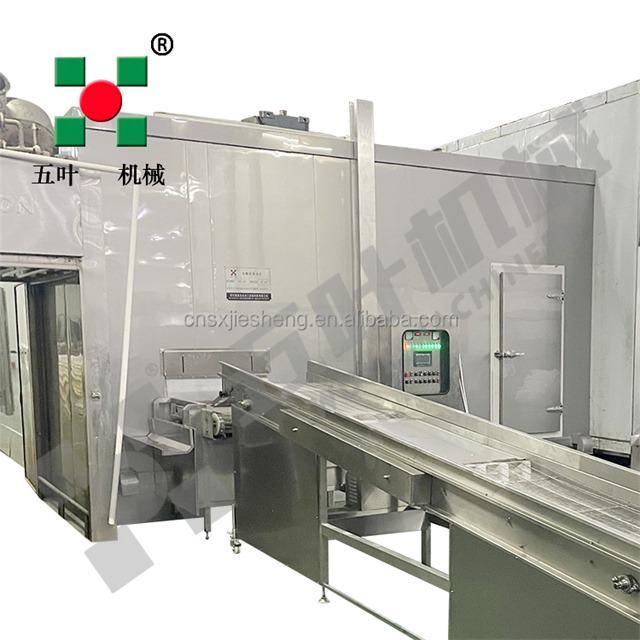

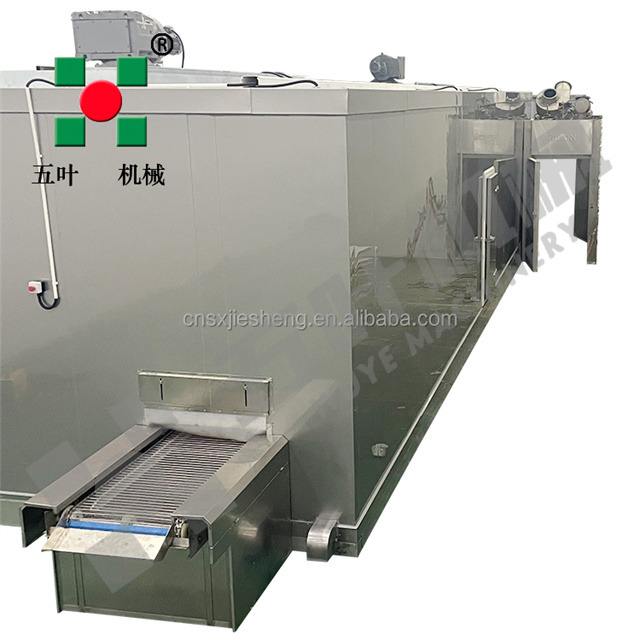

For plants where maximizing vertical space is the most practical solution, the modern Spiral Quick Freezer serves as an engineered balance of throughput, space efficiency, and high yield. Rather than replacing other technologies, it provides a specialized footprint alternative to traditional linear layouts, ensuring that facilities with limited horizontal floor space can still achieve high-capacity deep freezing.
In this article, we unpack the exact mechanical principles behind spiral freezing technology. We will explore its thermodynamic characteristics and operational considerations in detail. By understanding these technical aspects, production engineers and facility managers can use these practical insights to make informed, needs-based evaluation decisions for their specific production lines.
Modern spiral systems utilize 360-degree continuous freezing to maximize throughput (often ranging from 300 to 10,000 kg/h) within a severely condensed footprint.
Thermodynamic efficiency relies heavily on airflow patterns (vertical vs. horizontal) and high-grade components like hydrophilic film aluminum fins.
Scientific benchmarks demonstrate that optimal spiral freezing can restrict product drip loss to as low as 0.55% – 0.6%, preserving cellular integrity.
Evaluating a system requires weighing single vs. double spiral configurations against facility height, energy consumption, and product dwell time.
Understanding the internal mechanics helps you optimize daily production. These machines are far more than simple refrigerated boxes.
Structural Design & Layout Flexibility
Equipment selection depends entirely on a facility's specific floor plan and spatial availability. For processing plants aiming to optimize their vertical space, stacking conveyor tiers vertically provides a highly effective way to achieve massive cooling capacity within a concentrated area. With typical belt widths ranging from 356 to 1372 mm, this vertical configuration efficiently handles high production volumes and integrates seamlessly alongside existing processing lines.
To meet diverse customer needs and perfectly match different facility workflows, the structural configuration of the spiral freezer can be highly customized. Common orientation options include:
Low-in / High-out setups: Ideal for transferring products smoothly to elevated packaging zones.
High-in / Low-out setups: Highly practical when products exit a high-elevation cooking or baking stage.
Flexible Routing (e.g., 90-degree or 180-degree turns): Designed to navigate logically around existing facility support columns or specific architectural features.
These adaptable designs ensure the machinery fits naturally into existing floor plans. This modular approach allows manufacturers to provide a solution that is tailored precisely to the specific infrastructure of each plant.
Traditional vertical or downflow air patterns have strict limitations. Modern horizontal impingement changes the game completely. It uses the Coandă effect to wrap cold air tightly around passing products. High-velocity air hugs the product surface aggressively. This advanced airflow can accelerate surface crust freezing by up to 4x compared to older models.
Evaporators play a massive role here. High-grade hydrophilic film aluminum fins ensure maximum thermal transfer. They shed condensation rapidly during defrost cycles. Precision-controlled variable frequency drives (VFDs) manage conveyor speeds constantly. They guarantee exact dwell times for different product types. You can adjust fan speeds and belt speeds simultaneously for optimal heat exchange.
Choosing the right configuration determines your operational flow. Let us evaluate the core differences between these two primary architectures.
These systems utilize a single rotating drum to move the belt upward or downward. They are usually limited to specific inlet and outlet height differentials. They work best for mid-tier capacity requirements. Facilities enforcing strict energy consumption limits often prefer them. They handle highly uniform product lines perfectly. A single drum minimizes internal mechanical complexity, which simplifies routine maintenance routines.
These machines feature twin drums often running in sequence. Products can enter and exit at the exact same elevation. They suit high-volume commercial processing heavily. Thick or dense products requiring extended dwell times benefit greatly from the doubled belt length. Facilities needing optimized spatial routing rely on them to return products to the original working floor level.
Weighing capital expenditure against ongoing mechanical maintenance remains critical. Belt tensioning across two separate drums requires stricter operational oversight. Cooling efficiency must justify the dual-drum footprint in your plant.
Feature | Single Spiral System | Double Spiral System |
|---|---|---|
Best Capacity Fit | Mid-tier (300 - 3,000 kg/h) | High-volume (up to 10,000 kg/h) |
Inlet/Outlet Elevation | Different elevations required | Can be same elevation |
Maintenance Complexity | Low (single tension zone) | Moderate (dual tension zones) |
Energy Draw | Lower baseline consumption | Higher draw for twin drive motors |
Yield directly impacts your bottom line. Freezing science dictates this yield entirely.
Industry baselines show remarkable results when upgrading to modern aerodynamics. Rapid crust freezing in a controlled spiral environment minimizes moisture escape heavily. Scientific benchmarks show it can drop drip losses to roughly 0.55% – 0.6%. This directly boosts your weight-based revenue. Retaining internal water weight means you sell more product per batch.
Modern zones manage thermal shock efficiently through sequential phases.
Ambient Pre-cooling: Gradually lowers surface temperatures. This prevents massive steam loads from overwhelming the evaporator coils.
Ultra-fast Crust Freezing: Locks in vital moisture immediately. A hardened exterior shell prevents inner moisture from evaporating.
Deep Core IQF Freezing: Reaches the target internal temperature safely. Slows down air velocity to penetrate the product core without dehydrating the surface.
Processing Capabilities: IQF Spiral Freezer for Aquatic and Meat
Different food categories naturally demand highly specific thermal approaches depending on their moisture content, density, and the facility's unique quality standards. Because every production line has its own specific requirements, the optimal freezing strategy involves selecting and adjusting equipment based entirely on the product itself.
For aquatic and meat processing, the IQF Spiral Freezer is designed to offer maximum operational flexibility. Rather than relying on fixed parameters, it allows facility managers to easily tailor temperature variations, airflow, and belt speeds via the intelligent PLC system. This ensures that the equipment can be perfectly calibrated to match the precise needs of any specific product, delivering the exact thermal profile the customer requires.
Safety and physical quality matter most in meat processing. Rapid temperature drops prevent dangerous bacterial growth. They also retain natural meat juices effectively. High-thickness products pose unique thermodynamic challenges. Primal meat cuts require specifically calibrated belt speeds. Deep-chill dwell times ensure thorough core freezing. Proper airflow prevents raw poultry pieces from fusing together during the transit phase.
Aquatic proteins remain incredibly fragile. Cellular degradation happens quickly due to high water content. An IQF Spiral Freezer for Aquatic and Meat solves this problem reliably. It utilizes specialized food-grade mesh designs. This prevents valuable products from sticking to the cold belt. Shrimp, scallops, and delicate fish fillets retain their premium texture. The precise horizontal airflow gently lifts lighter seafood items without blowing them off the conveyor.
Semi-baked doughs need strict structural preservation. Spiral systems maintain yeast integrity perfectly for later proofing. Multi-ingredient meals freeze uniformly across the tray. Every component reaches safe storage temperatures simultaneously. Pasta, sauces, and proteins stabilize without textural degradation.
Operational Reliability and Sanitary Management
Maintaining steady production and strict hygiene relies entirely on selecting the right operational configurations to perfectly match your facility's specific production cycles and workflow preferences.
Optimizing Continuous Thermal Performance
Depending on a facility's specific production schedule, different configurations are available to maintain optimal heat exchange efficiency. For processing plants requiring uninterrupted, multi-shift production cycles, automated airflow management systems (often referred to as ADF) can be integrated. These systems utilize compressed air strategically to maintain clear airflow pathways across the evaporator coils, smoothly supporting continuous, high-efficiency operation over prolonged production runs. The ideal configuration simply depends on the plant's operational duration and shift arrangements.
Hygiene & Food Safety Compliance
To meet various local and international food safety standards (such as HACCP or FDA guidelines), facilities can tailor the equipment's sanitary features based on their specific product requirements. Fully welded SUS304 stainless steel enclosures and high-density insulation panels are utilized to create a perfectly sealed and exceptionally hygienic processing environment. Furthermore, depending on a plant's automation preferences, automated Clean-in-Place (CIP) systems can be selected. These systems use built-in nozzles to apply cleaning agents evenly, offering a highly structured, repeatable, and efficient hygiene routine tailored to specific plant workflows.
Standard Operating Procedures (SOP) for Optimal Operation
Implementing tailored standard operating procedures ensures maximum mechanical stability and operational longevity. Common industry best practices include:
Thermal Preparation: Allowing the internal enclosure temperature to reach the target -30°C before initiating product feeding. This ensures consistent freezing quality from the very first batch.
Energy Optimization: Closing refrigerant suction valves shortly before a full shutdown to efficiently utilize the system's residual cooling capacity.
Electrical Care: Keeping the main electrical power and PLC control panel energized immediately after stopping the fan motors. This simple practice maintains an optimal internal climate for sensitive electrical components, keeping the system fully primed and reliable for the next shift.
Purchasing industrial systems requires strict and objective evaluation. Look past the initial brochure specifications.
Always calculate your exact kg/h production requirements. Compare these figures against your available square footage realistically. High throughput in a tiny footprint often requires taller drums. Verify your ceiling height can accommodate the necessary drive towers. Ensure adequate peripheral clearance for maintenance access and routine sanitation.
Drive mechanisms dictate long-term longevity. Direct drive systems offer precise tensionless control. They lock the belt edges directly to the rotating drum. Friction drive systems offer proven mechanical simplicity but require ongoing tension management. Evaluate long-term wear on the spiral framework. Conveyor belts represent the highest mechanical failure points. Choose robust belt materials suited to your specific product weight.
Look closely at the post-installation support for your Quick Freezing Equipment provider. Local availability of replacement parts changes everything. 24/7 remote technical support acts as a non-negotiable metric. Modern PLCs allow technicians to troubleshoot drive faults remotely via secure internet portals. Assess downtime costs honestly. Fast repair responses literally save entire production runs from spoiling.
A modern spiral cooling unit is not merely a refrigerated box. It acts as a complex, high-velocity heat exchange system. It directly ties to product yield and operational profitability. Proper configuration saves floor space while boosting throughput significantly. Advanced aerodynamics protect cellular integrity and drastically reduce drip loss.
Take these practical next steps before contacting manufacturers:
Audit your current drip loss percentages to establish a financial baseline.
Measure your exact floor space and ceiling height constraints.
Request specific thermal calculation models based on your thickest product profiles.
Evaluate the exact continuous uptime requirements for your peak processing seasons.
A: A complete automated cycle usually takes 2 to 4 hours. This turnaround time depends on system size and organic soil levels. Automated CIP systems optimize chemical usage and water pressure. This ensures thorough sanitization while minimizing overall downtime and expensive resource waste.
A: Processing them simultaneously is strongly discouraged. Unpackaged goods risk immediate cross-contamination. Packaged items often block essential airflow, altering thermal transfer rates unpredictably. Varying thermal requirements mean unpackaged goods freeze much faster. You should dedicate specific production runs to each product type.
A: Energy consumption varies heavily based on mechanical capacity. You must calculate it using your required kg/h throughput. Ambient input temperatures and targeted core temperatures dictate power needs directly. Always consult manufacturers for precise kW/h estimates based on your exact production profile and local ambient conditions.
