Freezing equipment spans a massive price range. A basic cabinet freezer might cost $5,000 but handles maybe 100 kg per day. At the other end, a spiral freezer or tunnel freezer delivers high continuous output — but the price tag starts at $80,000 to $120,000 and climbs fast. For a small to medium processor, that's a decade of debt before the machine pays for itself.
A hydraulic plate freezer sits in the sweet spot. A 500 kg/batch unit with a matched refrigeration system costs a fraction of a spiral freezer — typically starting around $30,000. That's industrial-grade contact freezing at a price a family-run seafood business can actually afford.
What about running costs? Plate freezers are efficient. The machine itself draws only about 3 kW for the hydraulic pump. The refrigeration compressor runs when needed, not continuously. Compare that to a blast freezer running fans 24/7, or a tunnel freezer with its long conveyor drive and multiple fan arrays.
And the return on investment? Many of our customers recover the full equipment cost within 3–6 months of operation. One Vietnamese catfish processor told us his two plate freezers paid for themselves in a single high-season month — simply by letting him sell frozen product at export prices instead of dumping fresh at local market rates.
The bottom line: If your daily output is 1000–4000 kg, a plate freezer gives you industrial performance without the financial strain of a spiral or tunnel line.
Walk into a seafood processor in Thailand, Vietnam, or the Philippines. The floor is busy. Every square meter has a purpose — receiving, sorting, filleting, packing, cold storage. There's no empty hall waiting for a 15-meter tunnel freezer.
A hydraulic plate freezer is compact. A 1000 kg/batch unit occupies roughly 21–40 m³ of space. It sits against a wall, or along a processing line. No long conveyor belts. No air ducts snaking across the ceiling. No elevated platforms for access. Just a self-contained freezing station.
Compare that to:
A tunnel freezer: 100–370 m³, plus access clearance at both ends.
A spiral freezer: 120–622 m³, plus height requirements of 3+ meters.
A fluidized bed IQF freezer: 127–490 m³, with lengthy infeed and outfeed conveyors.
For a small factory, the plate freezer isn't just cheaper to buy — it's possible to install without knocking down walls.
Now the simplicity. A plate freezer has:

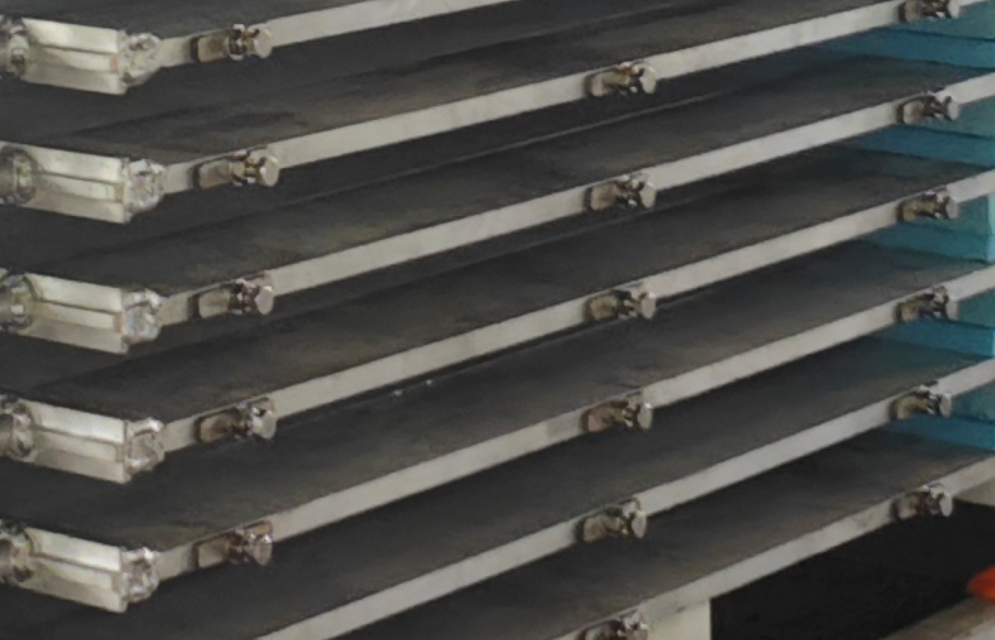

Aluminum freezing plates on a hydraulic lift
A hydraulic power pack (pump + oil reservoir)
A control panel (on/off, cycle start, temperature display)
Connection to a refrigeration compressor/condensing unit
That's it. No belt tracking to adjust. No fan speed to optimize. No air distribution to balance. The operator loads trays, presses start, and comes back when the cycle ends. One person can run multiple plate freezers simultaneously.
Maintenance? The hydraulic system needs an annual oil change and seal inspection. The plates need cleaning. The compressor follows standard refrigeration maintenance. Your in-house technician can handle it. No specialist factory-trained engineer required.
When something goes wrong on a spiral or tunnel freezer — a belt derailment, a fan motor failure, an airflow imbalance — you're looking at specialist repair and possibly days of downtime. A plate freezer has fewer things that can break. When they do, the fix is straightforward.
Freezing is fundamentally about removing heat from a product as quickly as possible. Slow freezing forms large ice crystals inside the cells. Those crystals rupture cell walls. When the product thaws, moisture escapes — that's drip loss, and drip loss is money down the drain.
There are two ways to transfer heat from a product:
Convection: Cold air blows over the product. This is how blast freezers, tunnel freezers, and spiral freezers work.
Conduction: The product touches a cold surface directly. This is how a plate freezer works.
Conduction wins. Aluminum is an excellent thermal conductor. Cold aluminum plates pressed against the top and bottom of the product extract heat far faster than air moving over a surface. The numbers back this up:
Blast freezer freezing time for a 50 mm fish fillet: 4–6 hours
Hydraulic plate freezer for the same fillet: 1.5–2.5 hours
Faster freezing means smaller ice crystals. Smaller ice crystals mean better texture. Better texture means higher market price and fewer buyer complaints.
There's another advantage unique to contact freezing: zero dehydration.
In an air-based freezer, cold moving air pulls moisture from the product surface. This is called freezer burn or dehydration loss. It can be 2–5% of product weight. That's 20–50 kg of lost weight per ton of product — weight you paid for when you bought the raw material, and weight your customer won't pay for when they buy the frozen product.
A hydraulic plate freezer eliminates this. The aluminum plates seal against the product. There's no air movement across the surface. Dehydration loss drops below 0.5%.
For products like tuna, salmon, duck breast, and premium fish fillets — where appearance, texture, and weight all affect the sale price — this difference is critical.
What about flexibility?
A plate freezer handles a wide range:
Whole fish (gutted, laid flat)
Fish fillets
Fish steaks and loins
Shrimp blocks
Meat blocks (beef, pork, lamb)
Poultry (duck breast, chicken portions)
Offal and by-products
Even some prepared foods in tray packs
Plate spacing is adjustable — typically 25 mm to 85 mm. Thin fillets and thick loins go into the same machine with a quick adjustment. No other freezer type delivers this combination of speed, quality, and flexibility at this price.
Q1: How does a hydraulic plate freezer compare to a blast freezer?
A: A blast freezer uses cold air blown by fans. It's slower (4–6 hours for similar loads), causes dehydration loss (2–5%), and forms larger ice crystals. A hydraulic plate freezer uses direct-contact aluminum plates — faster freezing (1.5–2.5 hours), near-zero dehydration (<0.5%), and better product texture. Plate freezers also use less power: no fans running continuously.
Q2: What capacities are available?
A: Standard configurations range from 500 kg/batch to 2500 kg/batch. For a processor handling 2000 kg/day, a single 500 kg/batch unit running 4 cycles covers the day's production. For 4000 kg/day, two 500 kg units or one 1000 kg unit running 4 cycles does it. We help you size based on your daily volume, product type, and working hours.
Q3: Is a plate freezer suitable for both fish and meat?
A: Yes. A plate freezer for fish and a plate freezer for meat use the same core technology. Whole fish, fillets, tuna loins, shrimp blocks, beef cuts, pork portions, duck breast, chicken — all freeze well with aluminum plate contact freezing. Plate spacing adjustment lets you switch between products easily.
Q4: How long does installation take?
A: A plate freezer ships as a skid-mounted unit. No special foundation needed. Connect power, connect to the refrigeration system, and you're ready. Installation typically takes 1–3 days. We provide installation videos and remote guidance. Most customers handle it with their in-house maintenance team.
Q5: What about maintenance and spare parts?
A: The maintenance is minimal. Annual hydraulic oil check and seal inspection. Regular plate surface cleaning. The refrigeration compressor follows standard maintenance intervals. We ship every machine with a spare parts kit: hydraulic seals, fuses, common wear items. Parts are standard off-the-shelf components, not proprietary custom pieces. If you need support, our team is available by video call 24/7.
Q6: Do you offer OEM and what certifications do you have?
A: Yes. We manufacture in an ISO 9001 certified factory with CE compliance. OEM customization is available: your brand name, color scheme, control panel language, and technical documentation under your company name. Minimum order quantities apply for full OEM. Contact us with your requirements.
Industrial freezing doesn't have to mean a six-figure investment.
If you're freezing 1000–4000 kg of fish or meat per day, a hydraulic plate freezer gives you fast, high-quality freezing at a price that makes sense — in a footprint that fits your factory.
ell us your daily volume and product type. We'll recommend the right plate freezer model, send a quote, and show you how quickly it pays for itself.
