Blast Freezing Small Used Tunnel Iqf Freezer for Fish Meat Crayfish Industrial Freezer Cryogenic Tunnel Freezer

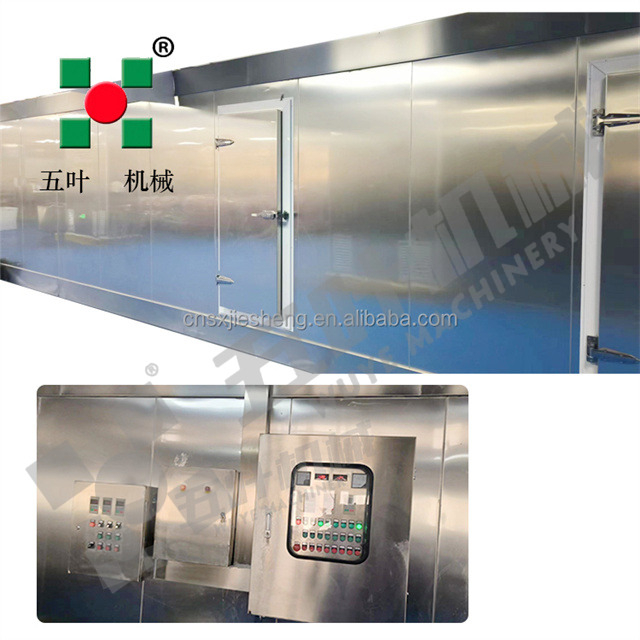

Tunnel Quick Freezer - Industrial Freezing for Fish, Chicken & Crayfish


Availability:

Quantity:



Inquire Add to Basket

The continuous tunnel quick freezer is engineered for rapid, high-capacity freezing of diverse protein products including fish fillets, whole fish, chicken portions, and crayfish. Designed for seamless integration into continuous processing lines, it delivers uniform, ultra-fast freezing that preserves texture, moisture, and freshness across all product types. Features fully customizable capacity to match the exact output requirements of large-scale food enterprises.

Model:
SDD
Brand:
WUYE Machinery
Capacity:
Customizable
Application:
Fish, meat and fruits.
Temperature Control:
-40℃ to 0℃
Warranty:
12 months
Voltage:
Customized
Refrigerant:
R404, R507, Nitrogen, Others

quick freezing processing line industrial freezer cryogenic tunnel freezer Industrial Blast Freezer for Seafood CE certified freezing equipment

Product Description

Tunnel Quick Freezer - Industrial Freezing for

Fish, Chicken & Crayfish

Key Advantages

Versatile Multi-Product Freezing Capability
Engineered to handle a wide range of protein products with varying sizes, shapes, and thermal properties. The tunnel IQF quick freezer features adjustable airflow patterns, belt configurations, and temperature profiles that can be optimized for delicate fish fillets, dense chicken portions, or shell-on crayfish—all in a single system with quick changeover between product runs.
True Continuous Operation for Maximum Throughput
Designed for non-stop, 24/7 production. Products are continuously fed into the tunnel and discharged as individually frozen units, creating a seamless flow that eliminates batch waiting times and dramatically increases overall plant throughput. This continuous operation integrates perfectly with upstream processing lines (filleting, portioning, grading) and downstream packaging equipment.
Product-Specific Freezing Profiles
Store and recall optimized freezing parameters for each product type. The advanced control system allows you to program custom freezing profiles for fish, chicken, and crayfish, automatically adjusting belt speed, zone temperatures, and airflow to deliver perfect results every time you switch products.
Ultra-quick Freezing for Premium Quality
Employs high-velocity, ultra-low-temperature airflow (down to -40°C) that quickly extracts heat from all surfaces of each product. This quick freezing minimizes ice crystal formation, preserving cellular structure and preventing moisture loss. For fish, this means delicate texture; for chicken, it means juiciness; for crayfish, it means firm, succulent meat upon thawing.
Fully Customizable to Your Production Mix
Each tunnel quick IQF freezer is engineered to match your specific product mix and throughput requirements. We customize the tunnel length, belt width, and refrigeration capacity based on your target hourly output for each product type and the specific freezing time requirements of your fish, chicken, and crayfish products.

速冻-隧道1

Compact structure

SUS304 stainless for food

Low noise operation

Easy to operate

Factory direct sales

Applicable to: Seafood,meat.

Tunnel IQF Quick Freezing machine

■ Capacity：200-2000kg/h

■ Origin：Shangyu city,Zhejiang province,China

■ Application：Seafood,meat and some fruits.

Strip band Tunnel freezer

Steel belt Tunnel freezer

Mesh belt Tunnel freezer

Highly active

Freezing time is short, using air convection, good effect.

Energy conservation

Dual-speed motor, expand the scope of application and save energy.

Good heat insulation

High-quality polyurethane foam core double-sided stainless steel for thermal storage body.

Wide application

The freezing efficiency is high, and there are many kinds of products that can be frozen.

Freeze area is large

High quality wide network surface conveyor belt, to ensure the hygiene standards of processed food, increase the frozen area.

Speed adjustable

Adopt the frequency conversion drive system. The speed can be adjusted within a certain range.

Impact tunnel quick freezer

Speed adjustable

Adopt the frequency conversion drive system. The speed can be adjusted within a certain range.

A wide range of applications

Applied in fruit, seafood, meat and other granular and block food frozen

It covers a small area

Small floor area, compared with the conventional quick-freezing machine to reduce the quick-freezing machine installation space

Freezing quickly

The vertical high-speed airflow greatly reduces the freezing time, and the freezing time is continuously adjustable

Tunnel freezer

Refrigeration unit

Condenser

Our company one-stop set of quick-frozen solutions, using domestic and foreign advanced refrigeration design concept multiple parallel units, no barrel no pump technology, through the PLC in the program automatic energy adjustment to match the ever-changing cooling cooling that the refrigeration system maintain the best efficiency, to achieve energy saving, reduce operating costs.

1. Multiple units are connected in parallel and multi-level energy regulation is used to achieve timely and reasonable matching according to the actual refrigeration capacity required for production, which saves more than 30% energy compared with a single unit.

2.It can match multiple evaporators to achieve one machine suitable for different evaporation temperatures, making the refrigeration system run in the most energy-saving working state.

3. Adopt high-quality compressors and accessories from home and abroad, with reliable performance, stable operation and long service life.

4. Simple design, the refrigeration main unit, accessories and controls are concentrated in one body, which fully saves the machine room space and is extremely convenient for operation and maintenance.

5. The use of fault separation technology can ensure that when some machines fail, other machines can still operate normally, ensuring normal and continuous production for customers.

STC series evaporative condensers are the latest type of evaporative condensers developed by our company by absorbing the latest technologies and manufacturing processes at home and abroad. They are one of many types of condensers and are widely used due to their energy and water saving, high efficiency and low operating cost.

When the equipment is running, the refrigerant in the coil is reversely exchanged by the cooling water from top to bottom and the natural air from bottom to top, and the heat is taken away from the air; the water passing through the coil flows into the packing layer and then flows into the water pan after being cooled. The small water droplets passing through the top layer are collected by the water collector, thus reducing the water escape rate.

Contact our multi-product freezing specialists with your product specifications, capacity goals, and process requirements for a tailored proposal and accurate quotation.
