Temperature excursions carry massive operational consequences. A single failure in climate control quickly leads to product loss, regulatory penalties, and a compromised supply chain. Whether you handle perishable foods, sensitive pharmaceuticals, or volatile chemicals, maintaining precise thermal parameters is the foundation of your operational integrity.
Aligning specific product thermal requirements with the physical limitations and energy demands of a commercial facility presents a complex engineering challenge. Facility managers must balance aggressive cooling loads, high-traffic door openings, and stringent compliance standards. You need an environment that prevents thermal leakage while accommodating daily operational workflows. Designing this system requires a deep understanding of refrigeration architecture, insulation properties, and continuous environmental monitoring.
This guide serves as a framework for evaluating, designing, and optimizing a facility to meet strict product specifications while ensuring operational scalability and compliance. By applying these engineering principles, you protect your inventory and future-proof your temperature-controlled infrastructure.
Product-Specific Thermal Profiling: Different inventory types (e.g., pharmaceuticals vs. raw poultry) require distinct temperature bands, ranging from ambient (15°C) to ultra-low (-30°C and below), dictating the required refrigeration architecture.
Regulatory Baseline: Facilities must design their infrastructure to exceed baseline compliance standards (e.g., USDA, FDA, cGMP) with verifiable, continuous monitoring and readily observable local displays.
Zoning Strategy: Large-scale cold storage requires strategic multi-zone configurations to prevent cross-contamination and thermal leakage between incompatible product classes, including transitional staging areas.
Risk Mitigation: Vendor evaluation must prioritize system redundancy, thermal mapping accuracy, temperature recovery capabilities, and automated excursion alerting over initial capital expenditure.
Meeting baseline regulatory standards dictates the fundamental design of any temperature-controlled facility. For food processing and distribution, USDA guidelines mandate strict environmental controls. Facilities must maintain standard refrigeration between 32°F and 40°F with a strict +/-3°F accuracy threshold. You must ensure that thermometers and digital displays are readily observable and easily readable directly on the facility floor. This allows personnel to verify conditions instantly without relying solely on remote dashboards. Compliance extends beyond simple temperature maintenance. It requires documented proof that the environment remains stable during loading, unloading, and heavy operational traffic.
Life sciences and pharmaceutical applications face even stricter oversight. FDA and cGMP regulations require comprehensive validation protocols before you can store a single vial of medication. You must execute a rigorous three-phase validation process:
Installation Qualification (IQ): Verifies that all panels, compressors, evaporators, and sensors are installed exactly according to the engineered drawings and manufacturer specifications.
Operational Qualification (OQ): Tests the empty room to ensure the refrigeration equipment operates within specified limits, including testing defrost cycles and emergency backup power transitions.
Performance Qualification (PQ): Validates the fully loaded room, proving the system maintains uniform temperatures across all racking levels while handling normal operational workflows and door openings.
Pharmaceutical environments require immutable audit trails. Every temperature fluctuation, door opening, and defrost cycle must be logged and secured against tampering to satisfy regulatory audits.
A single thermostat reading does not guarantee uniform conditions across a large space. Spatial temperature mapping is a mandatory step before commissioning any new facility. This process involves placing data loggers in a three-dimensional grid throughout the empty and loaded room to identify inherent hot and cold spots. Airflow restrictions, proximity to evaporator coils, and heat ingress from doors all create localized temperature variations. Mapping reveals these discrepancies, allowing engineers to adjust airflow dynamics, reposition racking, or modify defrost schedules.
Acceptable variance thresholds depend entirely on product sensitivity. Raw agricultural commodities might tolerate a 4°F swing, while specialized biologics require stability within a 1°C margin. Thermal mapping establishes the Mean Kinetic Temperature (MKT), providing a comprehensive view of thermal stress over time. By defining these thresholds early, you prevent localized freezing near evaporators and dangerous warming near loading zones. Continuous uniformity protects inventory integrity and prevents localized product degradation.
Evaluating a facility build based solely on the upfront cost of panels and compressors leads to severe operational deficits. You must frame the evaluation around long-term energy consumption, maintenance downtime, and product loss risk. A cheaper, undersized compressor will run continuously to maintain temperature, consuming massive amounts of electricity and burning out years before its expected lifespan. Investing in thicker insulation panels, high-efficiency electronically commutated (EC) motors, and smart defrost controllers reduces the daily electrical load. Factoring in the cost of potential inventory loss due to mechanical failure makes the decision to install redundant cooling circuits an obvious engineering requirement rather than an optional upgrade.
Fresh produce and dairy products demand precise control to prevent spoilage and maintain cellular integrity. The standard operating range sits between 32°F and 40°F (0°C to 4°C). However, temperature alone is insufficient. You must actively manage humidity levels. High airflow combined with low humidity causes rapid desiccation, leading to weight loss and degraded appearance in fresh vegetables. Specialized evaporators with larger surface areas help maintain high relative humidity without dropping the temperature below the freezing point of the produce.
Frozen foods and raw meats require much lower thresholds to halt microbial growth and enzymatic activity completely. These environments operate strictly between 0°F and -10°F (-18°C to -23°C). Fluctuations in this zone cause ice recrystallization. When temperatures rise slightly, microscopic ice crystals melt; when the temperature drops again, they refreeze into larger, jagged crystals that puncture cell walls, causing freezer burn and texture loss. Maintaining this deep freeze requires robust insulation and high-capacity compressors capable of rapid temperature recovery after door openings.
Dry foods and pantry staples require a different approach. These products need cool, dry environments to prevent moisture accumulation and pest proliferation. The ideal range spans from 50°F to 59°F (10°C to 15°C). Controlling ambient humidity in these zones prevents condensation on packaging, which compromises structural integrity and encourages mold growth.
Transitional and processing zones are often overlooked but remain critical to the cold chain. Refrigerated warehouse staging areas and active loading docks must maintain temperatures between 35°F and 55°F (2°C to 13°C). This buffer zone prevents thermal shock when moving inventory from deep storage to transport vehicles. Proper staging maintains the cold chain during active handling and minimizes the cooling load on transport trailers.
Medical refrigeration operates under zero-tolerance parameters. Standard pharmaceutical storage requires a highly stable +2°C to +8°C (35°F to 46°F) band. This range protects medications, vaccines, diagnostic reagents, and standard biologics. Even brief excursions outside this band can render active pharmaceutical ingredients inert. Facilities handling these products utilize redundant cooling loops and specialized air distribution systems to eliminate micro-climates within the storage racks.
Biomedical freezers support more sensitive materials, operating between -10°C and -30°C. This deep freeze environment preserves blood plasma, biological samples, and specific intermediate chemical compounds. The infrastructure must support rapid pull-down times and aggressive defrost cycles that do not impact the internal ambient temperature.
Ultra-Low Temperature (ULT) applications push the boundaries of mechanical refrigeration. Operating between -70°C and -80°C, these specialized zones are necessary for mRNA vaccines, genetic materials, and rare biological tissues. ULT environments typically utilize cascade refrigeration systems, where two independent cooling circuits work in tandem to achieve extreme sub-zero temperatures. Insulation requirements for ULT spaces are massive, often utilizing vacuum insulated panels to prevent rapid thermal ingress.
Industrial materials present unique thermal challenges. Volatile chemicals, advanced polymers, and industrial adhesives require strict temperature parameters to prevent degradation or dangerous exothermic reactions. Many of these compounds emit flammable vapors, necessitating explosion-proof environments. All electrical components, including fans, lighting, and sensors, must be intrinsically safe and rated for hazardous locations. Temperature control in these spaces prevents premature curing of adhesives and maintains the structural stability of raw polymers before manufacturing.
Product Temperature Specifications Reference
Product Category | Specific Inventory Type | Required Temperature Range | Critical Environmental Factors |
|---|---|---|---|
Food & Beverage | Fresh Produce & Dairy | 32°F to 40°F (0°C to 4°C) | Strict humidity control to prevent desiccation. |
Food & Beverage | Frozen Foods & Meat | 0°F to -10°F (-18°C to -23°C) | Rapid recovery to prevent ice recrystallization. |
Food & Beverage | Dry Foods | 50°F to 59°F (10°C to 15°C) | Moisture mitigation to prevent pest proliferation. |
Food & Beverage | Transitional/Staging Zones | 35°F to 55°F (2°C to 13°C) | Buffer zones to maintain cold chain during transit. |
Life Sciences | Standard Pharmaceuticals | +2°C to +8°C (35°F to 46°F) | Zero-tolerance variance; strict audit trails. |
Life Sciences | Biomedical Storage | -10°C to -30°C | Aggressive defrost cycles without ambient impact. |
Life Sciences | Ultra-Low Temp (ULT) | -70°C to -80°C | Cascade refrigeration; vacuum insulated panels. |
Selecting the right structural and mechanical configuration is the first step in designing an industrial cold room storage facility. Standard chiller rooms operate above freezing. They utilize medium-temperature compressors and standard evaporator coils. Because the environment remains above freezing, floor insulation is often unnecessary for smaller footprints, though a vapor barrier remains critical. Defrost cycles in chiller rooms are typically off-cycle, meaning the compressor shuts down while the fans continue to run, melting any light frost accumulation.
Freezer rooms require a fundamentally different architectural approach. Operating well below freezing, these spaces demand heavy-duty low-temperature compressors. Evaporator coils must feature wide fin spacing to accommodate rapid frost build-up, and they require active defrost mechanisms—usually electric heaters or hot gas bypass systems. More importantly, freezer rooms require insulated floors equipped with sub-floor heating systems. We typically install glycol loops or electric heat trace cables directly into the concrete slab. Without sub-floor heating, the extreme cold penetrates the concrete, freezing the ground moisture below. This causes destructive frost heave that will crack the slab and destroy the building's foundation.
ULT facilities represent the extreme end of the spectrum. They require specialized structural engineering to handle immense thermal contraction. The mechanical systems rely on cascade refrigeration, utilizing specialized refrigerants designed for extreme low temperatures. Entry into ULT spaces requires heavy safety protocols, specialized PPE for personnel, and robust emergency egress systems due to the immediate danger posed by -80°C environments.
Facility layout directly impacts operational efficiency. A single-zone facility offers simplicity. It utilizes a unified refrigeration system and provides maximum unobstructed floor space for bulk storage. However, single-zone layouts lack flexibility. You cannot store incompatible products together, and every door opening exposes the entire inventory to ambient air infiltration.
Multi-zone configurations solve these issues through strategic compartmentalization. By dividing the facility into distinct thermal zones, you can store frozen goods, fresh produce, and dry goods under one roof. Managing thermal transfer between these zones requires specific architectural features:
Anterooms: Small, temperature-controlled vestibules act as airlocks between zones with drastic temperature deltas, preventing massive air exchange when doors open.
High-Velocity Air Curtains: Installed above doorways, these blowers provide an invisible barrier of downward air that prevents cold air from spilling out and warm, humid air from rushing in during forklift traffic.
High-Speed Roll-Up Doors: Replacing standard sliding doors with high-speed automated doors minimizes the exposure time between zones.
When designing high-traffic multi-zone environments, you must account for temperature stabilization and recovery times. After initial startup or heavy loading events, a standard 5-8 hour stabilization period is required to bring the core temperature of the product and the ambient air back into equilibrium. Sizing the refrigeration equipment to handle these peak loads without short-cycling is essential for long-term reliability.

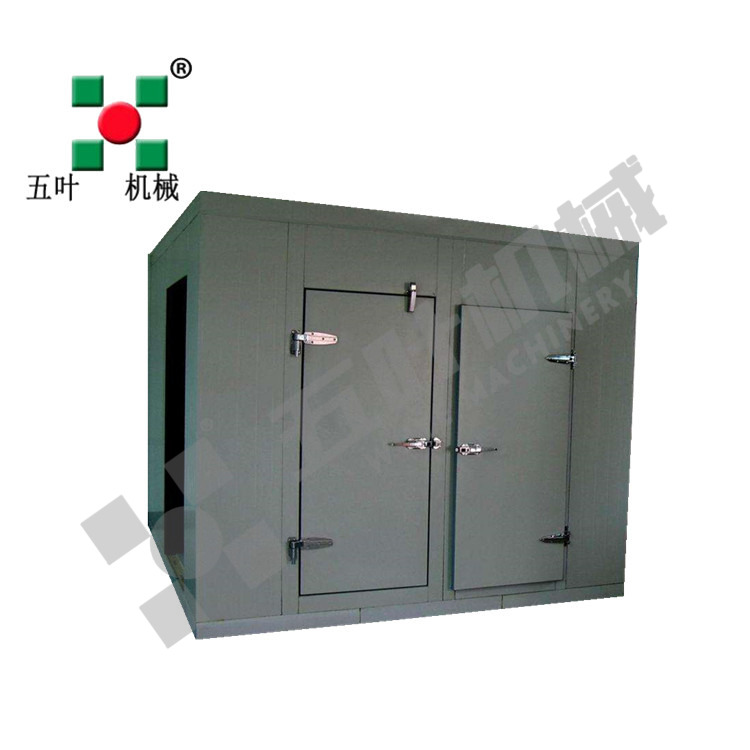

Construction methodology dictates deployment speed and structural longevity. Modular panel systems utilize pre-fabricated, cam-locking insulated panels. These systems offer rapid deployment and inherent scalability. If your operational needs change, modular rooms can be disassembled, expanded, or relocated. They are highly effective for indoor installations and medium-scale applications where speed to market is a priority.
Custom-engineered structural builds are necessary for massive distribution centers and heavy-duty applications. These facilities utilize insulated metal panels (IMPs) attached directly to a primary steel framework. Custom builds support massive ceiling heights for high-density automated storage and retrieval systems (ASRS). They offer superior structural integrity, capable of withstanding severe external weather conditions and the heavy mechanical loads of rooftop refrigeration equipment.
The thermal envelope is the primary defense against heat infiltration. In large-scale cold storage, selecting the correct insulation material dictates the efficiency of the entire mechanical system. Polyurethane (PUR) and Polyisocyanurate (PIR) are the industry standards. PIR panels offer superior fire resistance and slightly better thermal performance. Panel thickness must be calculated based on the target R-value and the maximum temperature delta between the interior and exterior environments. A freezer operating at -10°F in a hot climate requires significantly thicker panels—often 5 to 6 inches—compared to a standard chiller room.
Insulation alone will fail without a continuous vapor barrier. Moisture naturally migrates from warm, high-pressure areas to cold, low-pressure areas. If ambient humidity penetrates the panel joints, it will condense and freeze inside the insulation core. This interstitial condensation destroys the panel's R-value and causes structural delamination. Installers must meticulously seal every panel joint, ceiling suspension point, and floor perimeter. We apply non-hardening butyl tape inside the panel joints and coat the exterior seams with high-grade vapor mastics to ensure a hermetic seal.
Scaling up requires sophisticated mechanical architecture. Centralized ammonia systems remain the standard for massive industrial facilities. Ammonia is highly efficient and environmentally benign regarding global warming potential. However, it is toxic and heavily regulated, requiring dedicated machine rooms and specialized maintenance personnel. Decentralized systems utilizing Freon or transcritical CO2 offer safer alternatives for medium-to-large facilities. CO2 systems are gaining traction due to excellent thermodynamic properties and compliance with strict environmental regulations phasing out synthetic refrigerants.
Refrigeration Architecture Comparison
System Type | Primary Refrigerant | Best Application Scale | Key Operational Considerations |
|---|---|---|---|
Centralized | Ammonia (NH3) | Massive Industrial / Distribution | Highest efficiency; requires strict safety protocols and dedicated machine rooms. |
Transcritical | Carbon Dioxide (CO2) | Medium to Large Commercial | Excellent environmental compliance; operates at very high system pressures. |
Decentralized | Synthetic (Freon/HFCs) | Small to Medium Modular Rooms | Lower upfront cost; facing strict regulatory phase-outs globally. |
Mechanical failure is inevitable, making redundancy a critical design requirement. For high-value or life-saving inventory, an N+1 or N+2 redundancy configuration is mandatory. This means the facility possesses at least one or two fully independent, backup refrigeration circuits capable of maintaining the required temperature load if the primary system fails. Redundancy prevents catastrophic product loss during unexpected compressor failures or mandatory maintenance downtime.
Cold air must circulate freely to maintain uniform temperatures. High-density racking systems severely impact airflow dynamics. If racks are pushed too close to the walls or stacked too near the ceiling, they create physical blockages. This results in warm zones deep within the aisles and freezing zones near the evaporators.
HVAC design must be integrated directly with the warehouse layout. Engineers utilize destratification fans to push cold air down from the ceiling and ensure even distribution throughout the racking flues. Racking must be designed with adequate standoff distances from insulated walls—typically 4 to 6 inches. This gap allows a continuous curtain of cold air to wash down the perimeter, intercepting heat before it reaches the product.
Manual temperature logging is obsolete and prone to human error. Modern facilities rely on automated, cloud-based Continuous Environmental Monitoring Systems (CEMS). For regulated industries, these systems must comply with 21 CFR Part 11, ensuring all digital records are encrypted, time-stamped, and tamper-proof. CEMS utilizes a network of precision sensors distributed throughout the facility, transmitting data in real-time to centralized dashboards.
Sensor placement must reflect the results of the initial thermal mapping, targeting known hot and cold spots. Calibration frequency is critical; sensors must be calibrated annually against NIST-traceable standards to ensure ongoing accuracy. The system must feature automated alerting protocols, dispatching SMS, email, or API-triggered phone calls to facility managers the moment an excursion is detected. Crucially, these cloud systems must be paired with readily observable, easily readable local displays for immediate floor-level verification by operational staff.
Aggressive cooling demands place massive strain on electrical grids. Modernizing the mechanical systems mitigates this impact. Variable Frequency Drives (VFDs) installed on compressor motors and evaporator fans allow the equipment to modulate its speed based on the actual cooling load, rather than running at full capacity constantly. Electronically Commutated (EC) motors provide significant efficiency gains over traditional AC motors, generating less waste heat inside the refrigerated space.
Advanced defrost algorithms replace rigid time-based defrost schedules. Smart controllers monitor frost build-up on the coils and initiate defrost cycles only when necessary. This prevents unnecessary heat introduction into the room and reduces energy consumption. Balancing these technologies ensures the facility meets its rigorous thermal requirements while minimizing its environmental footprint and grid reliance.
A well-designed cold storage room degrades quickly without rigorous preventative maintenance. Door seal integrity is the most common point of failure. Damaged gaskets allow massive air infiltration, causing evaporator coils to freeze solid and temperatures to spike. Maintenance teams must execute a strict schedule:
Daily Visual Inspections: Check door sweeps, magnetic seals, and high-speed door tracks for damage or ice accumulation.
Monthly Coil Cleaning: Remove dust and debris from evaporator and condenser coils to maintain optimal heat transfer efficiency.
Quarterly Oil Analysis: Extract and test compressor oil to identify metal shavings or moisture, predicting mechanical failures before they occur.
Bi-Annual Sensor Calibration: Verify all CEMS probes against a certified reference thermometer to ensure data accuracy.
Implementing a proactive lifecycle management schedule ensures the refrigeration equipment operates at peak efficiency and prevents catastrophic downtime.
Conduct a comprehensive facility thermal audit to identify existing insulation vulnerabilities and airflow restrictions.
Define your precise inventory temperature bands and cross-reference them with USDA or FDA regulatory requirements.
Evaluate your current refrigeration architecture to determine if N+1 redundancy is required for your specific product load.
Request a detailed technical consultation from a specialized engineering firm to design a custom Cold Storage Room solution.
A: Temperatures vary strictly by product. Standard refrigeration for fresh foods operates between 32°F and 40°F. Transitional staging warehouses maintain 35°F to 55°F. Freezer rooms require 0°F to -10°F for frozen goods. Pharmaceutical environments demand a precise +2°C to +8°C band to protect sensitive medical inventory.
A: Uniformity is achieved through comprehensive spatial thermal mapping to identify variances. Engineers then utilize strategic evaporator placement, install destratification fans to eliminate micro-climates, and design high-density racking layouts with proper standoff distances to ensure unobstructed airflow throughout the entire facility.
A: The USDA mandates maintaining refrigerated spaces between 32°F and 40°F. Thermometers must be readily observable, easily readable, and accurate to within +/-3°F. Facilities must also account for a 5 to 8 hour stabilization period after heavy loading to ensure product core temperatures reach safe levels.
A: Industrial storage operates on a massive scale, utilizing heavy-duty structural insulated panels with high R-values. They feature complex, redundant refrigeration architectures, integrated multi-zone anterooms, and sophisticated 21 CFR Part 11 compliant continuous monitoring systems, unlike basic commercial walk-ins.
A: Industry standards dictate that environmental monitoring sensors must be calibrated at least annually using NIST-traceable equipment. However, highly regulated environments, such as pharmaceutical manufacturing and life sciences, often require strict bi-annual calibration to ensure zero-tolerance compliance.
A: Temperature excursions trigger automated CEMS alerts. The impact depends on the Mean Kinetic Temperature (MKT) and recovery time. Prolonged fluctuations lead to ice recrystallization in food or degradation of active pharmaceutical ingredients, resulting in immediate product quarantine, regulatory audits, or mandatory destruction protocols.
