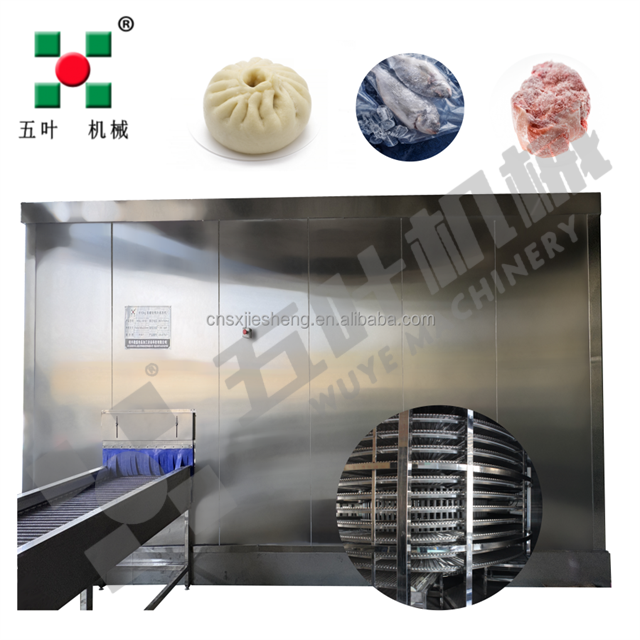

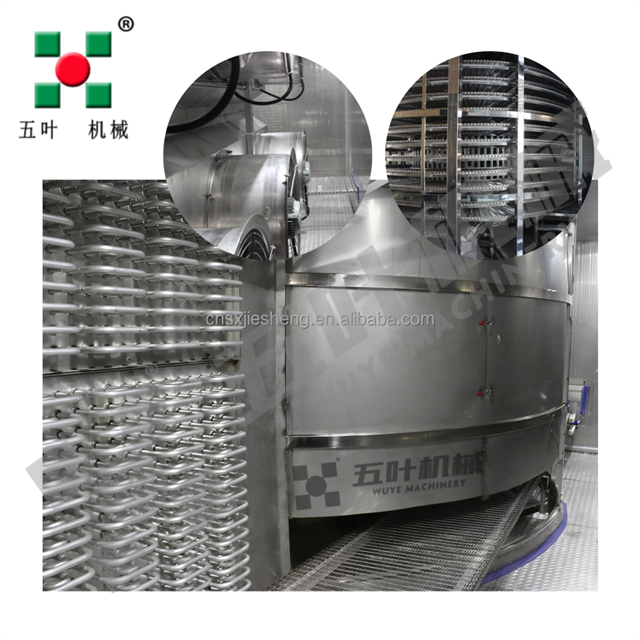

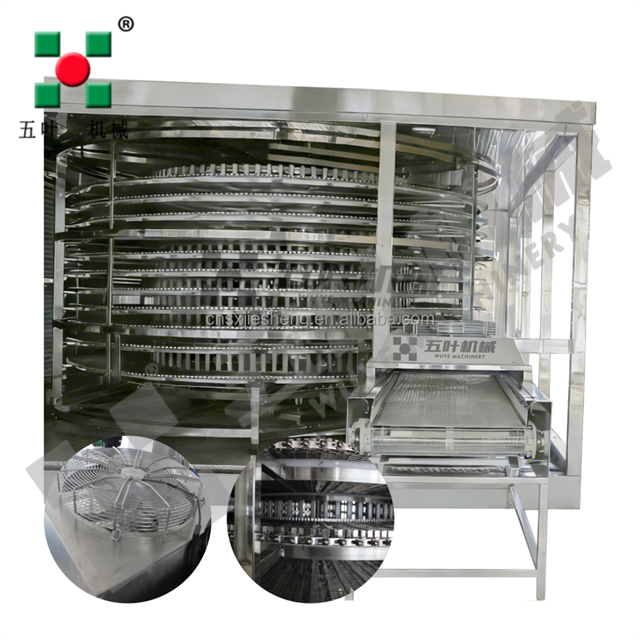

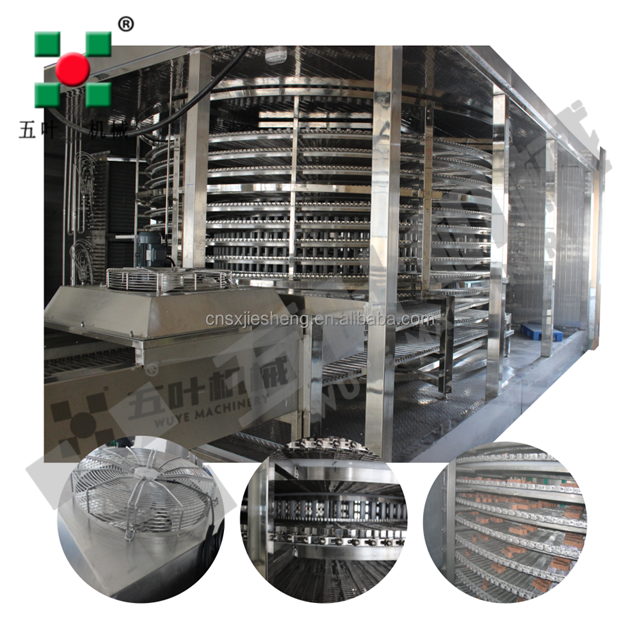

Continuous Freezing Machine for Dumplings

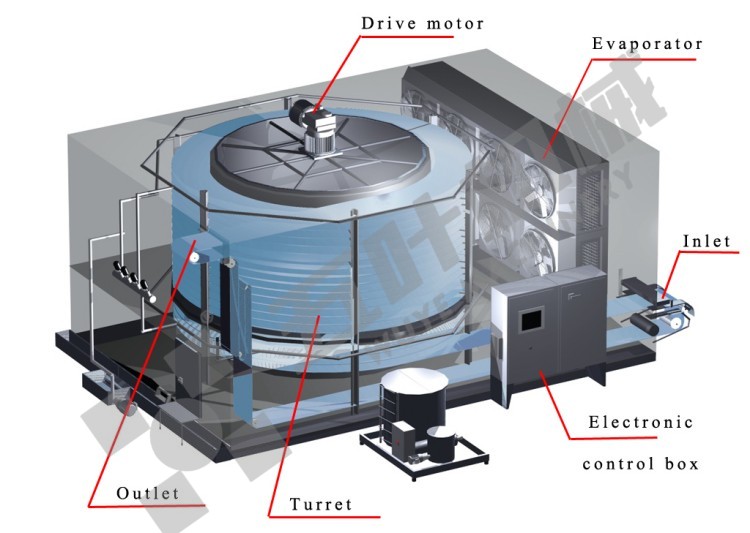

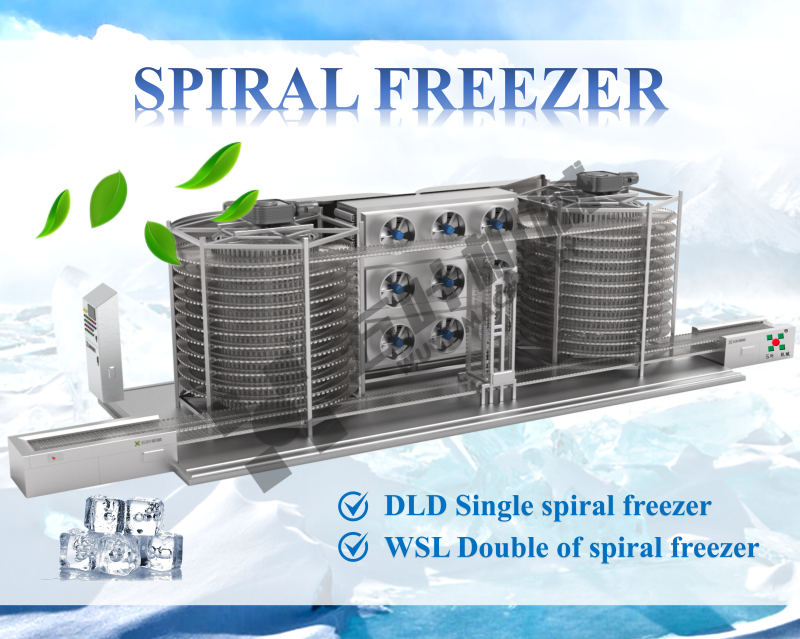

Single Spiral Freezer

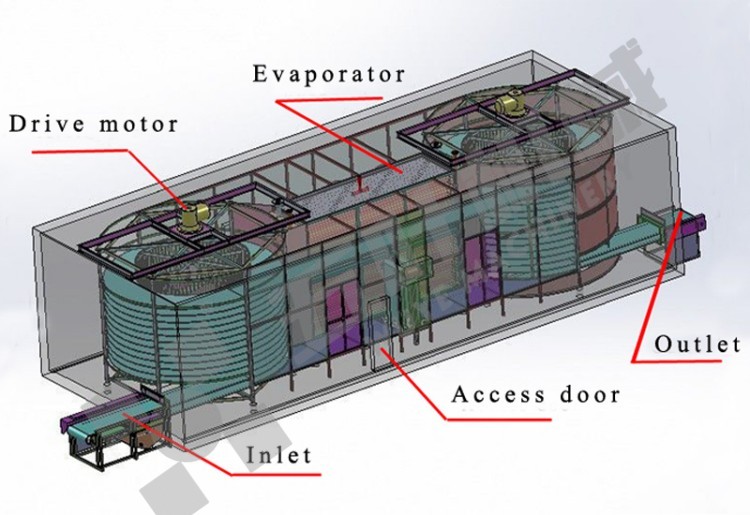

Double Spiral Freezer

Key Advantages

• Tailored Capacity & Vertical Optimization
  Employs a fully automated continuous spiral freezing design. Soup dumplings move at a constant speed on a food-grade stainless steel mesh belt, spiraling upward or downward, making full use of vertical space to achieve the perfect balance of small footprint and large freezing capacity. Equipped with a variable frequency speed control system for stepless adjustment of conveyor speed according to product specifications and process requirements. Freezing capacity ranges from 500kg/h to 10,000kg/h, with custom design and manufacturing available based on client requirements.

• Ultra-Compact, Continuous Flow Design


  Utilizes optimized longitudinal counterflow air circulation and curved air duct design to create a uniform, powerful vertical airflow field within the spiral tower. Cold air envelops each soup dumpling, rapidly forming a frozen crust on the surface for setting, effectively preventing dough sticking while avoiding cracking caused by overly rapid freezing. This vertical airflow mode ensures uniform temperature distribution with no dead zones, short freezing time, low dehydration loss, and minimal juice loss upon thawing, resulting in excellent texture and taste.

• Precise & Uniform Hardening for Superior Quality
  Engineered with multi-zone temperature control and uniform high-velocity airflow, it ensures every product—from the center to the surface—experiences a consistent and optimal freezing curve. This rapid and uniform heat extraction minimizes ice crystal size, resulting in a smoother, creamier texture, and prevents shrinkage or deformation, guaranteeing consumer satisfaction and brand integrity.

• High Hygiene & Easy Maintenance
  Integrates a PLC touch-screen control system for precise setting and real-time monitoring of temperature, air velocity, and conveyor speed in each freezing zone. Equipped with variable frequency fans for automatic airflow adjustment based on product load, achieving optimal freezing results with minimal energy consumption. Optional ADF air defrost system uses powerful airflow to remove frost from evaporators, extending processing time and improving equipment utilization.

High feed and low discharge,Low feed and high discharge.

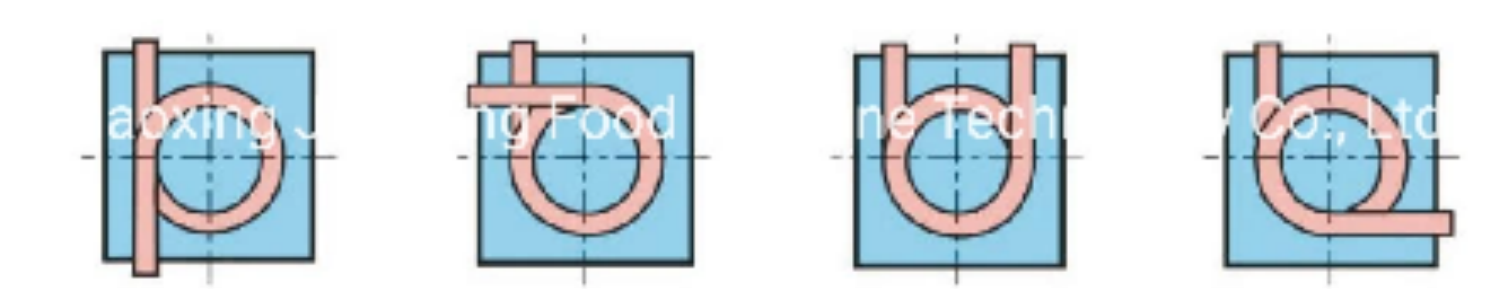

The infeed and outfeed sketch maps of the DLD single of spiral freezer.

Low feed and low discharge

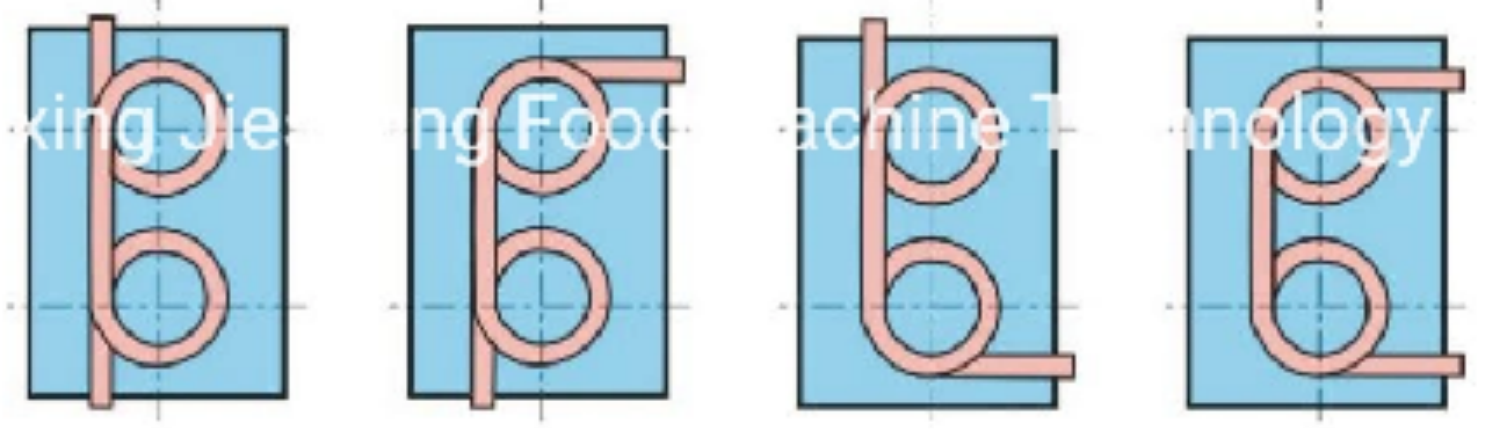

The infeed and outfeed sketch maps of the WSL double of spiral freezer.

Technical Specifications & Configuration

Typical Technical Parameters (Customizable for Bakery)

• Target Products:

  Croissants & Danish pastries, Bread rolls & loaves (par-baked or fully baked), Pizza dough & bases, Cookies & scones, Muffins & cakes, Prepared pastry.

• Freezing Method:

  Double Independent Continuous Spiral Air Flow (IQF).

• Belt System:

  Two parallel fine-mesh or flat-top plastic belts, gentle on product bases.

• Capacity Range:

  Designed for high output, typically from 500 kg/hr to 5,000+ kg/hr depending on product density and size.

• Freezing Temperature Range:

  Adjustable, typically from -25°C to -40°C to suit different bakery products.

• Key Feature:

  Gentle pre-cooling zone option to prevent condensation before deep freezing.

• Control System:

  User-friendly PLC with recipe storage for different products, monitoring belt speed, temperature in each zone, and air velocity.

• Construction:

  Sanitary design with smooth stainless steel (AISI 304) interior for easy cleaning.

Stainless steel construction,with a unique air duct design.

Reliable stranmission control. Reasonable design and operation are safe and reliable.

Compact structure,small footprint.

Double-sided stainless steel heat insulation reservoir body.

The large water tank at the bottom surface of the reservoir does not leak,and the drinage is convenient.

Why Choose Us

We specialize in integrating freezing solutions into complete packaged food lines. Choosing the spiral quick freezer means gaining a partner who understands the synergy between packaging technology and cryogenic efficiency. Our comprehensive service—from line integration analysis and thermal profiling to installation, validation, and support—ensures your dual spiral freezer operates as a reliable, high-performance engine within your operation. We are committed to helping you achieve faster freezing times, higher package integrity, and greater overall line efficiency, strengthening your position in the competitive market for frozen packaged foods.

Act Now, Unlock the Vertical Potential of Your Factory!

Contact our sales engineers for a customized proposal based on your specific products and spatial layout.
