A land-based freezer operates in a predictable world. The floor is level. The air is fresh (or at least not corrosive). Power is stable. If something breaks, a technician drives over in a few hours.
A fishing vessel is none of these things.
Salt corrosion is relentless. Within weeks at sea, salt mist penetrates electrical panels, corrodes standard steel frames, and pits unprotected aluminum. A land freezer uses materials chosen for cost, not corrosion resistance. At sea, those choices fail fast. Condenser fins clog with salt. Wiring corrodes. Bolts seize.
Motion never stops. A ship rolls, pitches, and vibrates 24 hours a day. Land freezers assume gravity will hold things in place — drip trays drain downhill, oil settles in sumps, products rest on belts. On a ship at 15° tilt, assumptions break. Refrigerant doesn't circulate the same way. Oil doesn't return to the compressor. Products slide, jam, or fall.
You are your own technician. 500 miles offshore, there is no service call. If a control board fails or a refrigerant leak appears, the crew must diagnose and fix it. Land equipment isn't built for that — parts are hard to reach, diagnostic interfaces are minimal, and documentation assumes factory-floor support.
Power is a zero-sum game. The vessel's generator powers everything: navigation, communications, winches, lights, crew quarters. A freezer's starting current and running load must fit into this shared budget. Land freezers are optimized for cost, not for low inrush or steady demand. At sea, they can trip breakers or overload a generator when it's needed most.
These aren't theoretical risks. We've seen standard freezers fail in their first month at sea — not because the machine was bad, but because it was in the wrong environment.
The ocean doesn't adapt to your equipment. Your equipment must adapt to the ocean.
A marine freezer isn't a land freezer with some stainless bolts swapped in. It's a different machine, designed around different constraints. Here are the four fundamentals that separate a marine-grade system from a land machine with a "marine" label.
Land freezers use galvanized steel, standard aluminum, or painted carbon steel. Marine freezers demand:
316 stainless steel for frames, fasteners, and any exposed structural metal. 304 is common on land but pits in chloride-rich marine air.
Marine-grade aluminum alloys (5083 or 5052) for plate freezers or structural panels. These resist pitting and stress corrosion that standard alloys cannot.
Anodized or epoxy-coated surfaces on all exposed aluminum. Bare aluminum develops white oxide scale in salt air.
Sealed electrical enclosures to IP65 minimum. Salt fog inside a control panel corrodes terminals in days.
Titanium or cupronickel for seawater-cooled condenser tubes. Copper-based alloys fail in warm seawater over time.
Ask any supplier: "What grade of stainless steel is the frame?" If they say "304" without qualification, it's not marine-grade.
A land refrigeration system is designed for a level foundation. Refrigerant flows by gravity-assisted thermosiphon effects in the evaporator. Oil separators and accumulators work best when upright. At sea, a vessel can sustain 15° of heel for hours and roll to 30° cyclically.
Marine systems address this through:
Flooded or pump-circulated evaporators instead of dry-expansion, which is tilt-sensitive.
Oil management systems with larger reservoirs, multi-point return, and tilt-tolerant compressor crankcases.
Seawater-cooled condensers instead of air-cooled. A shell-and-tube condenser using pumped seawater doesn't care about tilt angle, and seawater is free, unlimited, and maintains stable condensing temperatures even in tropical waters.
Flexible refrigerant piping with vibration loops, not rigid hard lines that fatigue-crack.
The electrical panel on a land freezer is built to a price. The marine version is built to a standard. Key differences:
24V DC control circuits where possible, safer for wet environments than 230V AC.
Marine-certified circuit breakers and contactors rated for humidity, condensation, and vibration.
Galvanic isolation between vessel power and freezer controls to prevent stray-current corrosion.
Shock and vibration-rated components — every terminal, relay, and connector must handle continuous low-frequency vibration.
Land freezers assume a factory technician will do anything beyond basic cleaning. Marine freezers assume the opposite. The crew must be able to access, diagnose, and replace common wear items with basic tools. This means:
Quick-release panels, not bolted covers.
Color-coded, labeled wiring and piping.
Simple fault codes displayed on a basic screen — not buried in a PLC menu only the manufacturer understands.
A spare parts kit that ships with the machine: seals, filters, fuses, belts, sensors.
Remote diagnostic capability: a satellite or Wi-Fi connection lets a shore-based engineer see the controller in real time and walk the crew through fixes.
If a supplier cannot provide a detailed spare parts list and remote support protocol for marine operation, they're not serious about marine freezing.
Not all freezer types adapt to marine use equally. Let's look at the viability of each major category.
Hydraulic plate freezers are the most widely used onboard freezer type. Why? Their inherent characteristics match marine constraints better than any other design:
No fans, no air ducts. Direct contact freezing means no airflow to manage in a tilting vessel.
Minimal moving parts. Hydraulic pump + compressor. That's it.
Compact footprint. A 500kg/batch unit fits in a small processing deck.
Freezing quality is unaffected by ship motion — the plates clamp the product in place.
A marine plate freezer for use on ships adds: marine aluminum plates with retaining baffles so trays don't slide out, sealed hydraulics with marine-grade oil, and seawater-cooled condensers. Plate freezers handle whole fish, fillets, and meat blocks. Not for granular IQF products.

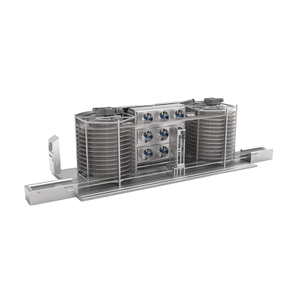

A spiral freezer can be installed on large factory vessels — think processing trawlers and mother ships above 60 meters. The challenges:
Height: Spiral freezers need 3+ meters of vertical space. Below-deck installation requires cutting decks or building a dedicated housing.
Motion sensitivity: The spiral belt runs on a precise track. Ship roll can cause belt misalignment. The belt tensioning system must be redesigned for dynamic conditions.
Cleaning: Spiral belts are harder to clean than flat belts. At sea, where hygiene water and crew time are limited, this matters.
Spiral freezers at sea are typically custom-engineered projects, not standard products. They suit high-volume operations (2000+ kg/h) where the throughput justifies the complexity.
Tunnel freezers (linear belt or impingement) are simpler than spirals but demand a long, straight installation footprint. On a vessel, long unobstructed deck runs are rare. They also share the same airflow-in-motion challenge as spirals — fans and evaporators must work reliably at tilt.
For smaller vessels (under 40 meters), tunnel freezers are generally impractical due to length requirements.
A fluidized bed IQF freezer relies on precisely controlled upward airflow to suspend product. This is the hardest system to stabilize on a moving vessel. Air distribution across the belt changes with every degree of roll. For granular products at sea, most processors freeze blocks on a plate freezer instead, then process (dice, slice) on shore where IQF lines can run level. Dedicated marine IQF installations exist but are rare, expensive, and typically on large factory ships.
Liquid Nitrogen Freezers — Small, Simple, Expensive to Run
Liquid nitrogen freezers have one marine advantage: they're mechanically simple. No compressor, no condenser, no refrigerant circuit — just LN2 spray and fans. They're small and easy to install. The tradeoff is operating cost: liquid nitrogen is consumed, not recycled. At sea, you must carry enough LN2 for the entire voyage. For short trips and high-value catch (e.g., tuna for sashimi), this can pencil out. For volume freezing, it won't.
No matter which type you consider, the rule is the same: a land version of that freezer, bought off the shelf, will not survive at sea. Marine freezers — whether plate, spiral, or LN2 — must be designed, not adapted, for the ocean.
Q1: Can I just bolt a land freezer to the deck and add anti-corrosion paint?
A: No. The problems go far deeper than surface rust. The refrigeration system, electrical controls, material grades, and service access are all fundamentally designed for a stable, dry, accessible factory environment. Paint doesn't fix refrigerant flow at a 15° tilt, or keep salt out of electrical terminals, or help the crew access internal parts for emergency repairs. Marine freezers require different engineering from the inside out.
Q2: What's the simplest marine freezer option for a small fishing boat?
A: A hydraulic plate freezer with a seawater-cooled condenser. It's the most proven, most compact, and least complex marine freezer type. Capacities start from 500 kg/batch — suitable for boats down to 15–20 meters with appropriate generator capacity. For even smaller operations or lower budgets, some processors use blast freezers built into insulated containers, but these still need marine-grade electrical and seawater cooling if operated at sea.
Q3: Do I need a marine engineer to install a freezer on my boat?
A: Yes — for the installation of seawater cooling lines, electrical integration with the vessel's generator and switchboard, and structural mounting that won't stress the deck or affect stability. The freezer supplier should provide the equipment, layout drawings, and commissioning support. A local marine engineer or shipyard should handle the vessel-side integration. Never attempt a DIY installation of shipboard refrigeration — it's a safety and insurance risk.
Q4: How do marine freezers handle different power supplies on different boats?
A: Marine freezers are designed with flexible power input configurations. We match the compressor motor, pump motor, and control voltage to your vessel's specific electrical system — whether that's 380V/50Hz, 440V/60Hz, or DC-based systems. For hydraulic plate freezers, the compressor can often be driven by the vessel's main engine via a PTO (power take-off) instead of an electric motor, saving generator capacity for other uses. Tell us your vessel's power specs, and we'll configure accordingly.
Q5: What certifications should a marine freezer have?
A: At minimum, the equipment should be built in an ISO 9001 factory, carry CE certification, and have electrical components rated to IP65 or higher for marine environments. Depending on the vessel's flag state and classification society, additional certifications may apply — such as DNV, BV, ABS, or RINA type approval for pressure vessels and electrical systems. If you're insuring the vessel, your insurer may also require class-approved equipment. We provide full documentation packages and can work with your classification society as needed.
Q6: How long does it take to get a custom marine freezer built and installed?
A: Typical timelines: 6–10 weeks for design and manufacturing (depending on complexity and current production queue), plus 2–4 weeks for shipping (depends on destination port), plus 2–3 weeks for onboard installation and commissioning. Total: approximately 12–16 weeks from order to operation. Rush options may be available. We recommend planning marine freezer procurement during the vessel's scheduled yard period or off-season to minimize downtime.
The sea doesn't compromise. Neither should your freezer.
If you're outfitting a fishing vessel with freezing capability, don't start with a land machine. Start with a conversation. Tell us your vessel type, catch volume, target species, and power availability. We'll help you evaluate which freezer type — plate, spiral, tunnel, IQF, or LN2 — actually fits your operation at sea, and what a marine-grade version of that system requires.
